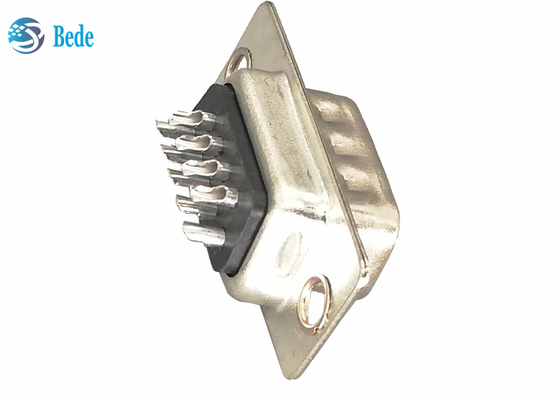

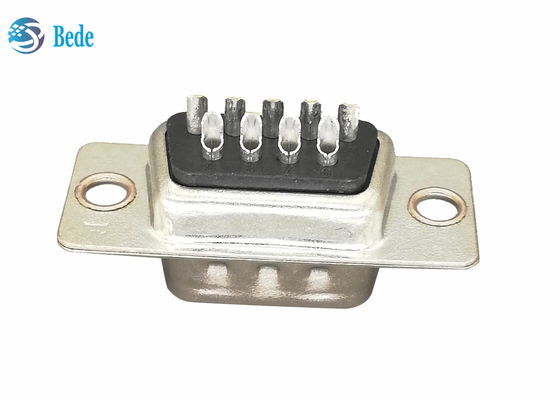

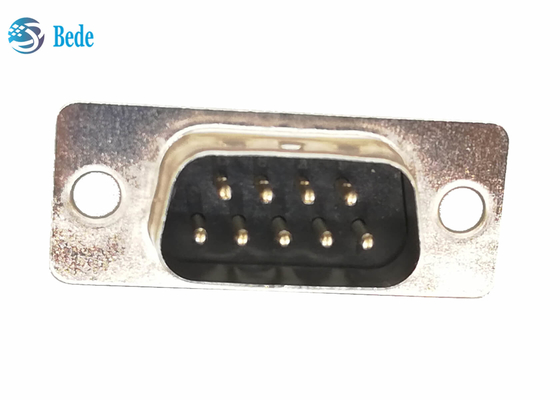

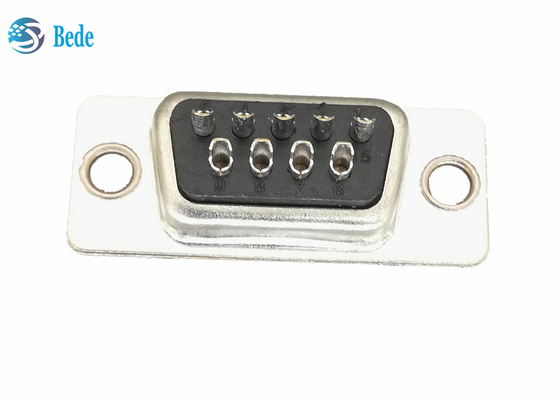

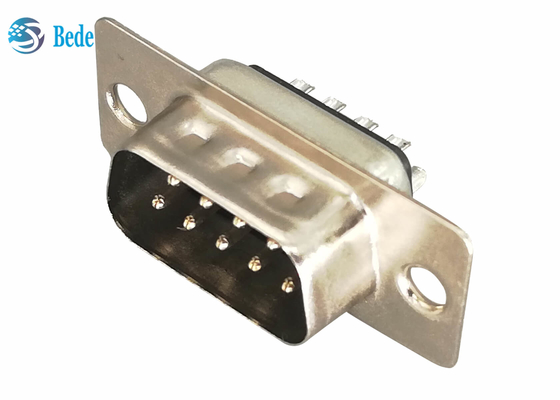

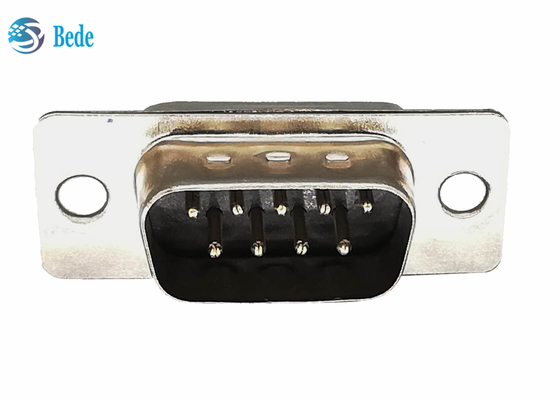

9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS

9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS

Brand Name: BEDE
Model Number: DB-9-M
MOQ: 200pcs
Price: negotiation
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Supply Ability:
800 pcs per day
Highlight:

9Pin D Sub Connectors

,

Male DB9 D Sub Connectors

,

Welding Type 9 pin d sub connector

Product Description

D Sub Connector 9 Pin Male DB9 Plugs Welding Type





Description:

  1. DB9 plug for computers, communications, medical equipment, cables, aviation, digital, machinery and equipment, game consoles
  2. The shell is SPCC, the front is nickel plated 1.0um, the rear is galvanized 3um
  3. The pins material is brass, the contact part is plated with gold 3um, and the welding part is galvanized 3~5um
  4. Insulation part is PBT plastic + 30% glass fiber, flame retardant grade UL94-V0

9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS 0

Electrical properties

  1. ​Rated current: 5A
  2. Withstand voltage: 1000Vr.m.s, 1mA, 60S
  3. Insulation resistance: ≥5000MΩ
  4. Contact resistance: ≤15mΩ

Mechanical behavior

  1. Insertion force: ≤3.3N/pin
  2. Pull out force:  ≥0.3N/pin
  3. Mechanical life: ≥50 times

Environmental parameters

  1. Operating temperature: -40 ~ 100 ℃
  2. welding temperature: 245±5℃, 10S

9 Pin Male DB9 Plugs D Sub Connectors Welding Type CE RoHS 1
