OEM/ODM Industrial Plug And Socket Coupler Reliable And Efficient 63A / 125A 3 Pins

Product Description:

Industrial Plug Socket is a type of high current plugs and sockets with 3 phase industrial socket, which is designed to meet the standard of ICE60309. It is made of copper and provides excellent protection against dust, water and other elements, with an IP67 rating. This product comes with a wide range of current options, ranging from 16A to 125A. It is suitable for industrial applications and is durable and reliable in providing high current power. In addition, it is also designed to be user-friendly and ease of installation. Industrial Plug Socket is an ideal choice for industrial power supply and provides a reliable and efficient solution for industrial applications.



Features:

• Product Name: 3 phase Industrial Socket
• IP Rating: IP67
• Size: Standard ICE60309
• Pins: 3pins (2P+E)
• Voltage: 220V-250V
• Color: Blue And Grey
• High Current Plugs And Sockets
• Industrial Plug Socket

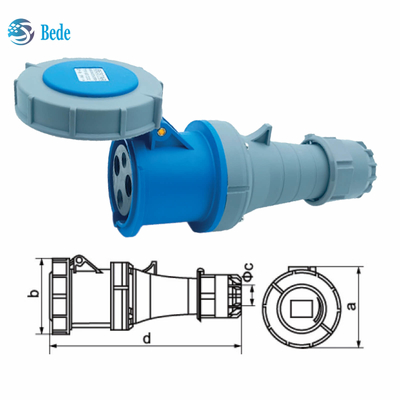

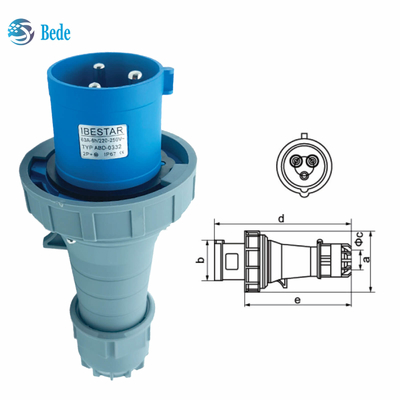

• Size as follows

plug			Socket
	63A	125A		63A	125A
a	120mm	128mm	a	114mm	115mm
b	75mm	86mm	b	117mm	130mm
Φc	37mm	50mm	Φc	37mm	47mm
d	251mm	270mm	d	270mm	305mm
e	195mm	216mm



Technical Parameters:

Property	Details
Current	63A/125A
Standard	ICE60309
Packing	Carton
Application	Industrial
Material	Copper
Shell Material	PP
Color	Blue And Grey
Voltage	220V-250V
Brand	OEM/ODM
Product Name	Industrial Plug Socket
Keywords	Single phase Industrial Socket, Industrial Plug And Socket, Industrial Plug Socket



Applications:

Industrial Plug Socket is a high current plug and socket made of copper with Brand Name BEDE and Model Number 63A/125A. It is certified with RoHS. The Minimum Order Quantity of Industrial Plug Socket is 60pcs and the Price is negotiable. It's Packaging Details are 30pcs per carton and Delivery Time is within 5 days after payment. The Payment Terms are T/T and the Supply Ability is 4000 sets per day. The Voltage is 220V-250V and Shell Material is PP. The Packing is Carton and the Application is Industrial.



Packing and Shipping:

Industrial Plug Socket Packaging and Shipping:

Industrial Plug Socket products are packaged in a box with dimensions of 32 x 23 x 15 cm. The box is made of strong cardboard and is sealed for extra protection. Each box contains an instruction manual, parts list and warranty information. The product is then shipped with a courier service, ensuring that it arrives in perfect condition.



FAQ:

Q1: What is the brand name of this Industrial Plug Socket?
A1: The brand name of this Industrial Plug Socket is BEDE.

Q2: What is the model number of this Industrial Plug Socket?
A2: The model number of this Industrial Plug Socket is 16A/32A/63A/125A.

Q3: Where is this Industrial Plug Socket manufactured?
A3: This Industrial Plug Socket is manufactured in China.

Q4: What is the certification of this Industrial Plug Socket?
A4: This Industrial Plug Socket is certified with RoHS.

Q5: How many pieces are there in the minimum order quantity?
A5: The minimum order quantity for this Industrial Plug Socket is 60pcs.
