5Pins Industrial Plug Socket 63A 125A Waterproof IP67 IEC60309 Wall Mounting

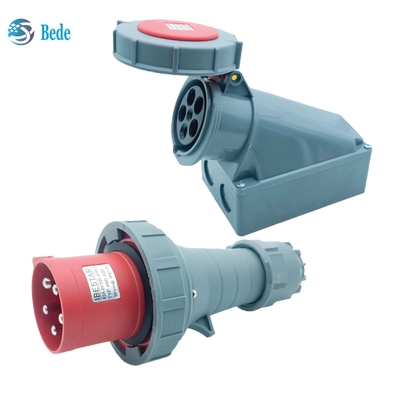

Large Image : 5Pins Industrial Plug Socket 63A 125A Waterproof IP67 IEC60309 Wall Mounting

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	ABD0352 / ABD1352

Payment & Shipping Terms:

Minimum Order Quantity:	30 pcs
Price:	negotiation
Packaging Details:	30pcs per carton
Delivery Time:	within 3 days after payment
Payment Terms:	T/T
Supply Ability:	5000 pcs per day

Contact Now

Detailed Product Description

Product Name:	Commando Connector	Color:	Red And Blue
Rated Current:	63 And 125 Amp	Rated Voltage:	220~380/ 240~415V
Phase:	3P+N+E	Protection Grade:	IP67
Highlight:	copper industrial plug socket , waterproof industrial plug socket , 5 pin industrial plug and socket

5Pins Industrial Plug Socket 63A 125A Waterproof IP67 IEC60309 Wall Mounting

Industrial connectors are mainly used for power connection and input and distribution. They are widely used in factory power configuration, mechanical equipment, construction sites, chemicals, electronics, ports, docks, mines, water supply and drainage and sewage treatment projects, etc.
Industrial plugs are generally 3 pins(P+N+E), 4 pins(3P+E), and 5 pins(3P+N+E). The current is generally divided into 4 types: 16A, 32A, 63A, and 125A. The protection level can be divided into IP44 and IP67. There are 3 types of sockets: coupler, wall mount, and panel mount
This page introduces our 5pins 63A and 125A industrial plugs and matching wall mount sockets.

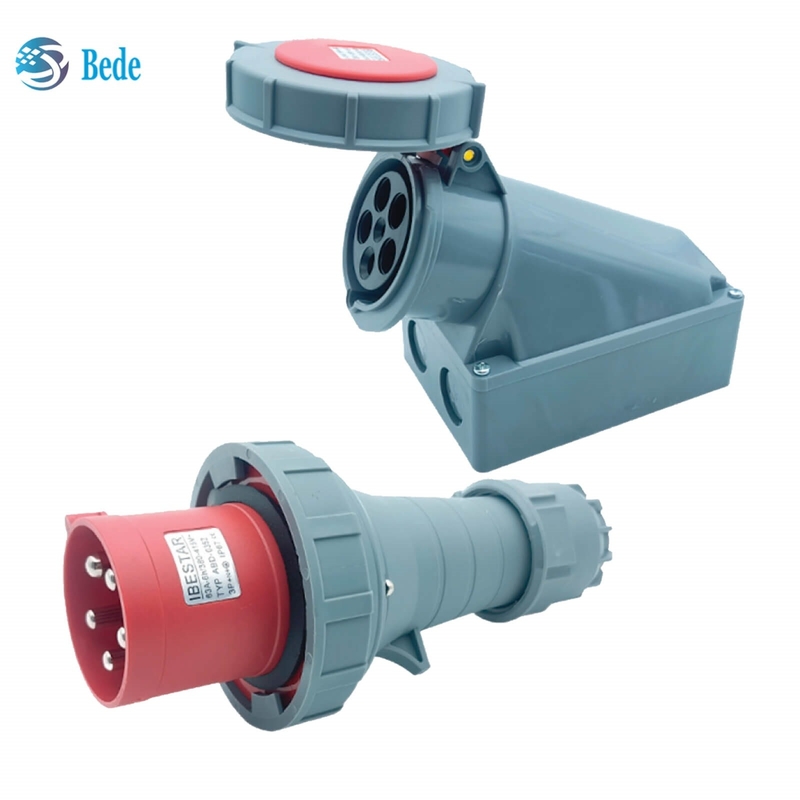

5Pins Industrial Plug Socket 63A 125A Waterproof IP67 IEC60309 Wall Mounting 0

Quick details of the industrial plug and socket

Material	rated current	rated voltage	Executive standard	No. of poles	protection Grade
PP+brass	63/125Amp	380~415V	IEC60309	5 Pins	IP67

size of the industrial plug

rated current	a / mm	b / mm	Φc	d	e	cabel's cross-section mm²
63Amp	116	75	37	251	187	6~16
125Amp	128	86	47	276	200	16~50

5Pins Industrial Plug Socket 63A 125A Waterproof IP67 IEC60309 Wall Mounting 1

size of the industrial socket

rated current	a / mm	b / mm	c	cabel's cross-section mm²
63Amp	165	118	252	6~16
125Amp	175	150	360	16~50
