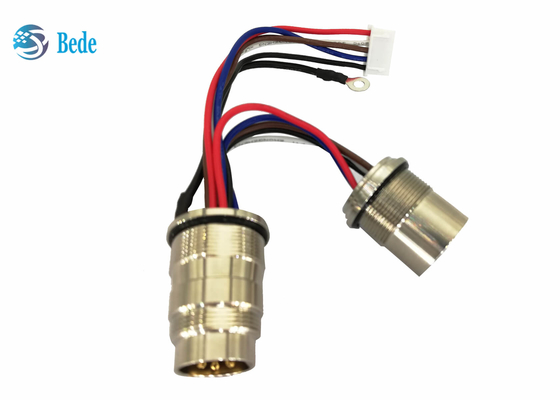

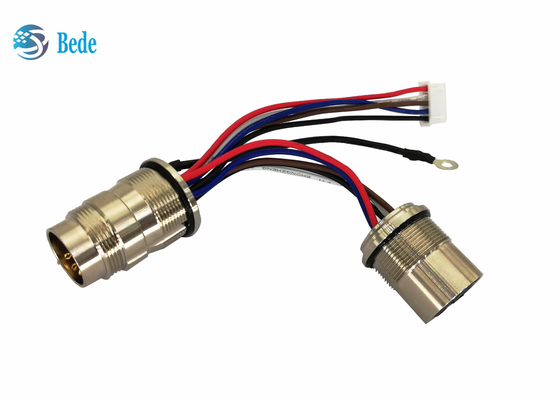

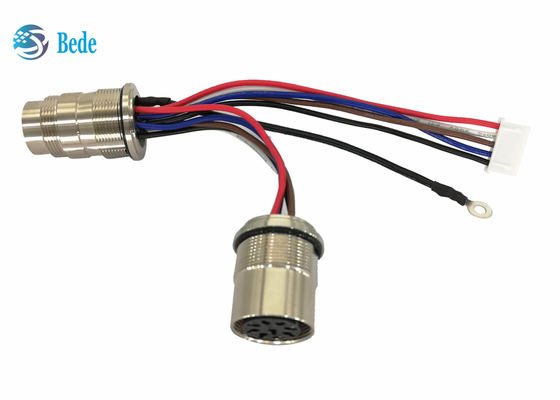

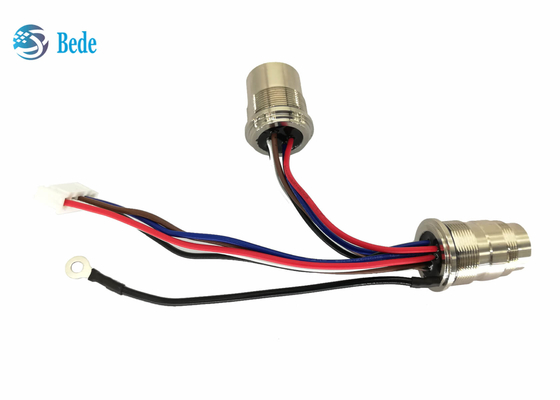

IP68 RET Cable AISG Fixed Connector AISG C485 A5 Male To A6 Female Connector
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS UL |
| Model Number | AISG-A5-A6 |
| Minimum Order Quantity | 150 pcs |
| Price | negotiation |
| Packaging Details | packing in sealing PE bags each and then 100 pcs packing in a carton |
| Delivery Time | within 5 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 3000 pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shell Material | Copper With Nickel Plated | Pins Material | Brass With Gold Plated |
|---|---|---|---|
| Waterproof | IP68 | Length | 100±5mm |
| Rated Current | 5A | Rated Voltage | 32V |
| High Light | IP68 RET Cable,AISG C485 RET Cable,IP68 AISG Fixed Connector |
||
Product Description
RET Cable AISG Fixed Connector AISG C485 A5 Male Connetor To A6 Female Connector
Descripation
- AISG Internal Cable Connector
- AISG C485 standard fixed connector A5 style to A6 style
- With 18AWG ground wire and ground ring, wire length 100±5mm or customized
- With a XH-5H connector, 22AWG cable, length 100±5mm, this connector can be customized as needed, and the cable length can be customized
- waterproof IP67, rated current 3A and rated voltage 32V
Wiring method
| wire color | A5 male connector | A6 Female connector | XH-5Y connector |
| pins | pins | pins | |
| Red color | 1 | 1 | 1 |
| / | 2 | 2 | / |
| white color | 3 | 3 | 2 |
| / | 4 |
4 |
/ |
| brown color | 5 | 5 | 3 |
| blue color | 6 | 6 | 4 |
| balck color | 7 | 7 | 5 |
| / | 8 | 8 | / |
| 18AWG wire | out shell | / | ground ring |
about the size of male connector and female connector, please refer to Antenna Interface Standards Group Standard No. AISG C485
