Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length

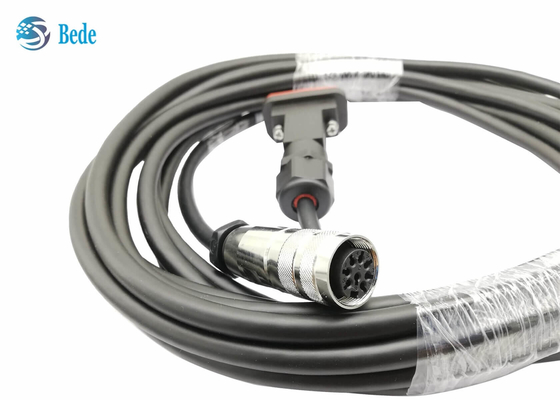

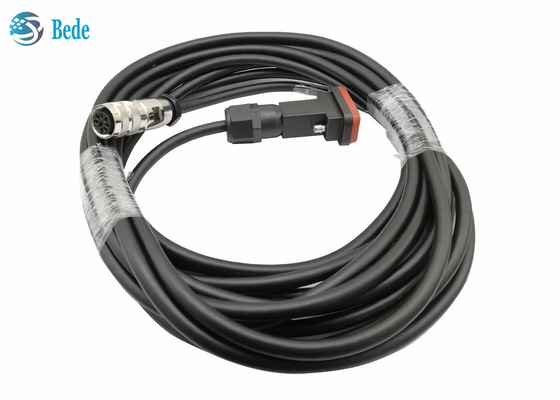

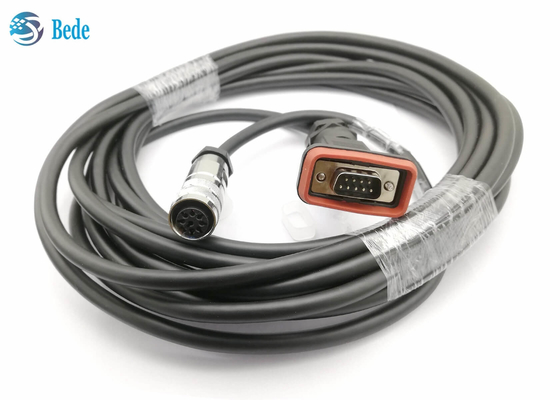

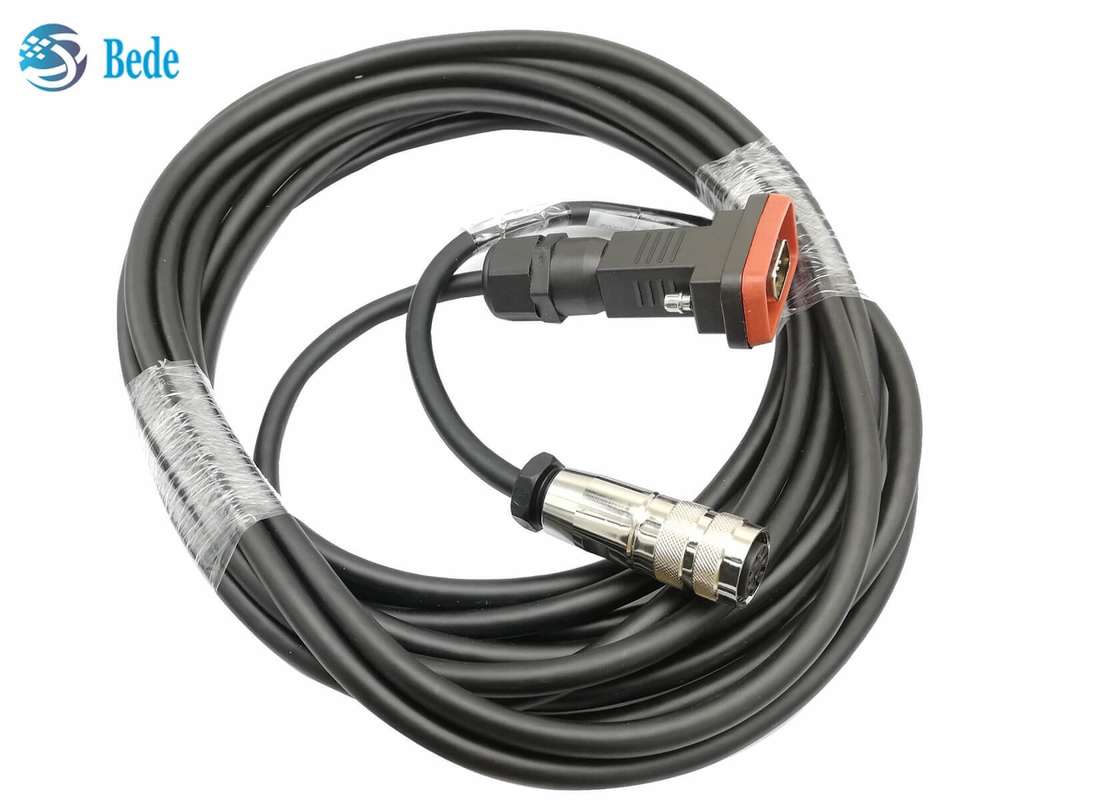

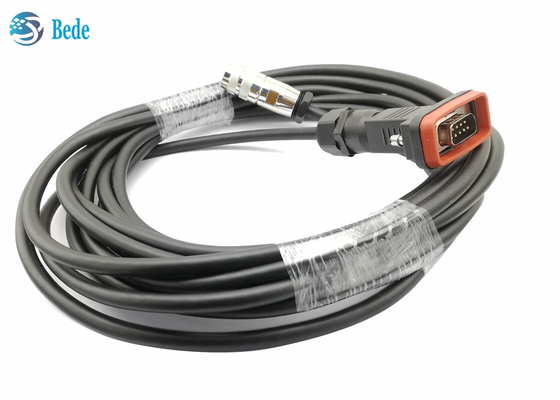

Large Image : Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	8-M16-BD9-5

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiate
Packaging Details:	packing with PE bag, 30pcs per carton, 15kgs per carton
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	8000 pcs per week

Contact Now

Detailed Product Description

Length:	5 Meters	Standard Resistance:	≤5mΩ
Operating Voltage:	AC 250V	Center Conductor:	C5210 Ni50u"/Au3u"
Operating Temperature:	-40℃ +85℃	Water Proof:	IP68
Fireproof:	UL94-V0	Insulation Resistance:	5MΩ
Highlight:	HUAWEI AISG Cable , AISG Cable 5 Meters

HUAWEI AISG Cable, DB9 Male to M16 8 Pin Female 5 Meters Length

Technical requirements for wires

Conductor: Tinned copper wire, 17*0.16, rated voltage 300V

Shielding layer: Aluminum-magnesium alloy, the coverage rate more than 85%

Shell: PVC material, resistant to UV aging, UL1581 1000 hours

Electrical Characteristics
Withstand voltage: 850V
Contact impedance: <5mΩ
Insulation resistance: 500MΩ
Rated voltage: 300V

Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length 0

Mechanical properties
Insertion force: 6PIN-45N max;
Pulling force: 6PIN-45N max;
Center Conductor Thrust: 6 lbs Min
Coupling Nut Capacity: 80 lbs (350 N) Min
Coupling Nut Torque: 10 lbs-in Min
Waterproof requirements: IP67
Mechanical life: 500 times

Environmental requirements
Temperature Cycling: -40°C +85°C (IEC 60068-1)
Fire rating: UL94-V0
Neutral salt spray: 168H
