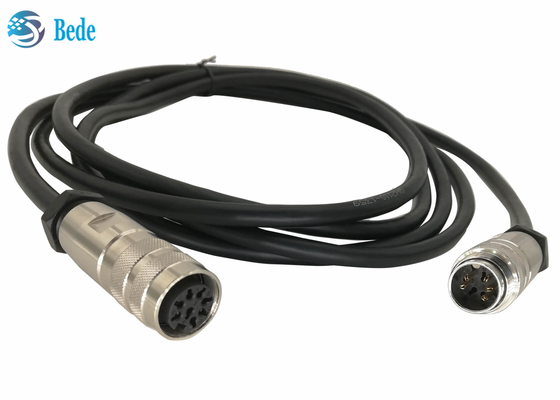

MCU To RCU RET Control Cables 0.5~100 Meter 5 Pin AISG Male To Female

MCU To RCU RET Control Cables 0.5~100 Meter 5 Pin AISG Male To Female

Brand Name: BEDE
Model Number: RET-5-M-F-L
MOQ: 50 pcs
Price: negotiation
Packaging Details: packing with PE bag each, 20pcs pre carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
AISG, RoHS
Style:
AISG C091
Color:
Black
Length:
Customized, By Meter Or Foot
Conductors:
5 Pins
Cable Diameter:
8mm
Salt Spray:
720H
Operating Temperature:
-40℃ ~ +85℃
UV Aging:
168 Hours
Supply Ability:
1500 pcs per day
Highlight:

RET Control Cables 100 Meter

,

RET Control Cables 5Pin

,

AISG C091 RET Control Cables

Product Description

RET Control Cables 0.5~100 Meter 5 Pin AISG Male To Female For MCU To RCU



What is RET Cables:

    Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. The RET Cables is generally used on the base station antenna, used for feeding signal and power from the controller to the Remote Control Unit (RCU), making remote adjustments to the angle of the antenna. It consists of two AISG connectors with IP67 degree, one type of male end and another type of female end, connected by an RVVP cable.

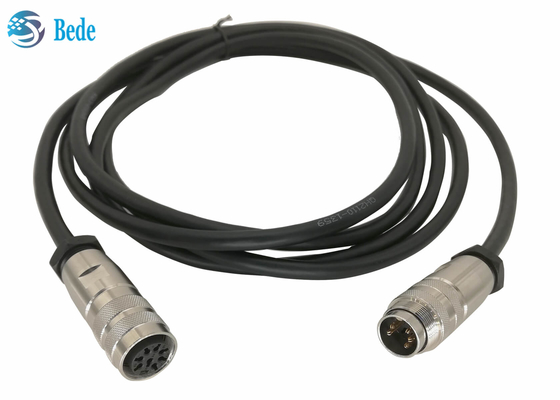

  MCU To RCU RET Control Cables 0.5~100 Meter 5 Pin AISG Male To Female 0





Quick details:



AISG Connector aplicable temperature Voltage Insulation resistance Contact resistance
5 pin, AISG female to male -40℃ ~ +80 ℃ 300V ≥5MΩ ≤0.005Ω



Applications:



  • Remote Electrical Tilt (RET) System Applications or Remote Control Unit (RCU)
  • Antenna Control Unit for AISG Compliant Systems
  • Tower Mounted or Masthead Amplifiers with AISG Interface (TMA)
  • Network Control with Integrated AISG Interface
  • Antenna Base Stations
  • Separate connectors (male and female)or cables are on sale also

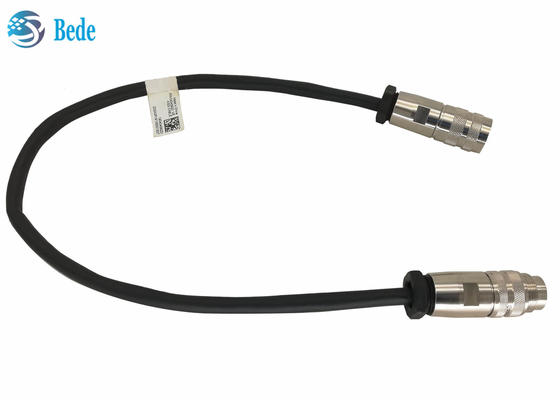

MCU To RCU RET Control Cables 0.5~100 Meter 5 Pin AISG Male To Female 1




Features:



1.  720 h salt spray resistance, connectors and cables no abnormality

2.  IP68 protection without tape

3.  EMC with 30 db

4.  Female end 8 pin layout , male end 5 pins

5.  Gauges materials is gold plated copper, good electrical conductivity and low contact resistance

6.  Length: 0.5~100 meters, or by feet, customized available



About the wire:

  • 4 cores cables, the following two specifications are for your opinion, the second price is lower
  • 3x 0.75mm2(20 AWG) stranded (power) 2 x 0.25mm2(23 AWG) twisted pair (data) 5 cores cable 8mm (0.26 inch) diameter
  • 3 x 0.41mm2(21AWG) stranded (power) 2 x 0.21mm2 (24 AWG)twisted pair (data) 5 cores cable 8mm (0.26 inch) diameter
  • The outer jacket is available in two materials for your opinion, PU or PVC, PU quality is better, PVC price is lower
  • Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%

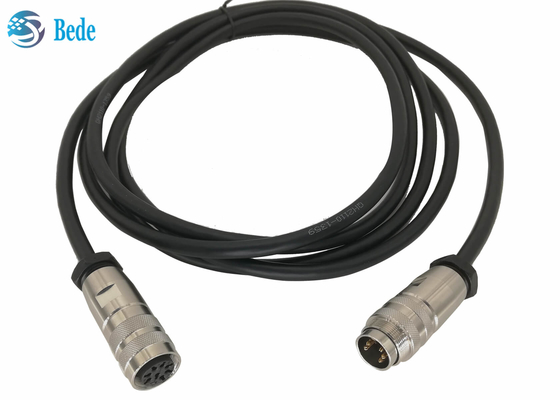

MCU To RCU RET Control Cables 0.5~100 Meter 5 Pin AISG Male To Female 2
