AISG C485 Free Connector Assembly Female End 8 Pins

AISG C485 Free Connector Assembly Female End 8 Pins
AISG C485 Free Connector Assembly Female End 8 Pins AISG C485 Free Connector Assembly Female End 8 Pins AISG C485 Free Connector Assembly Female End 8 Pins AISG C485 Free Connector Assembly Female End 8 Pins

Large Image :  AISG C485 Free Connector Assembly Female End 8 Pins

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE RoHS
Model Number: AISG -F-A
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Negotiate
Packaging Details: packing with PE bag, 10pcs per carton
Delivery Time: within 3 days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs per day
Detailed Product Description
Style: Waterproof Connector Waterproof: IP68
Materials: Brass, SS, POM, PBT Insulation Resistance: 5MΩ
Contact Resistance: 0.005Ω Poles: 5 / 6 / 8 Pins
Highlight:

C485 Free Connector

,

AISG Free Connector

AISG C485 Free Connector Assembly Female End 5 6 8 Pins M16 Circular Connectors



Description

   All components of AISG circular connector female end for assembling AISG control cable, RET cable, or other industrial control cables with M16 circular connector.

  Female pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a. The female pins 2, 4 and 8 are not in use for AISG applications, but it must be ensured that fully loaded male connectors according DIN EN 61076-2-106:2012-04 variant 08-a are pluggable.

  This connector has excellent waterproof performance and can cope with complex natural environment. In addition to AISG use, it can also be used in industrial control, aviation and navigation and other fields.



  • Produced according to AISG C485.
  • Pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a.
  • Insulation resistance: ≥5MΩ
  • Contact resistance:≤5mΩ

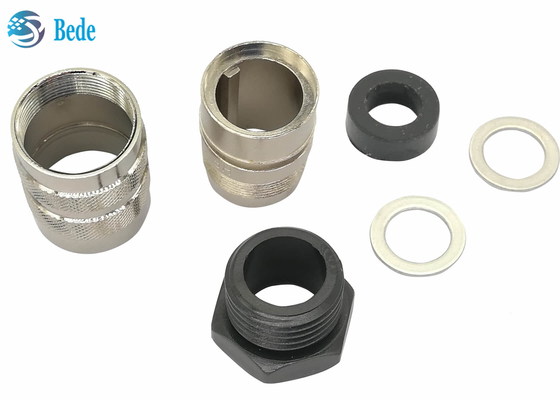

AISG C485 Free Connector Assembly Female End 8 Pins 0

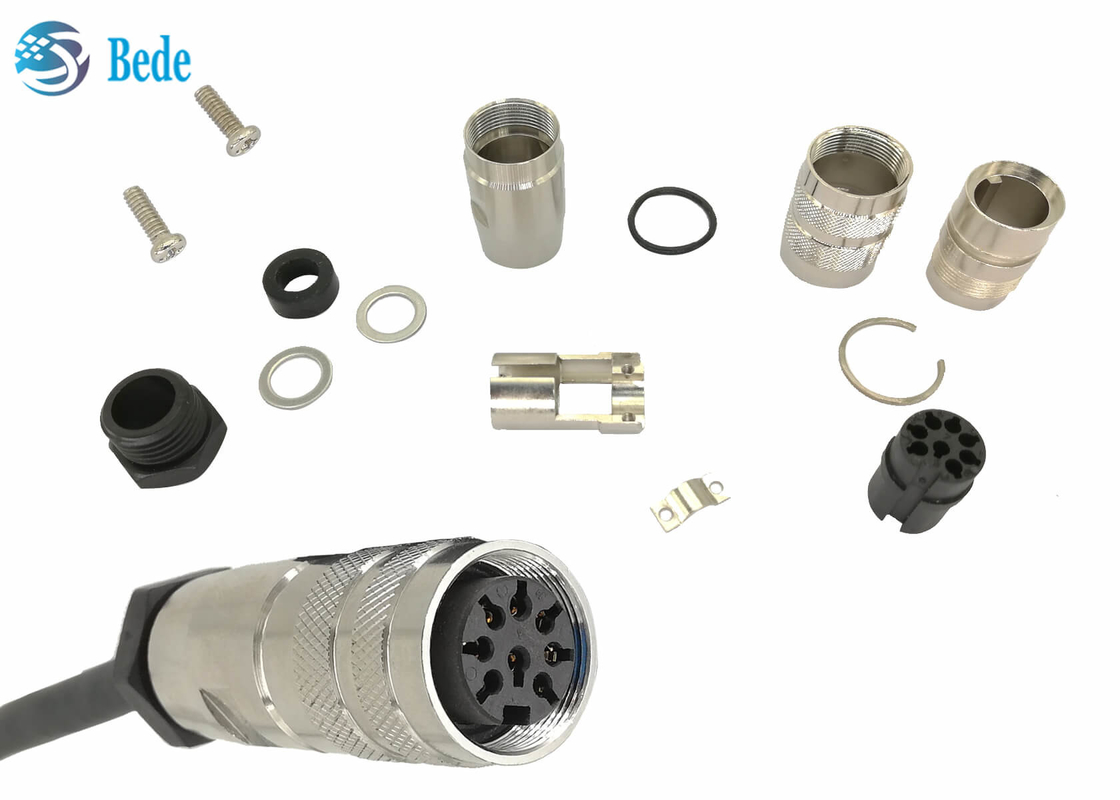

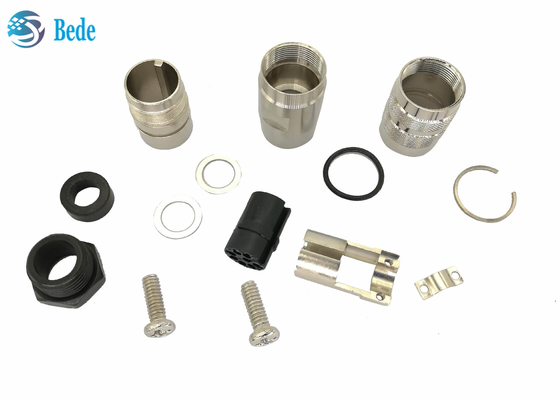

All components



1. Housing, material copper, nickel plated

2. Washes, stainless steel materials

3.Nuts, POM plastic, with the O-ring together for gripping cables and waterproof

4. Insulator, PBT plastic, housing of gauges

5.O-rings, Silicone material, for waterproof sealing,suitable for 6~9mm diameter cables

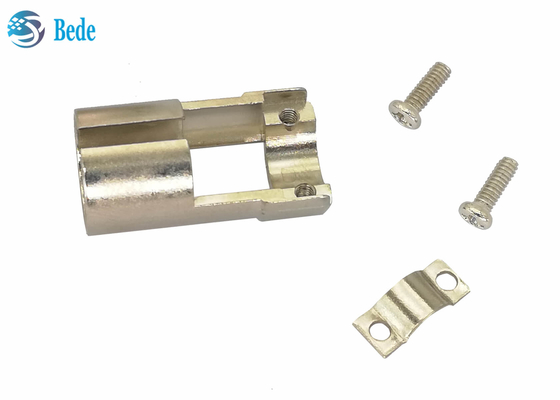

6.Cable fixing kits, Zinc alloy material, screws are stainless steel

7.Gauges / Contactor, copper materials, gold plated, good electrical conductivity and low contact resistance, stamping or welding on the wire, you can choose freely, please contact us before ordering

AISG C485 Free Connector Assembly Female End 8 Pins 1



AISG C485 Free Connector Assembly Female End 8 Pins 2
