AISG C485 Male End 8 Pins M16 Waterproof Connector / Free Connector Assembly
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | AISG -M-A |
| Minimum Order Quantity | 300 |
| Price | Negotiate |
| Packaging Details | packing with PE bag, 10pcs per carton |
| Delivery Time | within 3 days after payment |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1500 pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Style | Waterproof Connector | Waterproof | IP68 |
|---|---|---|---|
| Materials | Brass, SS, POM, PBT | Insulation Resistance | 5MΩ |
| Contact Resistance | 5mΩ | Poles | 8 Pins |
| High Light | AISG M16 waterproof connector,Male M16 waterproof connector,Male Free Connector Assembly |
||
Product Description
AISG C485 Free Connector Assembly Male End 8 Pins M16 Circular Connectors
Description
All components of AISG circular connector male end for assembling AISG control cable, RET cable, or other industrial control cables with M16 circular connector.
- Produced according to AISG C485.
- Pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a.
- Insulation resistance: ≥5MΩ
- Contact resistance:≤5mΩ
- The male pins 2, 4 and 8 are not in use for AISG applications, pin 1 shall not be used for new constructions. For other purposes, please contact sales.

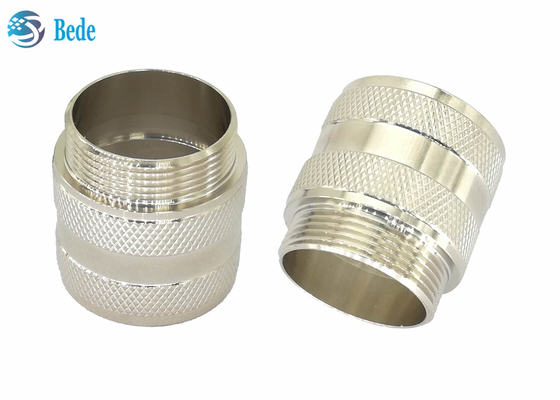

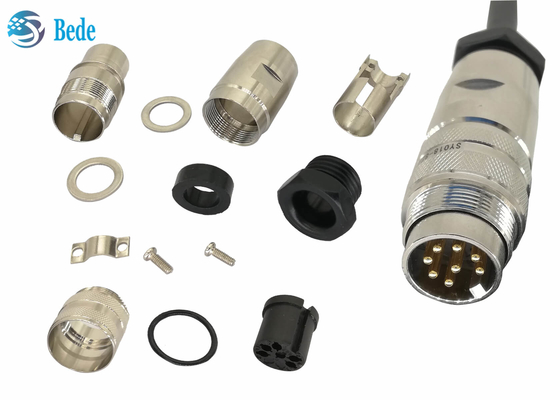

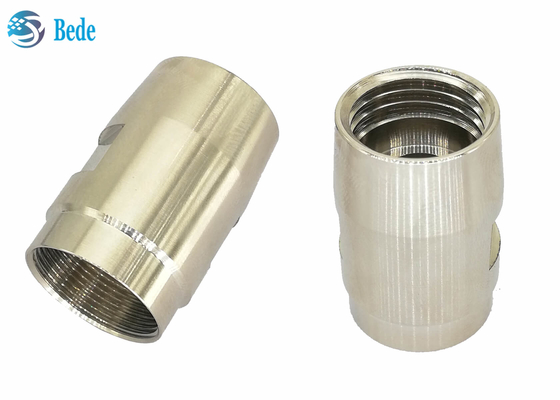

All components
1. Housing, material copper, nickel plated

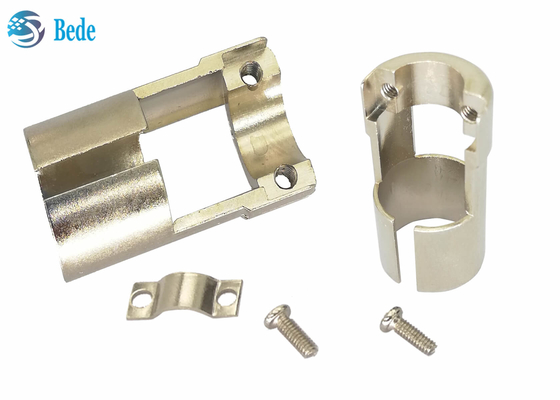

2. cable fixing kits, Zinc alloy material, screws are stainless steel
3.O-rings, Silicone material, for waterproof sealing
4. Nuts, POM plastic
5.Insulator, PBT plastic
6.Washes, stainless steel materials
7.Contactor, copper materials, gold plated
