RET Cables Assembly 10 Meter 6 Pins AISG Male To Female For Antenna Base Stations

RET Cables Assembly 10 Meter 6 Pins AISG Male To Female For Antenna Base Stations

Brand Name: BEDE
Model Number: RET-6-M-F-3
MOQ: 50 pcs
Price: negotiation
Packaging Details: packing with PE bag each, 20pcs pre carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
AISG, RoHS
Style:
AISG C091
Color:
Black
Length:
10 Meter, Customized Available,
Conductors:
8 Pins
Cable Diameter:
7mm
Rated Voltage:
300V
Operating Temperature:
-40℃ ~ +85℃
UV Aging:
168 Hours
Supply Ability:
1500 pcs per day
Highlight:

RET Cables 10 Meter

,

AISG C091 RET Cables

Product Description

RET Cable Assembly 10 Meter 6 Pins AISG Male To Female For Antenna Base Stations



What is RET Cables:

    Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. The RET Cables is generally used on the base station antenna, making remote adjustments to the angle of the antenna. It consists of two AISG connectors with IP67 degree, one type of male end and another type of female end, connected by an RVVP cable.

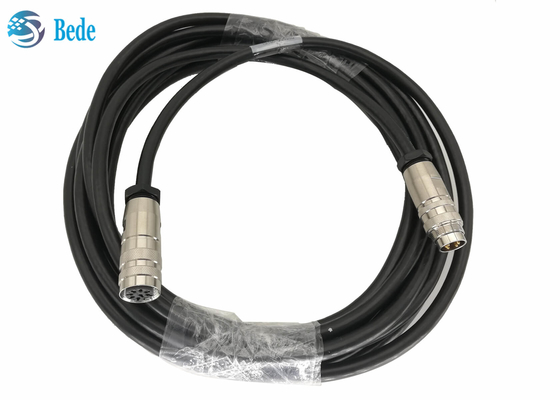

RET Cables Assembly 10 Meter 6 Pins AISG Male To Female For Antenna Base Stations 0

Applications:



  • Remote Electrical Tilt (RET) System Applications or Remote Control Unit (RCU)
  • Antenna Control Unit for AISG Compliant Systems
  • Tower Mounted or Masthead Amplifiers with AISG Interface (TMA)
  • Network Control with Integrated AISG Interface
  • Antenna Base Stations

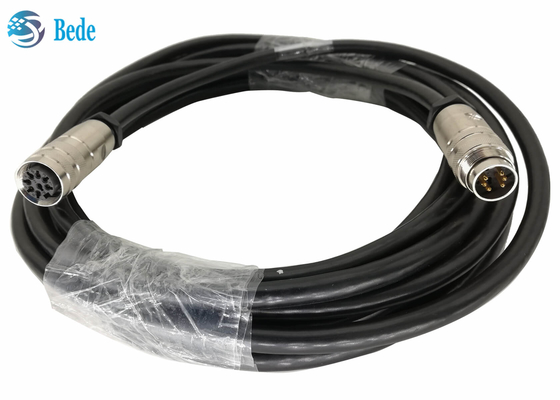

RET Cables Assembly 10 Meter 6 Pins AISG Male To Female For Antenna Base Stations 1

Quick details:



AISG Connector aplicable temperature Voltage Insulation resistance Contact resistance
6 pin, AISG female to male -40℃ ~ +80 ℃ 300V ≥5MΩ ≤5mΩ



Features:



1.  720 h salt spray resistance

2.  IP68 protection without tape

3.  EMC with 30 db

4.  8 pin layout (4, 5 or 6 contacts loaded)

5.  Gauges materials is gold plated copper, good electrical conductivity and low contact resistance

6.  Length: 0.5~100 meters, or by feet, customized available



About the wire:

  • 3x 0.75mm2(20 AWG) stranded (power) 2 x 0.25mm2(23 AWG) twisted pair (data) 5 cores cable 7mm (0.26 inch) diameter
  • 3 x 0.41mm2(21AWG) stranded (power) 2 x 0.21mm2 (24 AWG)twisted pair (data) 5 cores cable 7mm (0.26 inch) diameter
  • The above two cable sizes for your opinion
  • The outer jacket is available in two materials for your opinion, PU or PVC
  • Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%

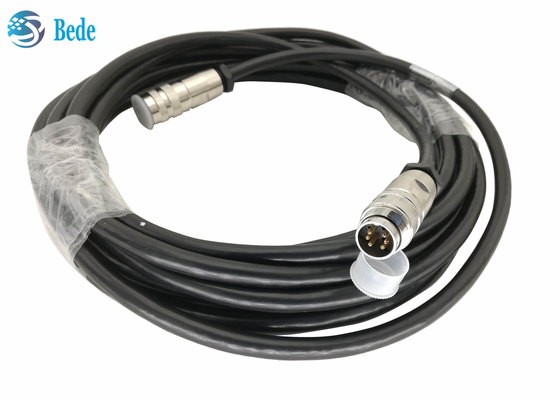

RET Cables Assembly 10 Meter 6 Pins AISG Male To Female For Antenna Base Stations 2
