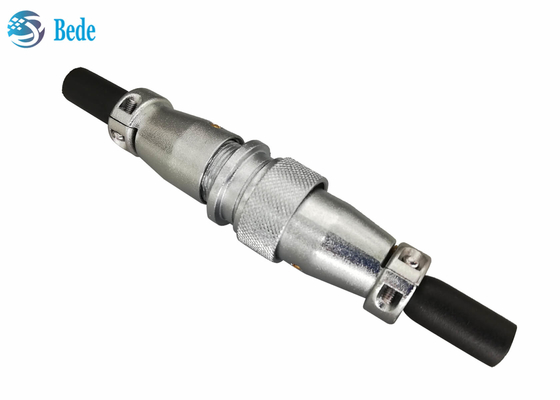

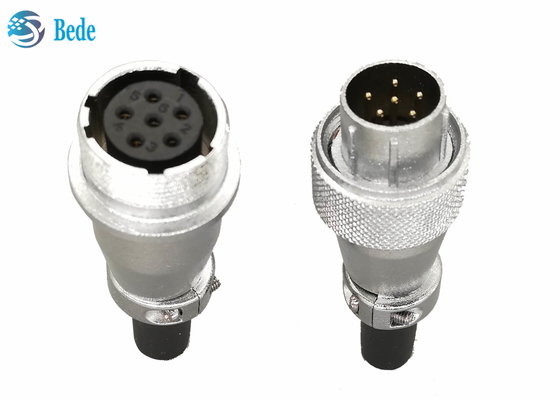

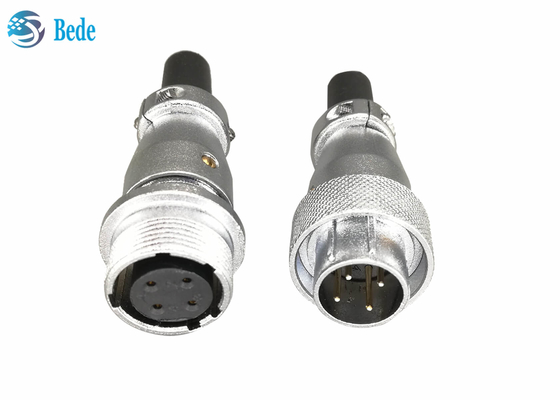

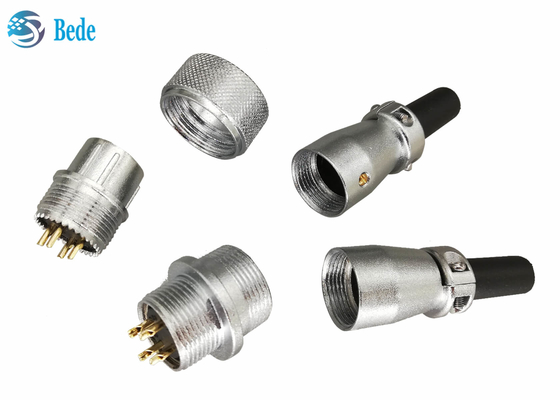

Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V

Large Image : Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	WS16-D-4/5/6

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	negotiation
Packaging Details:	100set per carton,packing in PE bag each
Delivery Time:	4 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	4000sets per day

Contact Now

Detailed Product Description

Housing Material:	Zinc Alloy With Chrome Plated	Contact Material:	Brass With Gold Plated
Insulation Materials:	PPS	Pins:	4 / 5 / 6
Rated Current:	5A	Rated Voltage:	500V
Highlight:	round 4 pin circular connector female , 4 pin female connector round 500V , docking connectors 500V

WS16 Circular Connector Male And Female Docking Connectors 4 Pins 5A 500V

Description

Military grade male and female docking connectors,
Housing material is zinc alloy, chrome plated,
Insulation material is PPS plastic
Contact material is copper, gold plated
Applicable temperature range: -40~+85℃

Product Size

Female connector: ΦD=M18 L=47.5mm Φd max=10mm

Male connector: ΦD=21mm L=44.8mm Φd max=10mm

Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V 0

Electrical data

pins	rated current	rated voltage	contact hole diameter	contact resistance	wire section (AWG)
4 / 5/ 6	5A	500V	φ1.0	5mΩ	18

Similar product

This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested

Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V 1
