3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp

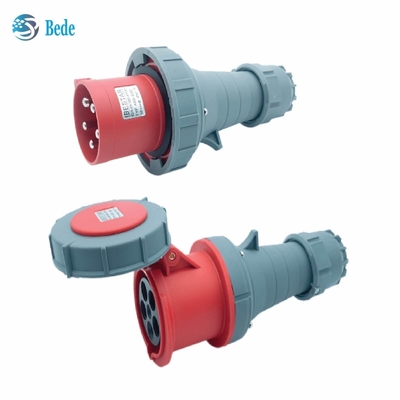

Large Image : 3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	RoHS CE
Model Number:	ABD0152+ABD2152

Payment & Shipping Terms:

Minimum Order Quantity:	30pcs
Price:	negotiation
Packaging Details:	Plugs and sockets packed separately, 30pcs per carton
Delivery Time:	within 3 days
Payment Terms:	T/T, Western Union
Supply Ability:	5000 kits per day

Contact Now

Detailed Product Description

Color:	Red	Phase:	3 Phases
Pins:	3P+N+E	Rated Voltage:	380~415V
Rated Current:	63A/125A	Pins Material:	Brass Pins
Highlight:	copper industrial plug socket , waterproof industrial plug socket , 5 pin industrial plug and socket

3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp

Technical data of the industrial plug socket

Material	rated current	rated voltage	Executive standard	No. of poles	protection Grade
PP+brass	63/125Amp	380~415V	IEC60309	5 Pins	IP67

Size of the industrial plug

rated current	a / mm	b / mm	Φc	d	e	cabel's cross-section mm²
63Amp	116	75	37	251	187	6~16
125Amp	128	86	47	276	200	16~50

3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp 0

Size of the industrial socket

rated current	a / mm	b / mm	c / mm	d / mm	cabel's cross-section mm²
63 Amp	114	117	37	270	6~16
125 Amp	115	130	47	305	16~50

3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp 1
