| Brand Name: | BEDE |
| Model Number: | ZVE599-S2P |
| MOQ: | 200pcs |
| Price: | Negotiation |
| Packaging Details: | According to quantity |
| Payment Terms: | T/T |

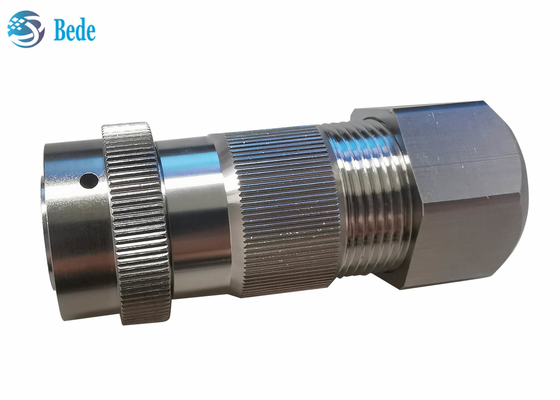

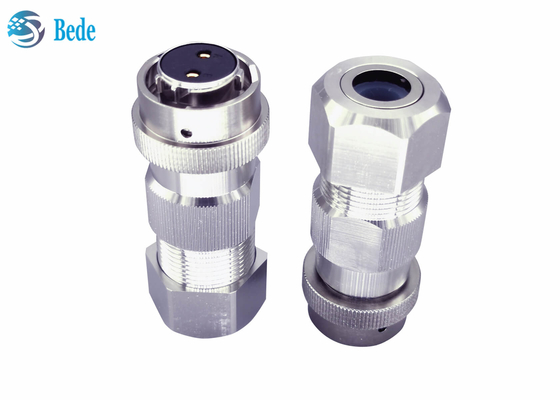

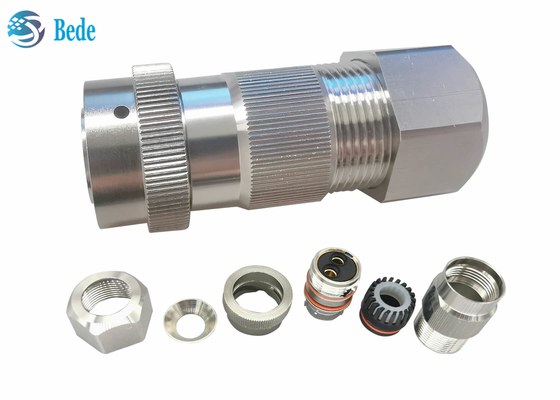

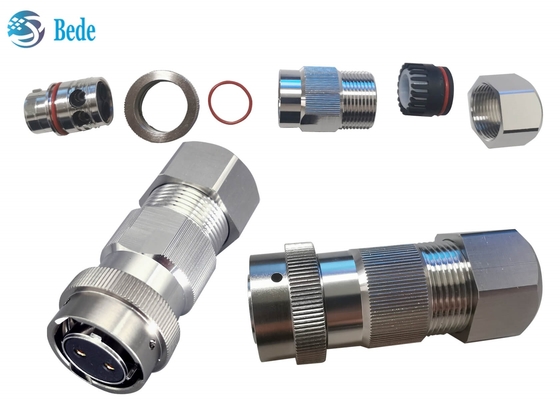

AISG Power Connector AISG Power Plug For ZTE Ericsson HUAWEI Mobile Phone Base Station
1. Product use: Used for power supply of mobile phone signal base stations and connection between devices
2. Product Name: Power Plug
3. Model: ZVE599-S2P
4. Maximum external size:40mm×40mm×80mm
5. Technical parameters:
5.1. Electrical data of the AISG power connetor:
| Rated Current (A) | 40A/Pin |
| Rated Voltage (V) | 60 DC |
| Withstanding Voltage (V) | 1500 |
| Contact resistance (mΩ) | ≤1 |
| Insulation resistance (MΩ) | ≥5000 |
5.2 Mechanical data of the AISG power connetor:
| Single pin insertion force | ≤10 |
| Single needle separation force (N) | ≥1.39 |
| Mechanical Life | 500 Cycles |
| Safety information | N/A |
| Cable Pull-Off Force (N) | N/A |
5.3Materials and treatments of the AISG power connetor:
| Parts | Materials | Treatment |
| shall | Brass | nickel-plated |
| conductor | Brass | Ni 1.27um and Au 0.3um |
| insulator | PBT | N/A |
5.4Working Environment of the AISG power connetor:
| Temperature | -55℃~+85℃ |
| Allowable humidity | ≤80% |
| Vibration | 10~2000~10Hz 147m/s2 |
| Shock | 490m/s2 |
| Salt spray resistance | 576hr |
| Protection class | IP67 |
6.Other infomations of the AISG power connetor:
6.1pins: 2Pin
6.2: RoHS compliant
6.3: Matching connectors: ZVE599-P2R
6.4:Wiring type: Screw crimp, suitable for wire diameter range 12 ~ 8AWG
6.5: Outlet cable diameter:11~18mm
7. Packaging and storage:
7.1Packaging norms: Adopt special box for packaging.
7.2 storage requirements:
The products packed into boxes should be stored in the warehouse with ambient temperature of -10℃---+40℃, relative humidity below 80% and no acidic, alkaline or other corrosive gases in the surrounding air
|
|
