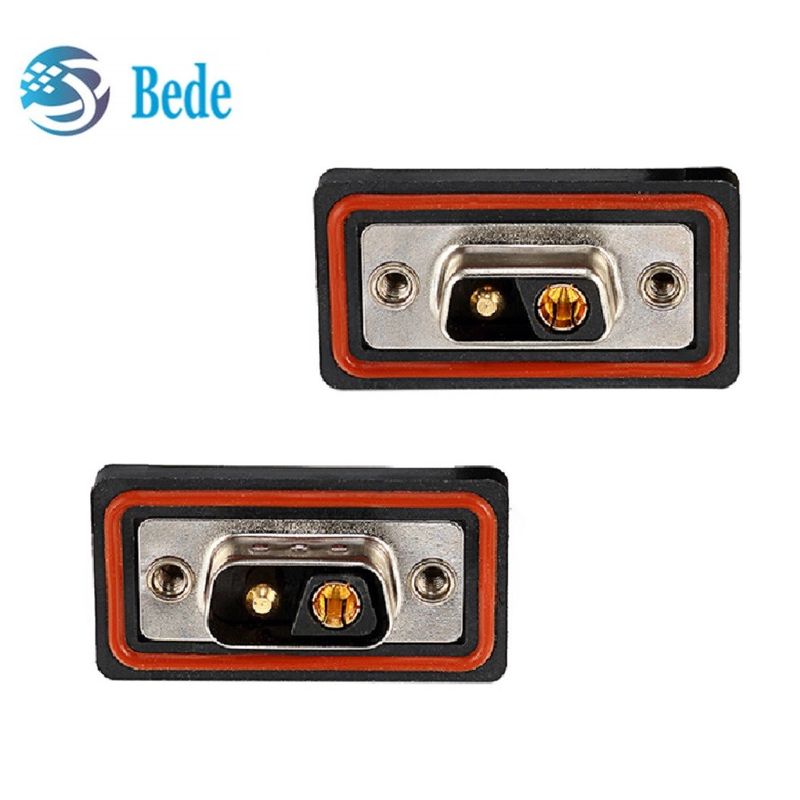

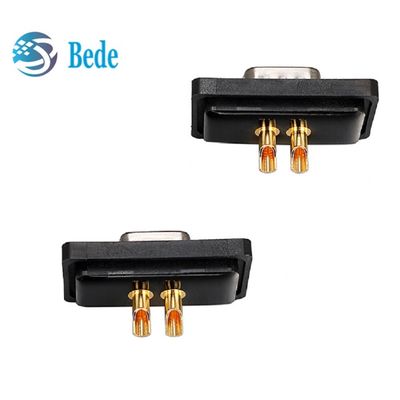

2W2 Male and Female Mixed D-Sub Waterproof Combination Power Connectors

2W2 Male And Female Mixed D-Sub Waterproof Combination Power Connectors

Description

    2V2 d-sub female and femeal mixed power connector, or named combination d sub connectors, make the different wire terminations are possible, allows signal, high current & high voltage runing in a single connector.
    This 2V2 d-sub connector series is fully dedicated to water resistant applications, which fulfills the rigorous requirements of IP 67, aimed at equipment placed in harsh environments, indoors and outdoors, where connectors are exposed to moisture, dust and dirt.

Materials and Finishes

1. Housing: Steel SPCC-SD, nickel or tin plated
2. Connector Insulator: PBT thermoplastic, 30% glass filled, UL 94V-0 rated
3. High frequency contacts: Copper alloy material, gold plated, all contacts are machined copper alloy, full plated
4. Bracket/screw: Copper alloy material, nickel plated.

Electrical Characteristics

1. High Power Contact Current: 10, 20, 30 or 40 Amps.
2. Working Voltage: 300V.
3. High Power Contact Resistance: 2.7 milliohms max.
4. Dielectric Withstand Voltage: 1000VAC, 1 minute.
5. Insulation Resistance: 2000 MΩ min.
6. Temperature Rating: -55℃ ~ +125℃
