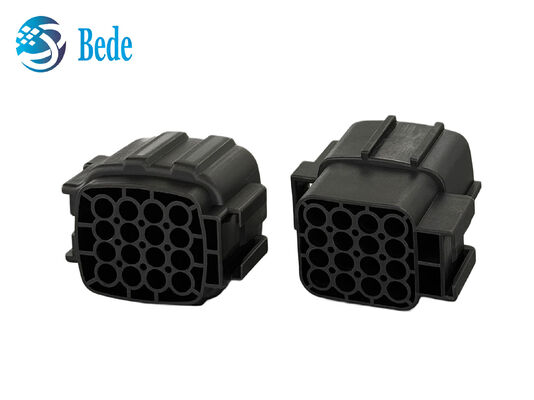

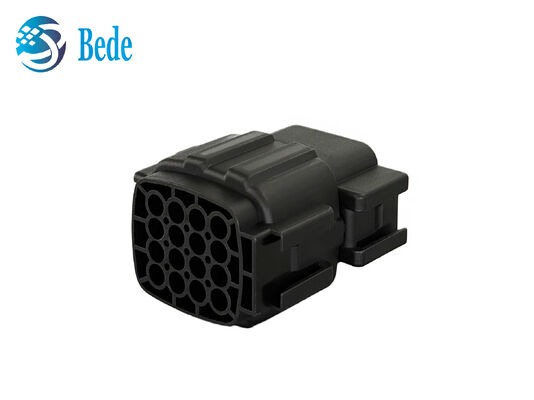

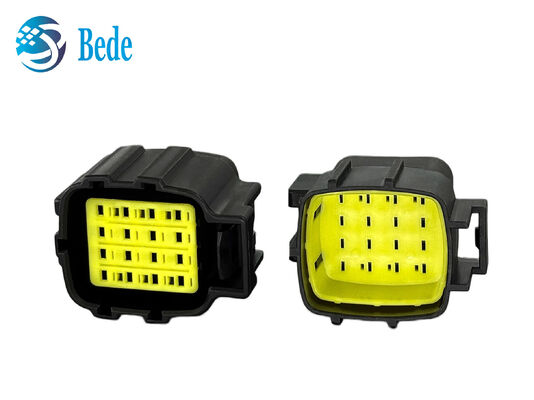

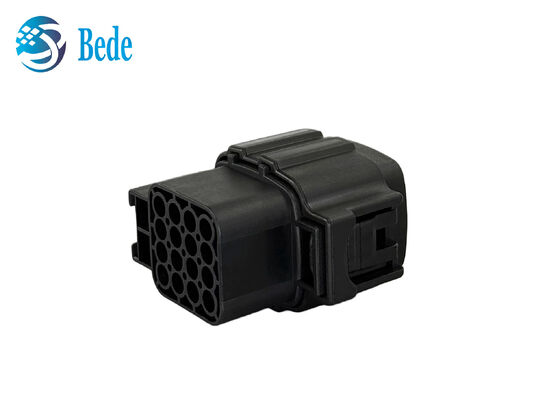

2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket

2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket
2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket 2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket 2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket 2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket

Large Image :  2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: RoHS
Model Number: 2822638-1 / 174663-2
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiation
Delivery Time: base on quantities
Payment Terms: T/T,Western Union
Supply Ability: 3000Pcs per day
Contact Now
Detailed Product Description
Series: 070 ECONOSEAL MARK-2 Number Of Positions: 12
Number Of Rows: 2 Housing Material: PBT
Temperature Range: -30°C ~ +105°C Flame Retardancy: UL 94 V-2
Connector Shape: Rectangular

2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket
Product Overview

The 2822638-1 and 174663-2 are matching, wire-to-wire automotive connector components from TE Connectivity. They belong to the Econoseal J - Mark II / 070 Series, designed for harsh environments where exposure to moisture, dust, and vibration is expected.

Specifications
Specification 2822638-1 174663-2
Number of Positions 12 12
Connector & Housing Type Housing for Female Terminals Housing for Male Terminals
Operating Voltage 24 VDC 12 VDC
Rated Current 11 Amps (max) 11 Amps (max)
Contact Size 1.8mm 1.8mm
Temperature Range -30°C to +105°C -30°C to +105°C
Flame Retardancy UL 94 V-2 UL 94 V-2
Connector Mounting Type Cable Mount (Free-Hanging) Cable Mount (Free-Hanging)
Product Features
  • 12-Position Layout: Formatted in a symmetrical 2-row by 6-column grid configuration
  • Waterproof Environmental Sealing: Leverages secondary individual wire seals to isolate contacts from moisture
  • Integrated Double-Lock Plate: Uses secondary locks to prevent terminals from backing out
  • Anti-Mismatch Shroud: Keyed plastic profile prevents reverse or improper mating orientation
  • High-Vibration Latching: Exterior flexible plastic arm locks securely onto the mating cap
Applications
  • Automotive Sensors
  • Motorcycle Harnesses
  • Lighting Systems
  • Industrial Equipment
2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket 0
Customization Services
  1. Custom connector plastic parts, such as insulator, nut, housing etc.
  2. Custom connector internal conductors, male and female pins, with silver or gold plating
  3. Custom connector accessories, such as silicone rings and dust covers
