174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket

174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket
174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket 174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket 174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket 174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket

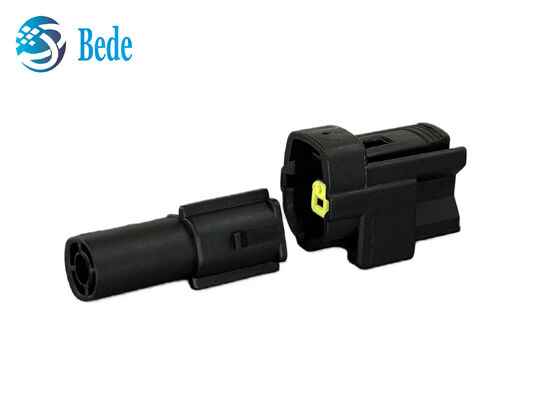

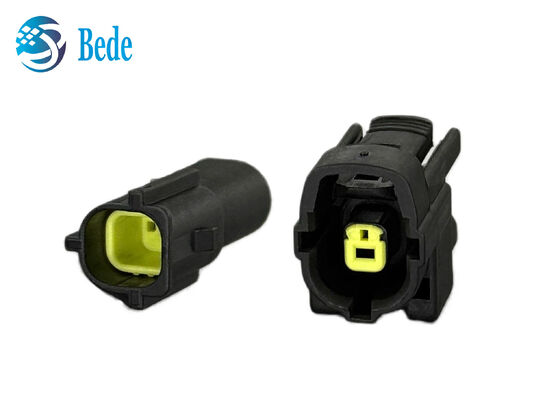

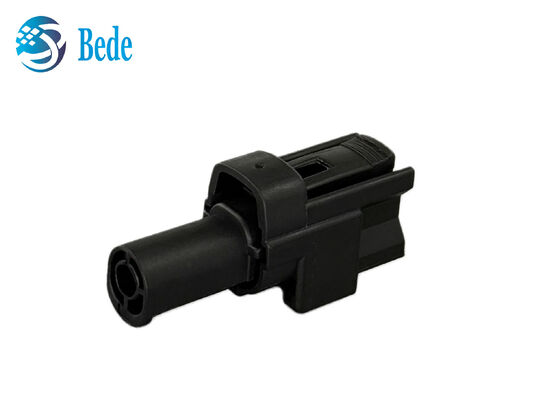

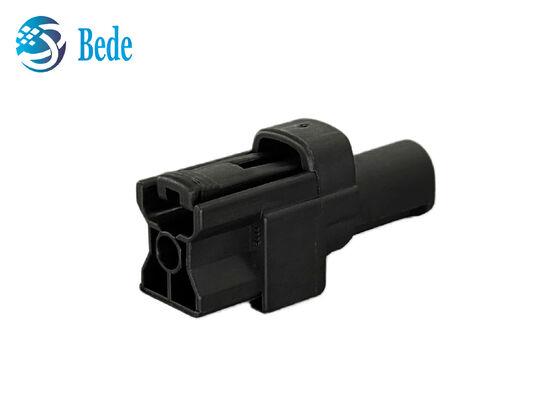

Large Image :  174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: RoHS
Model Number: 174879-2 / 174877-2
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiation
Delivery Time: base on quantities
Payment Terms: T/T,Western Union
Supply Ability: 3000Pcs per day
Contact Now
Detailed Product Description
Series: Econoseal J Series Mark II Number Of Positions: 1
Number Of Rows: 1 Housing Material: PBT
Temperature Range: -30°C ~ +105°C Flame Retardancy: UL 94 V-2
Connector Shape: Rectangular

174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket

The TE Connectivity 174879-2 and 174877-2 are mating halves of a 1-position, waterproof wire-to-wire connector system from the Econoseal J Series Mark II+ (.070 / 1.8mm) family. They are engineered for high-vibration, harsh-environment automotive sensor connections.

Specifications
Specification 174879-2 174877-2
Number of Positions 1 1
Connector & Housing Type Housing for Male Terminals Housing for Female Terminals
Operating Voltage 12 VDC 12 VDC
Rated Current 18.5 Amps (max) Dependent on inserted wire gauge
Contact Size 1.8mm 1.8mm
Temperature Range -30°C to +105°C -30°C to +105°C
Flame Retardancy UL 94 V-2 UL 94 V-2
Connector Mounting Type Cable Mount (Free-Hanging) Cable Mount (Free-Hanging)
Product Features
  • Terminal Position Assurance (TPA): Built-in secondary locks secure the pins inside the housing. This prevents terminal back-out caused by engine vibrations.
  • Automotive-Grade PBT: Molded from premium Polybutylene Terephthalate (PBT) plastic. This offers exceptional structural strength and chemical resistance against oil, gasoline, engine coolant, and brake fluid.
  • Temperature Stability: Designed to withstand engine bay heat cycles ranging from -30°C to +105°C
Applications
  • Primary Automotive Sensor Systems
  • The Charging System (Battery & Alternator)
  • The Exhaust System (Smog & Fuel Economy)
174879-2 1-Pin TE Connectivity/AMP 174877-2 Automotive Connector Housing Plug and Socket 0
Customization Services
  1. Custom connector plastic parts, such as insulator, nut, housing etc.
  2. Custom connector internal conductors, male and female pins, with silver or gold plating
  3. Custom connector accessories, such as silicone rings and dust covers
