M16 Cable To Cable Docking Connectors 2~10 Pin 4~7A 200V

Large Image : M16 Cable To Cable Docking Connectors 2~10 Pin 4~7A 200V

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	GX-16-2~10-D

Payment & Shipping Terms:

Minimum Order Quantity:	160 sets
Price:	negotiation
Packaging Details:	packing in PE bag,80sets per carton
Delivery Time:	within 5 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	7800 sets per day

Contact Now

Detailed Product Description

Rated Current:	4~7A	Working Voltage:	200V
Applicable Temperature:	-45~+75℃	Applicable Cable:	Φ7.5mm
Wiring Method:	Welding	Connect Style:	Male To Female
Contact Resistance:	3mΩ Max	Insulation Resistance:	1500MΩ Min
Highlight:	M16 Cable To Cable Docking Connectors , cable docking connector 10Pin , m16 circular connectors 2Pin

GX16 Aviation Connector Cable To Cable docking connectors 2~10 Pin 4~7A 200V

Description

1.Aviation connector set, male and female, wire-to-wire connection
2.Applicable cable outer diameter 7.5mm
3.Applicable temperature -20~75℃
4.Only buy female connectors or male connectors available
5.Shell material is nickel plated zinc alloy, silver color, black color can be customized when more than 500pcs
6.Contact material is brass, silver plated for high electrical conductivity and low contact resistance

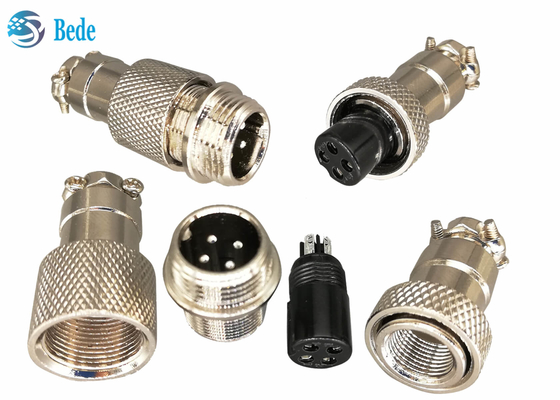

M16 Cable To Cable Docking Connectors 2~10 Pin 4~7A 200V 0

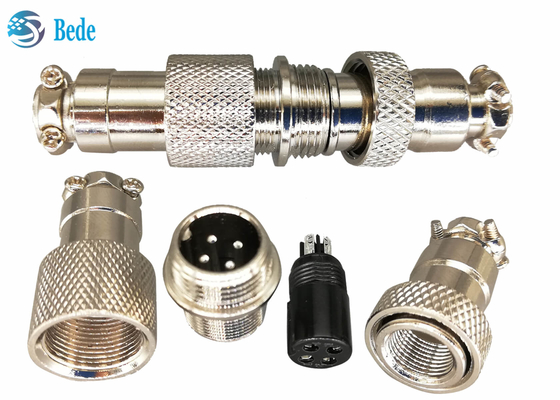

M16 Cable To Cable Docking Connectors 2~10 Pin 4~7A 200V 1

Electrical data

pins	2 pin 3pin	4pin	5pin	6 7 8 9 10 pin
rated current	7A	5A	5A	4A
working voltage/ V	200	200	200	200
Contact resistance	3mΩ max
Insulation resistance	1500MΩ
Withstand voltage	1500V
Contact hole size Φmm	2.45	2.45	2.00	1.15

All familier

About GX16 aviation connector, M16 circular connectors, all models as following, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting

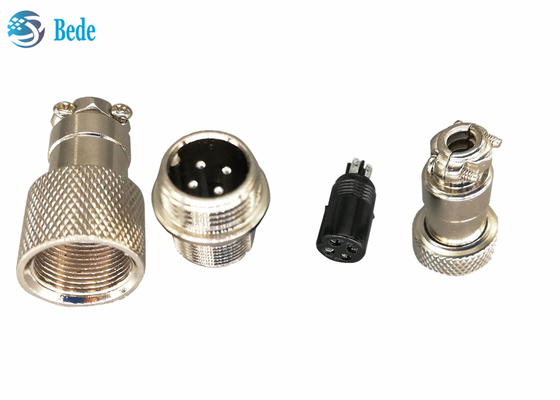

M16 Cable To Cable Docking Connectors 2~10 Pin 4~7A 200V 2
