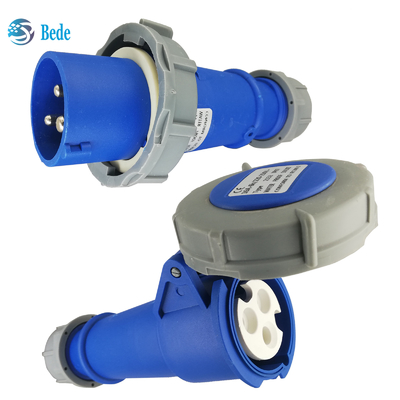

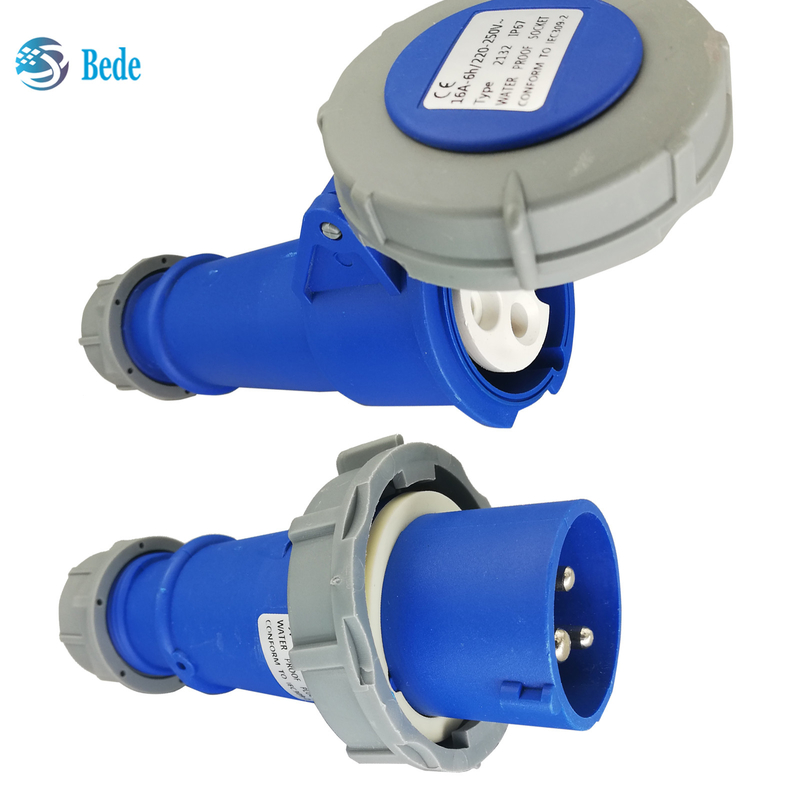

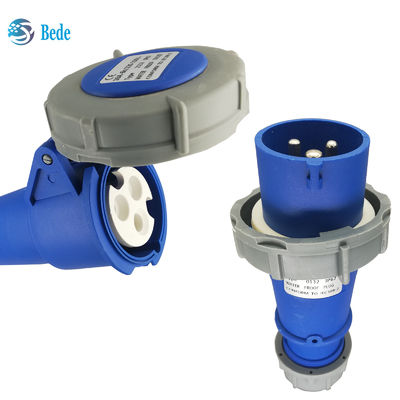

Single Phase 3pin Industrial Plug Socket - with Standard ICE60309 220~250V 32Amp
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Blue And Grey | Pins | 3pins (2P+E) |
---|---|---|---|
Standard | ICE60309 | Contact Material | Copper |
Shell Material | PP | Product Name | Industrial Plug Socket |
IP Rating | IP67 | Type | Wire Docking |
High Light | Single Phase Industrial Plug Socket,ICE60309 Industrial Plug Socket,32Amp industrial plug and socket |
32A IP67 3Pin plug | ABD0232 | |
---|---|---|
32A IP67 3Pins docking socket | ABD2232 |
Product Description:
Industrial Plug Socket is designed to provide reliable connections for high current applications with superior quality and safety. It is highly durable and designed to meet the most demanding industrial requirements. It is made of durable materials and features a unique design that ensures a secure connection. It is available with 3 pins (2P+E) and comes in a variety of colors, including blue and grey. It is supplied in a carton for easy storage and transportation. Our Industrial Plug Socket is suitable for OEM/ODM brand and is ideal for a wide range of industrial applications. It is highly resistant to corrosion and offers superior performance with high current plugs and sockets.
Features:
- Product Name: Industrial Plug Socket
- Material: Copper
- Pins: 3pins (2P+E)
- Current: 32A
- Application: Industrial, Industrial Plug And Socket, single phase Industrial Socket, Industrial Socket, Industrial Plug Socket
- Size as follows
plug | Socket | ||
a | 99mm | a | 102mm |
b | 63mm | b | 102mm |
Φc | 10~20mm | c | 205mm |
d | 175mm | ||
e | 130mm |
Technical Parameters:
Parameters | Values |
---|---|
IP Rating | IP67 |
Product Name | Industrial Plug Socket |
Type | wire docking type |
Brand | OEM/ODM |
Standard | ICE60309 |
Packing | 30pcs per Carton |
Pins | 3pins (2P+E) |
Voltage | 220V-250V |
Current | 32A |
Material | Copper |
Applications:
BEDE Industrial Plug Socket is an ideal choice for industrial applications. It features a Brand Name of BEDE, a Model Number of 16A, a Place of Origin of China, a Certification of RoHS, a Minimum Order Quantity of 60pcs, a Price of negotiation, Packaging Details of 30pcs per carton, Delivery Time of within 5 days after payment, Payment Terms of T/T, Supply Ability of 4000 sets per day, Brand of OEM/ODM, Material of Copper, Application of Industrial, Current of 16A/32A/64A/125A and Voltage of 220V-250V.
Packing and Shipping:
Industrial Plug Socket Packaging and Shipping:
- The industrial plug socket will be securely packaged in a box or crate with appropriate padding.
- The box or crate will be labelled with the product description, its contents, and any other relevant information.
- The package will be sealed with tape to ensure that the contents remain secure during transit.
- The package will be shipped via a trusted courier service with full tracking and insurance.
FAQ:
Q1: What is the brand name of the Industrial Plug Socket?
A1: The brand name of the Industrial Plug Socket is BEDE.
Q2: What is the model number of the Industrial Plug Socket?
A2: The model number of the Industrial Plug Socket is 16A.
Q3: Where is the Industrial Plug Socket made?
A3: The Industrial Plug Socket is made in China.
Q4: Does the Industrial Plug Socket have any certifications?
A4: Yes, the Industrial Plug Socket is RoHS certified.
Q5: What is the minimum order quantity of the Industrial Plug Socket?
A5: The minimum order quantity of the Industrial Plug Socket is 60pcs.
