AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8

AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8
AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8 AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8 AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8 AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8

Large Image :  AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: RoHS
Model Number: 3-1437290-7/6437288-4
Document: 3-1437290-7 (1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiation
Delivery Time: base on quantities
Payment Terms: T/T,Western Union
Supply Ability: 3000Pcs per day
Contact Now
Detailed Product Description
Series: AMP SUPERSEAL 1.0 Pin: 26 Pin
Female Part No.: 3-1437290-7 Male Part No.: 9-6437287-8
Material: PA66+GF Housing, Tinned/gold-plated Copper Terminals Temperature Range: -40℃~+125℃
Waterproof Rating: IP65
Highlight:

26-Pin Automotive ECU Connector

,

3-Slots Automotive ECU Connector

,

Superseal Automotive ECU Connector

AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 6437288-4

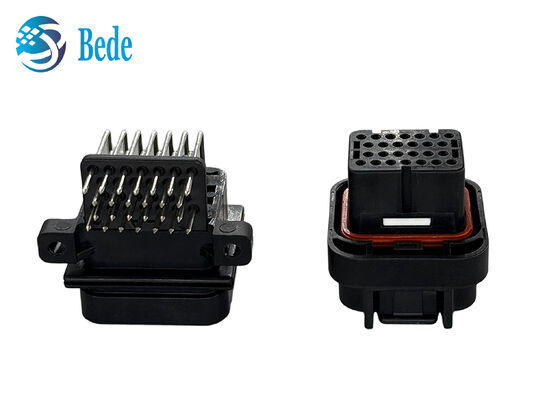

The 26-pin AMP SUPERSEAL 1.0 connector is engineered for harsh automotive environments. This complete assembly includes a right-angle male PCB pin header (for soldering to ECUs and control modules) and a female wire harness socket with an integrated red rubber seal, ensuring reliable wire-to-board connections and excellent sealing performance. Compact, durable, and high-performance, it is an ideal solution for demanding automotive electronic applications.
Product Specifications
Component Features TE Part Number Specification
Pin / Cavity Count 26 positions (24 signal positions + 2 dummy blind holes, 4-row layout: 6+7+7+6) - Multi-signal & power transmission
Contact Pitch 1.0mm - Standard SUPERSEAL 1.0 spacing
Rated Current Up to 15A per contact (compatible with 0.5~1.25mm² automotive wire harness) - High-current automotive application
Operating Temperature -40℃ to +125℃ - Engine bay suitable
Housing Material PA66+GF (glass-filled nylon, UL94 V-0 flammability rating) - High-strength automotive-grade material
Contact Material Copper alloy, gold-plated / tin-plated finish (anti-oxidation, enhanced conductivity) - High-reliability electrical contact
Mounting Style Male: right-angle PCB solder type; Female: wire harness crimp type - PCB & wire harness installation

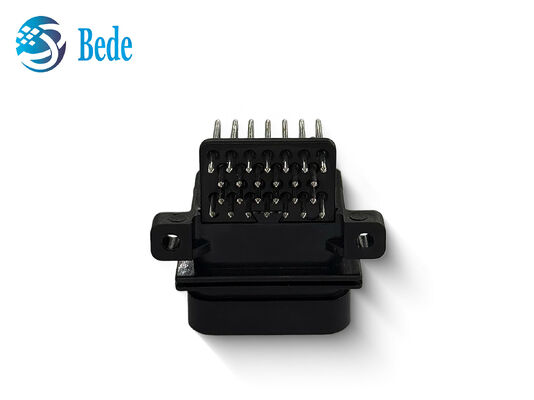

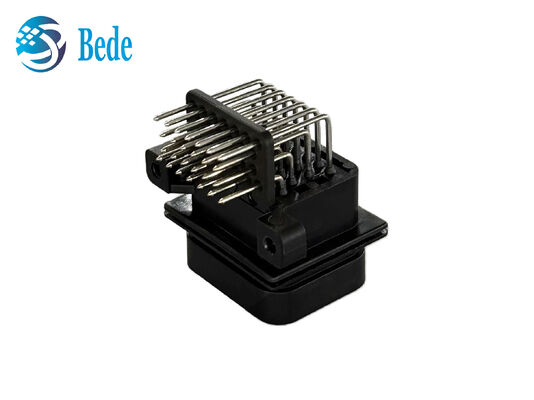

Male Header (PCB Side) Black PA66+GF, 26-pin right-angle pins, mounting holes  9-6437287-8 Right-angle PCB solder type

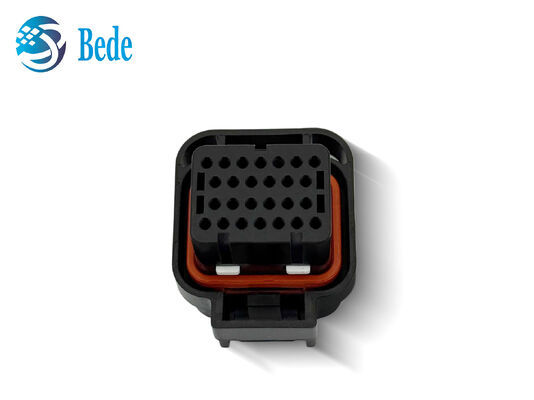

Female Housing (Wire Side) Black PA66+GF, silicone seal, 26-hole 4-row layout, latch 3-1437290-7 Wire-to-board, IP65
Product Features
  • Automotive-grade reliability, shockproof and temperature resistant
  • IP65 waterproof and dustproof for harsh environments
  • High-density 26-pin right-angle design saves ECU space
  • 100% compatible with TE/AMP original parts
  • Easy crimping and PCB soldering for mass production
AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 9-6437287-8 0
Applications
  • Traditional Fuel Vehicles: Wire harness connection for ECUs, transmission controllers, BCMs, ABS and other electronic control units
  • New Energy Vehicles: Board-to-wire connection for VCU, BMS, MCU, OBC and other core electronic control components
  • Other Fields: Industrial electronic control systems (construction machinery, commercial vehicles, agricultural machinery) requiring high protection and reliability
Installation: Solder male header to PCB; crimp female housing to harness and lock.
Notes: Avoid seal damage, align correctly, operate within rated specifications, and install in a clean environment.
