AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1

AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1
AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1 AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1 AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1 AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1 AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1

Large Image :  AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: RoHS
Model Number: 3-1437290-7/6437288-4
Document: 1473712-2 (1）.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiation
Delivery Time: base on quantities
Payment Terms: T/T,Western Union
Supply Ability: 3000Pcs per day
Contact Now
Detailed Product Description
Series: AMP SUPERSEAL 1.0 Pin: 26 Pin
Female Part No.: 3-1437290-7 Male Part No.: 9-6437287-8
Material: PA66+GF Housing, Tinned/gold-plated Copper Terminals Temperature Range: -40℃~+125℃
Waterproof Rating: IP65
Highlight:

2 Rows Automotive ECU Connector

,

6473711-1 Automotive ECU Connector

,

7-Slots Automotive ECU Connector

AMP 1473712-2 26 Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1

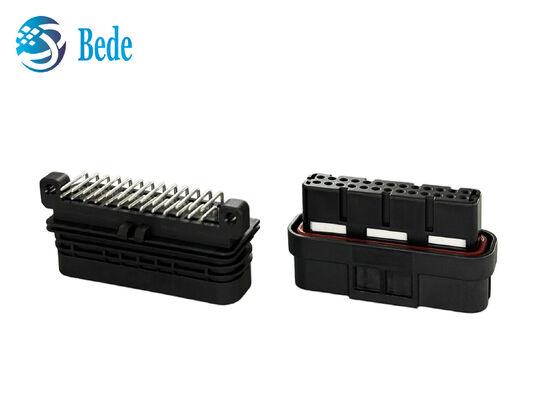

TE/AMP SUPERSEAL 1.0 26-pin automotive connector is a high-reliability solution for vehicle ECUs. It consists of a wire-side female plug (with an orange silicone seal and lock) and a PCB-side 26-right-angle-pin male header (with mounting fixtures), designed to withstand harsh environments and ensure stable signal/power transmission.

Product Specifications
Component Features TE Part Number Specification

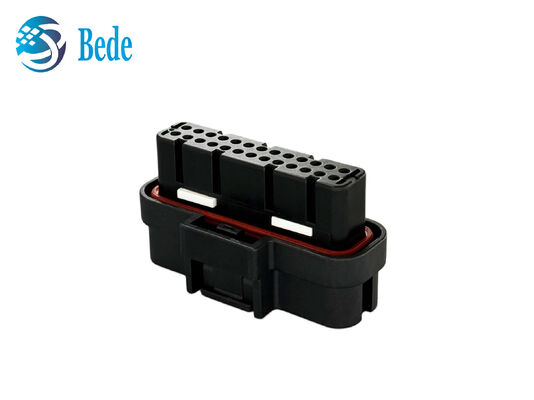

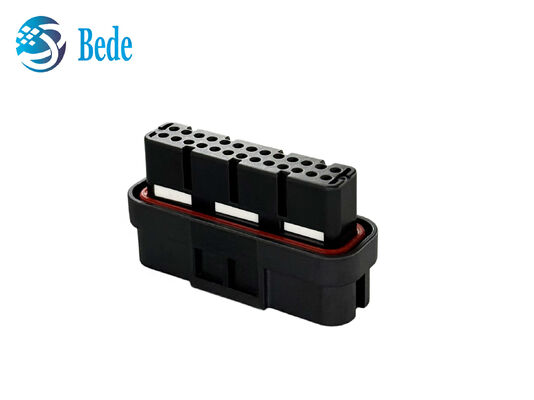

Female Housing (Wire Side) Black PA66+GF/PBT+GF, orange silicone seal, 26-hole 2*13 matrix, latch 1473712-2 Wire-to-board, IP67

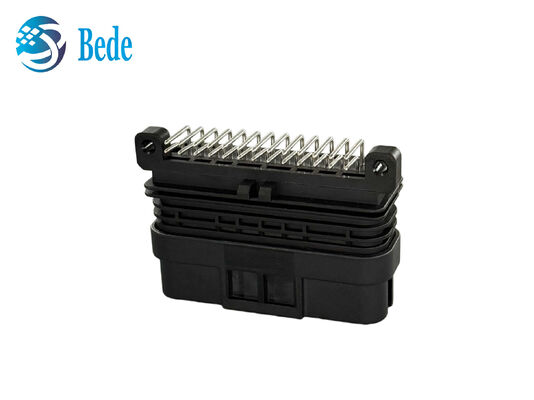

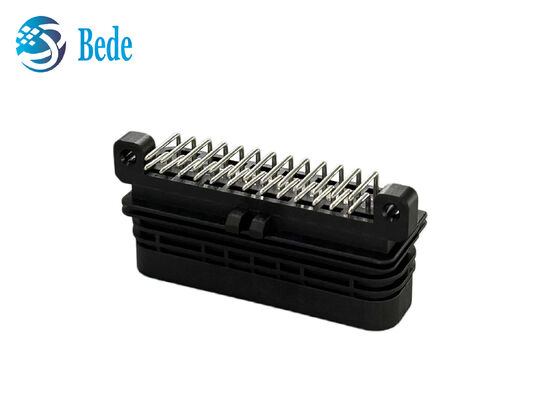

Male Header (PCB Side) Black PA66+GF/PBT+GF, 26-pin vertical pins, mounting holes 6473711-1 PCB solder type
Pin Count 26Pin - Multi-signal & power
Protection Integrated seal + latch - IP67 waterproof
Material PA66+GF/PBT+GF; tinned/gold-plated copper alloy (brass/phosphor bronze) - High conductivity, anti-oxidation
Temp Range -40℃ to 125℃ -
Product Features
  • IP67 Waterproof: Integrated silicone seal + dual-lock, full dust/water protection
  • High-Density Design: 26-pin compact layout for multi-signal/power transmission
  • TE/AMP Compatible: Direct OEM replacement, fits most ECU/controller interfaces
  • Easy Installation: PCB solder header + crimpable plug for mass production & maintenance
AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1 0
Applications
  • Traditional Fuel Vehicles: Engine ECU, Transmission TCU, Body Control Module (BCM) and other electronic control units
  • New Energy Vehicles: Battery Management System (BMS), Motor Controller (MCU) and other core EV components
  • Automotive Accessories: Automotive sensors, actuators, on-board diagnostic (OBD) interfaces and other wiring harness connections
  • Industrial & Off-Highway Vehicles: Construction machinery, agricultural machinery and other vehicle-mounted electronic control systems
Installation

Solder the male header to the controller's PCB using its mounting fixtures; crimp the female plug to the automotive wiring harness, then lock it with the male end for a secure seal.

Notes

Do not disassemble the seal structure to maintain IP67 protection; ensure correct alignment during docking to avoid pin damage; use within the rated temperature range (-40℃~125℃); keep terminals clean during installation to prevent poor contact.

Tag:

2.54mm pitch IDC cable assembly,

PBT housing PCB connector,

ejector header automotive connector
