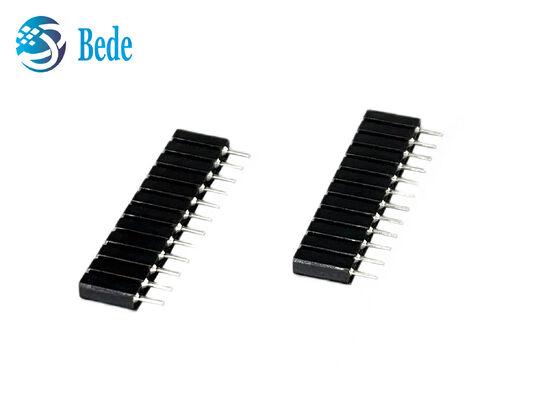

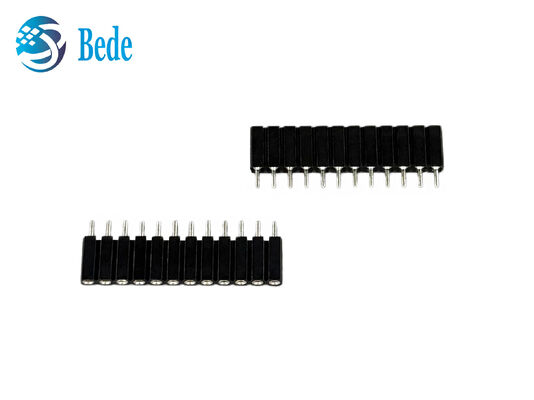

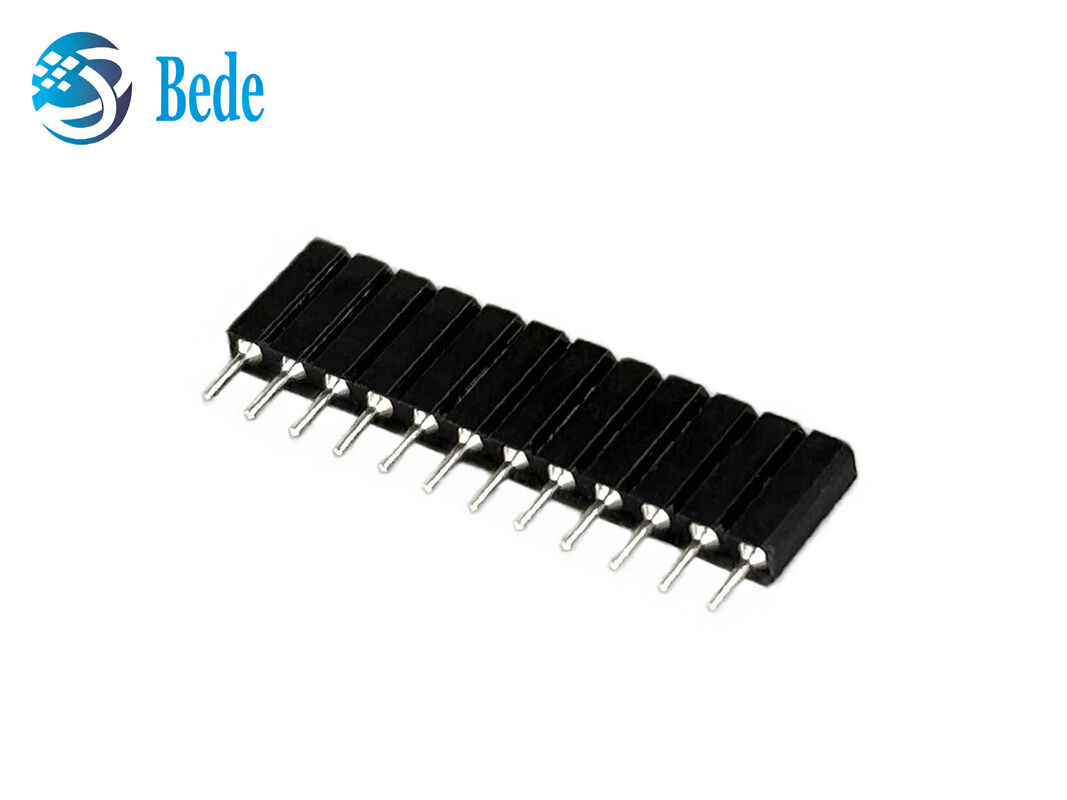

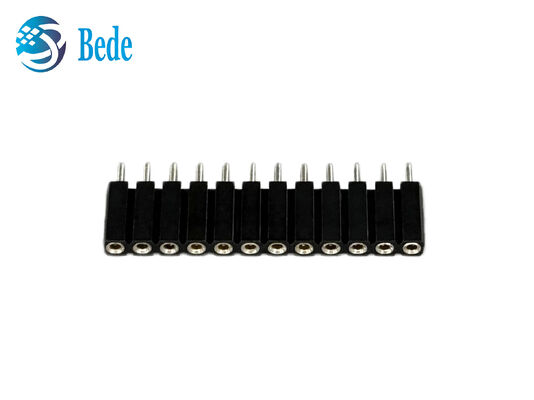

1x12Pin 2.54mm Pitch Single Row Stright Female Header SIP Socket

Large Image : 1x12Pin 2.54mm Pitch Single Row Stright Female Header SIP Socket

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	RoHS
Document:	1x12Pin 2.54mm Pitch.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	negotiation
Delivery Time:	base on quantities
Payment Terms:	T/T,Western Union
Supply Ability:	3000Pcs per day

Contact Now

Detailed Product Description

Pin:	12	Insulator:	High Temperature Thermoplastic
Temperature Range:	-40°C ~ +105°C	Flame Retardancy:	UL 94 V-0
Contact Material:	Brass	Plating:	Au Or Sn Over 50u" Ni

1x12Pin 2.54mm Pitch Single Row Stright Female Header SIP Socket

Product Overview

The 12-pin Single In-line Package (SIP) Socket Strip is a compact, high-reliability connector designed to provide a removable electrical and mechanical connection for electronic components on a printed circuit board (PCB).

Electrical Performance Specifications

Specification	Details
Pin Configuration	12-Pin
Withstand Voltage	500V AC/minute
Rated Current	3A
Temperature Range	-40°C to +105°C
Insulation Resistance	1000MΩ Min
Flame Retardancy	UL 94V-0

Product Features

Contact Type:: Typically features precision-machined (round) terminals with gold-plated internal contacts for superior conductivity and vibration resistance.
Design: Often features a "breakaway" or snappable design, allowing it to be cut to custom lengths.
Mounting: Standard Straight Through-Hole (THT) mounting with tin-plated solder tails.
Facilitates the quick mating and unmating of integratedcircuits (ICs) and modules, allowing for easy replacement or upgrades withoutdesoldering.
High-Density Layouts: More compact than dual in-line package (DIP) sockets,supporting higher-density configurations in modern electronics.

Applications

Industrial Automation
Medical Equipment
Consumer Electronics

Customization Services

Custom connector plastic parts, such as insulator, nut, housing etc.
Custom connector internal conductors, male and female pins, with silver or gold plating
Custom connector accessories, such as silicone rings and dust covers
