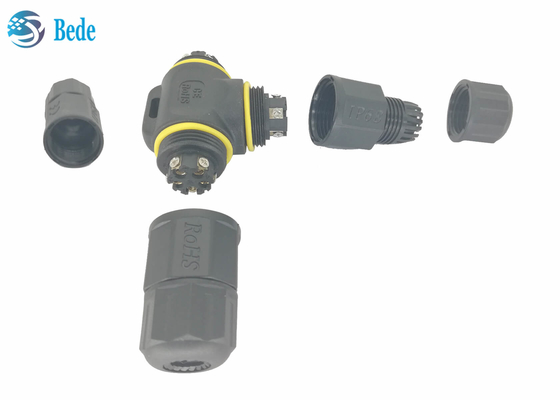

T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins

T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins
T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins

Large Image :  T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE RoHS
Model Number: M20T-5P
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: packing with PE bag, 100pcs per carton
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 6000pcs per day
Contact Now
Detailed Product Description
Highlight:

T 5 pin waterproof electrical connectors

,

5 pin waterproof electrical connectors IP68

,

Cable Junction Box IP68 5 Pins

T Type Waterproof Connector Outdoor Cable Junction Box Waterproof IP68 5 Pins



Application:

  Good waterproof performance, used for circuit connection of outdoor lamps and electrical equipment, advertising light boxes, street lights, underwater lights, garden lights, music fountains, etc.

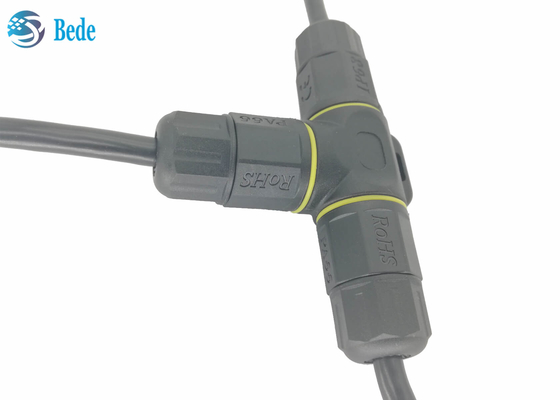

T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins 0

Electrical properties:



Poles

 Voltage current waterproof temperature housing terminal
5 pins 450V 17.5A IP68 -40~105℃  PA66 Nickel plated copper

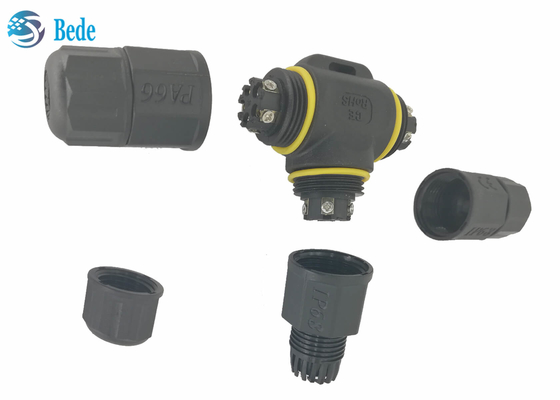

T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins 1



How to use

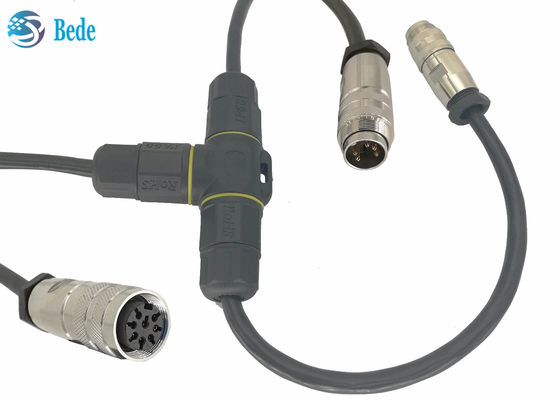

T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins 2

Kind tips

  1. The sealing ring is available in three colors
  2. Please select the appropriate sealing ring size and style according to the outer diameter of the wire.
  3. for bulk order and wholesaler,please feel free contact us to get discount

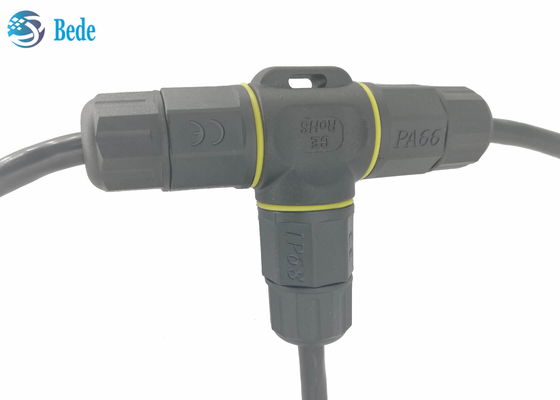

T Type 5 Pin Waterproof Electrical Connectors Cable Junction Box IP68 5 Pins 3

Tag:

IP68 Waterproof Cable Connectors,

Outdoor ip68 4 pin connector,

IP68 5 pin waterproof connector
