Waterproof Cable Connectors
>
BEDE Outdoor IP68 5 Pin Waterproof Connector Output 2~4 Wires

BEDE Outdoor IP68 5 Pin Waterproof Connector Output 2~4 Wires

Brand Name: BEDE
Model Number: EW-M25-5T
MOQ: 100pcs
Price: negotiation
Packaging Details: packing with PE bag, 100pcs per carton
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Supply Ability:
6000pcs per day
Highlight:

IP68 5pin waterproof connector

,

outdoor 5 pin waterproof connector

,

IP68 5 pin waterproof electrical connectors

Product Description

Waterproof Cable Connector For Outdoor Use IP68 5 Pins Output 2~4 Wires



Application:

  Good waterproof performance, used for circuit connection of outdoor lamps and electrical equipment, advertising light boxes, street lights, underwater lights, garden lights, music fountains, etc.

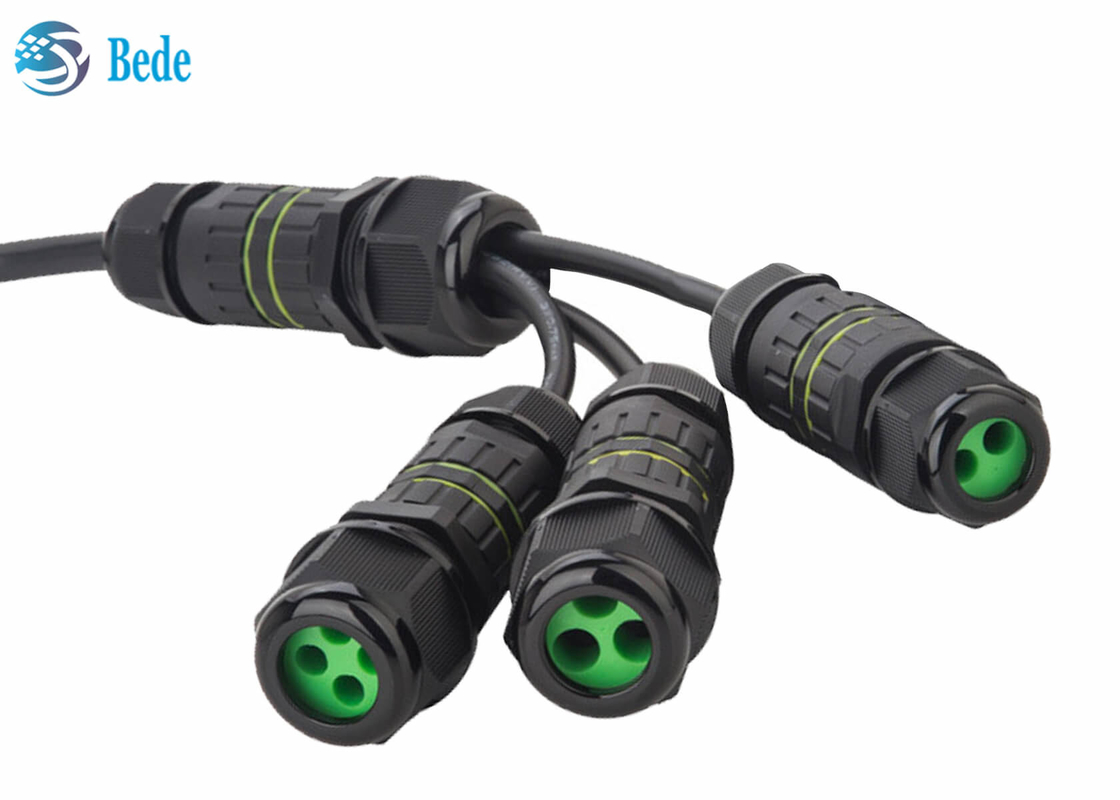

BEDE Outdoor IP68 5 Pin Waterproof Connector Output 2~4 Wires 0

Electrical properties:



Wires

Voltage current waterproof housing terminal
5 pins 400V 40A IP68  PA66 UL94-V0 Nickel plated copper

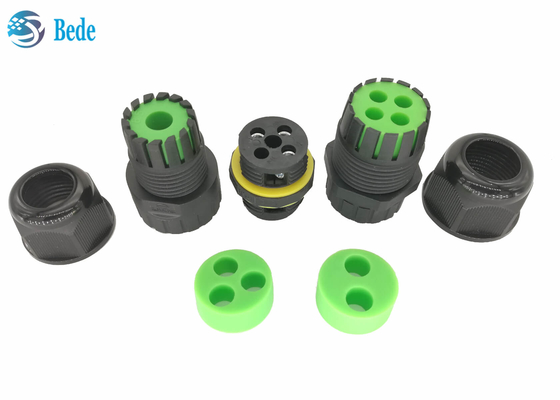

BEDE Outdoor IP68 5 Pin Waterproof Connector Output 2~4 Wires 1

Advantage of this waterproof connectors

3 kinds of sealing rings at the input end to choose from, various diameters of wire can be used

4 kinds of sealing rings at the output end to choose from, corresponding to the output of one wire to 4 wires,

Applicable temperature -40~105 ℃, no matter tropical, frigid, winter, summer, can be used all

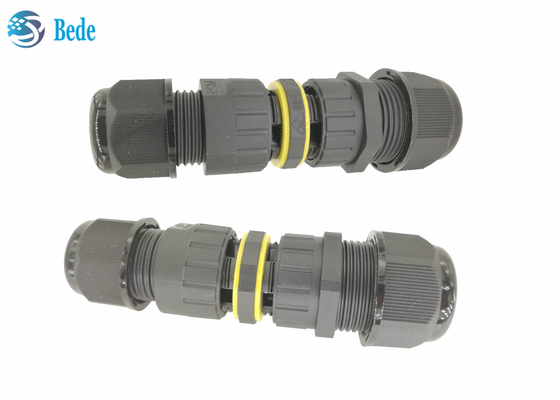

BEDE Outdoor IP68 5 Pin Waterproof Connector Output 2~4 Wires 2

How to use



  1. Unscrew the nut and take out the terminal
  2. Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
  3. Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
  4. Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
  5. Tighten the waterproof nut to complete

BEDE Outdoor IP68 5 Pin Waterproof Connector Output 2~4 Wires 3
