M20 Quick Wiring Water Proof Wire Connector 3 Pins 2 Channel 450V 17.5A ip68 waterproof connector 2 pin

Brand Name: BEDE
Model Number: EW-M20-2T/3T
MOQ: 100pcs
Price: negotiation
Packaging Details: packing with PE bag, 100 pcs per carton
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
RoHS
Shell Material:
PA 66( UL 94-V0)
Contact Material:
Nickel Plated Copper
Poles:
2pin,3pin
Rated Voltage:
450V
Rated Current:
17.5A
Applicable Temperature:
-40 ~ +105℃
Supply Ability:
6000 pcs per day
Highlight:

M20 water proof wire connector

,

ip68 waterproof connector 2 pin

,

17.5A 2 pin waterproof connector

Product Description

M20 Quick Wiring Screwless Waterproof Cable Connector 2 3 Pins 2 Channel 450V 17.5A

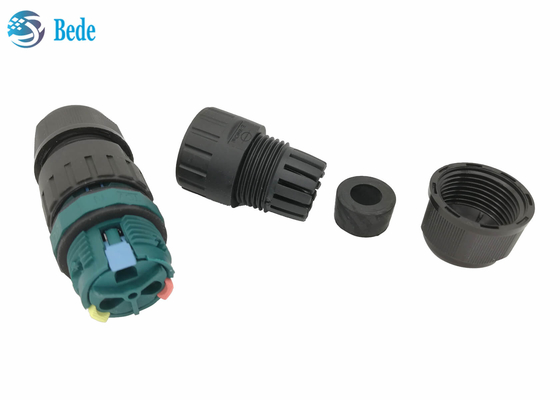

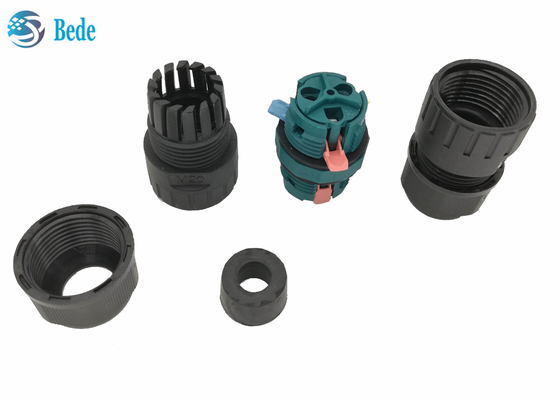

Product structure

1. Nut, it is very important for waterproofing, make sure to tighten them after wiring

2. Grip bushing, grip the cable together with the nut and the sealing ring

3.Quick connection terminal

4,O-ring, silicone, waterproof part between grip bushing and terminal block

5,Bushing,

6.Sealing Rings, silicone, 3 colors for your opinion, 2 sizes for different cable diameter.

M20 Quick Wiring Water Proof Wire Connector 3 Pins 2 Channel 450V 17.5A ip68 waterproof connector 2 pin 0

Description

  1. Wiring is very easy and fast, no need for screws or screwdrivers, saving wiring time by 50%: M20 Quick Wiring Water Proof Wire Connector 3 Pins 2 Channel 450V 17.5A ip68 waterproof connector 2 pin 1
  2. Cable range: 5-9mm or 9-12mm, 2 kinds sealing rings for your option.M20 Quick Wiring Water Proof Wire Connector 3 Pins 2 Channel 450V 17.5A ip68 waterproof connector 2 pin 2
  3. IP68 waterproof, Suitable for connection to the outdoor lighting, underfloor heating, solar photovoltaic, etc, its also a DIY tool for repairing and delaying electrical wiring indoors

Electrical Data



Rated voltage Rated current Wire Section cable OD
450V 17.5A 0.5mm2~2.5mm2 5~9mm / 9 ~12mm





M20 Quick Wiring Water Proof Wire Connector 3 Pins 2 Channel 450V 17.5A ip68 waterproof connector 2 pin 3
