2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type

2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type
2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type

Large Image :  2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: CE RoHS
Model Number: XY222- 412/ 413
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotistion
Packaging Details: 2pins 2500pcs per carton, 3pins 1500pcs per carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 20000 pcs per day
Contact Now
Detailed Product Description
Highlight:

2Pin screw type quick connect terminal

,

3Pin screw type quick connect terminal

,

3Pin quick connection terminal

Quick Terminal Blocks 2 Pins 3 Pins Screw-Free Pull Rod Connector Welding-Free Push-Type



Description

  1. The main body is made of PA66 engineering plastic, the squeeze handle is made of PC plastic, and the flame retardant grade is UL 94 V-2
  2. No need for screws to fix wires, fast and easy to use
  3. Usually used with waterproof connectors or junction boxes
  4. technical data
applicable wire Rated voltage Rated current Insulation resistance Contact resistance temperature
28-14AWG 250/600 V 32A ≥1000MΩ ≤0.015Ω -25~95℃



2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 0

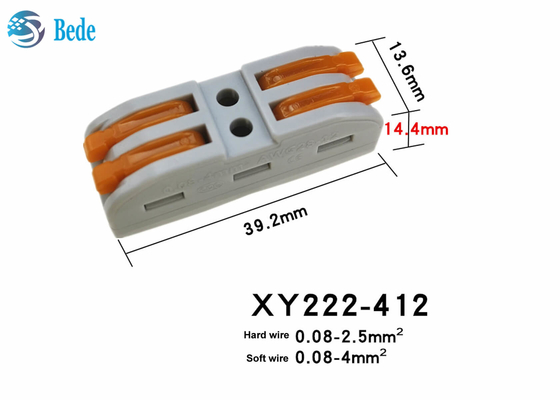

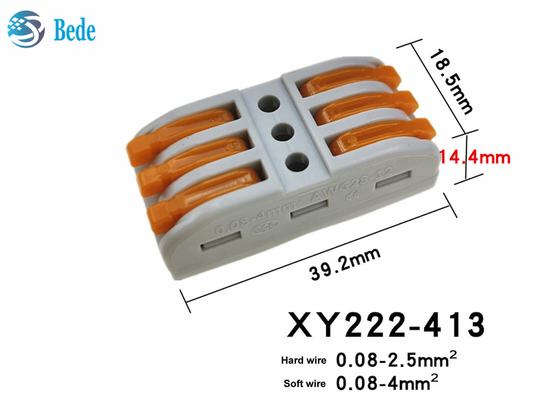

Size of the terminal blocks



2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 1

2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2

How to Use

  1. Strip the insulation of the wire about 10mm
  2. Lift the squeeze handle up
  3. insert the wire
  4. Press the wire squeeze handle down

2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 3

Tag:

quick connection terminal,

Push In Quick Terminal Block,

push in terminal block wire connector
