Universal Wire And Cable Connector Push In Terminal Blocks 2 Way 32A 450V
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | OJ282 |
| Minimum Order Quantity | 800pcs |
| Price | negotistion |
| Packaging Details | PE bag |
| Delivery Time | 3 days after payment |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 20000 pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 450V | Current | 32A |
|---|---|---|---|
| Size | 45*18*10mm | Weight | 6.5 Gram |
| High Light | push in terminal blocks 32A 450V,push in terminal blocks 2Way,push type terminal block 32A 450V |
||
Product Description

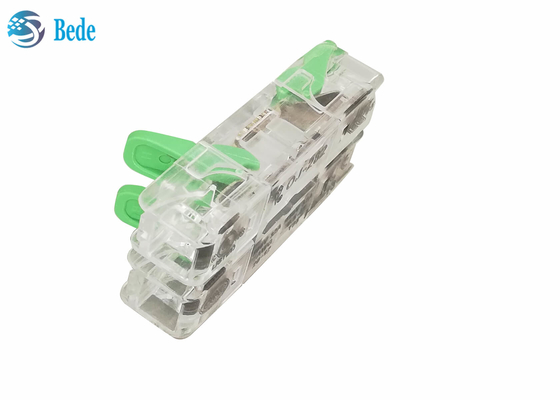

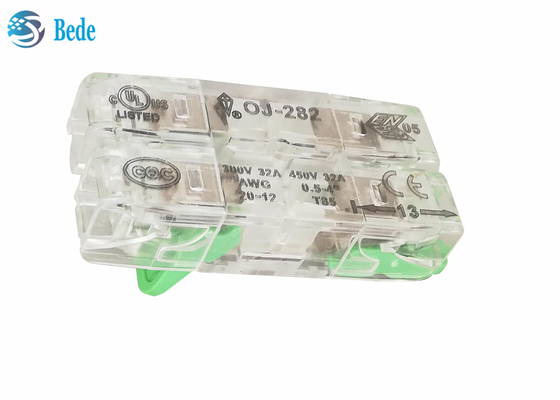

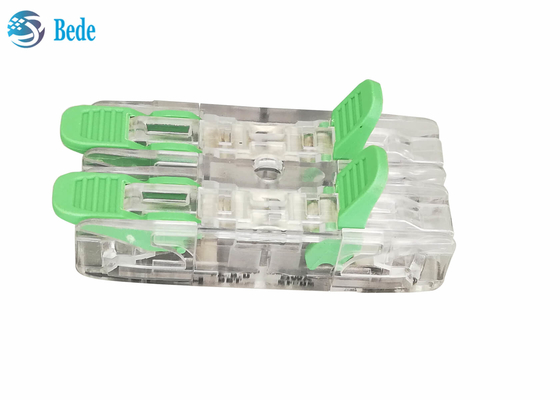

Universal Wire And Cable Connector Push-In Terminal Blocks 2 Way 32A 450V
product structure
- lever, PA66 materials, flame retardant UL94-v2
- main bady, PC polycarbonate materials, flame retardant UL94-v2
- Fixing hole for screw M3
- Wiring hole for 0.2~4.0mm2 / 12~20AWG
- conductor, zinc-plated copper for good electrical conductivity and rust resistance
re
Features
- Quick wiring, replacing traditional insulating tape, no screws, no screwdriver,
- 2 input and 2 output , easy to use
- Both soft and hard wires can be used
- Flame retardant material, safe, prevent high temperature short circuit
- Easy to replace and save time in modifying the circuit
How to Use
- Strip the insulation of the wire about 13mm
- Lift the lever up
- insert the wire
- Press the lever down
family members
1 way , 3 way in stock also, please contact us directly or back to catalog to know more
