X Type 4-Channel Ip68 Waterproof Connector 3 - Poles Ideal For 3 Pin Wires

Brand Name: BEDE
Model Number: EW-M20-X-3
MOQ: 100pcs
Price: negotiation
Packaging Details: packing with PE bag, 50pcs per carton
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Supply Ability:
8000pcs per day
Highlight:

X Type ip68 waterproof connector

,

4Channel ip68 waterproof connector

,

X Type 3 pin ip68 waterproof connector

Product Description

IP68 Waterproof Cable Connector X type 4-Channel 3-poles Ideal for  3 Pin Wires



Description

    This X shap waterproof can be used to repair and extend power cables, 4-Channel 3-poles, suit for indoor or outdoor cable connection,for coastal, river or underwater engineering, underground engineering,such as tri-proof lights,garden lights,tunnel lights,led flood lights,landscape lights,wall lamps,high bay,canopy lamps,machine power cable connection,vehicle cable connection.etc.  It is also a good DIY tool for repairing or extending your power cables

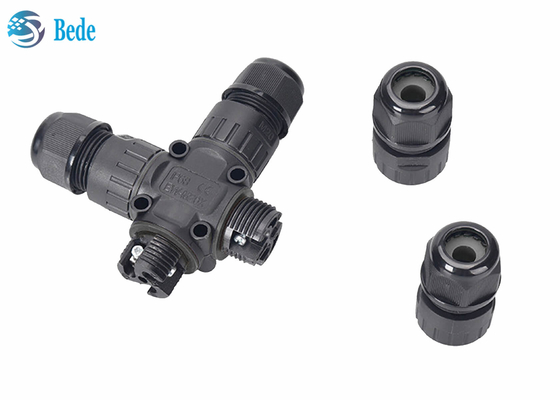

X Type 4-Channel Ip68 Waterproof Connector 3 - Poles Ideal For 3 Pin Wires 0

Electrical data

  1. Available for 2 or 3-core cables,Cable Size : Ø5-9mm/9-12mm,wire diameter:Ø0.5-2.5 mm²(AWG24-13).
  2. include "live wire"&"neutral wire"&"earth wire". Rated voltage: Max 450v, rated current: Max 24A
  3. IP68 Waterproof / Moisture-proof / Dust-proof, The rubber sealing rings and clamping nuts provide the perfect waterproof and excellent sealing, strong waterproof used indoor or outdoor cable wiring connection,

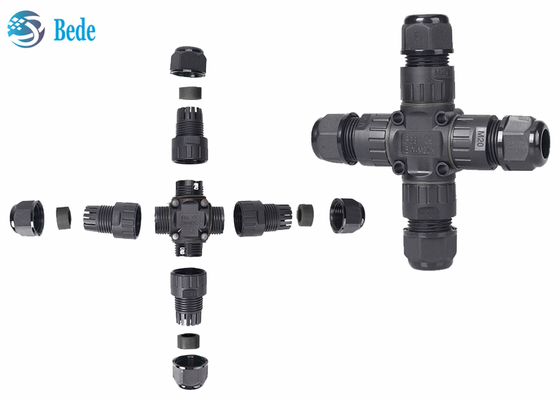

  4. High quality Material:ATB-M20-TTS3,the casing is made of nylon PA66 with high temperature resistance( -40° C - 110° C); The inner conductor is cooper core filling for better abrasion resistance and electronic conductivity;X Type 4-Channel Ip68 Waterproof Connector 3 - Poles Ideal For 3 Pin Wires 1

How to use



  1. Unscrew the nut and take out the terminal
  2. Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
  3. Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
  4. Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
  5. Tighten the waterproof nut to complete

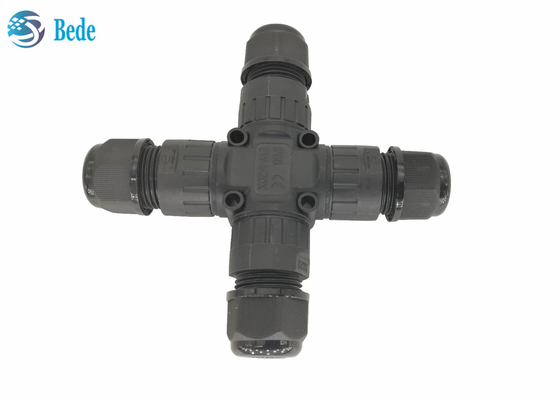

X Type 4-Channel Ip68 Waterproof Connector 3 - Poles Ideal For 3 Pin Wires 2

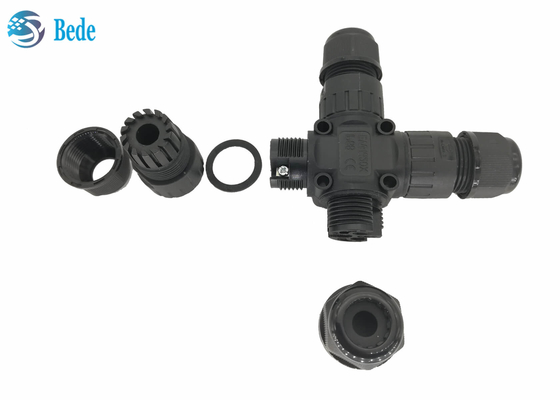

X Type 4-Channel Ip68 Waterproof Connector 3 - Poles Ideal For 3 Pin Wires 3





Tags:

IP68 Waterproof Cable Connectors

Outdoor ip68 4 pin connector

IP68 5 pin waterproof connector
