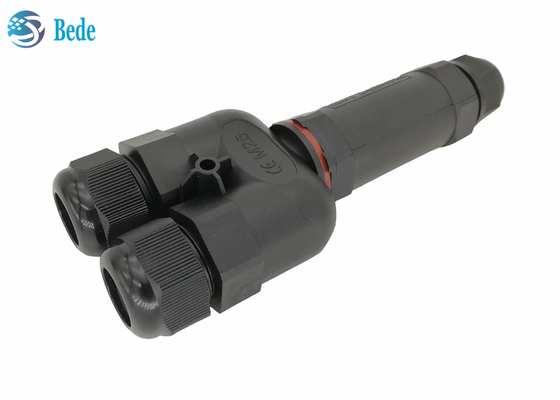

Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a

  • Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a
  • Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a
  • Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a
  • Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a
  • Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a
  • Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a
Place of Origin China
Brand Name BEDE
Certification CE RoHS
Model Number EW-M25-Y2
Minimum Order Quantity 100pcs
Price negotiation
Packaging Details packing with PE bag, 50pcs per carton
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 8000pcs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Ip68 5 pin waterproof electrical connectors

,

5 pin waterproof electrical connectors 250v

,

waterproof connector 5 pin 250v
Leave a Message
Product Description

Y Type Waterproof Cable Connector 3 Channel 2 3 4 5 Pins IP68 250V 16~24A



Description


1.Made of Nylon PA66 plastic material for long service life, rust-proof and flame retardant.
2.Waterproof grade IP68, suitable for water depth within 10 meters
3.High temperature resistant, the bottom adopts anti-slip design, more stable

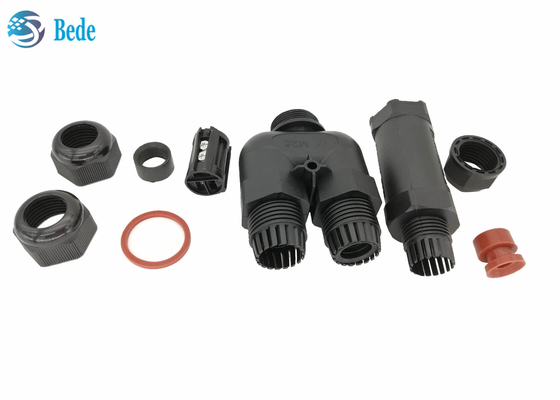

4.Strong sealing performance, use different sizes of silicone rings, suitable for different wires: 4-8mm /5-9mm /9-12mm,

Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a 0

5.Practical and easy to install.

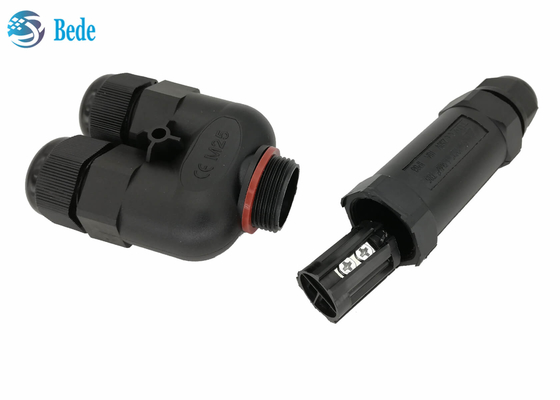

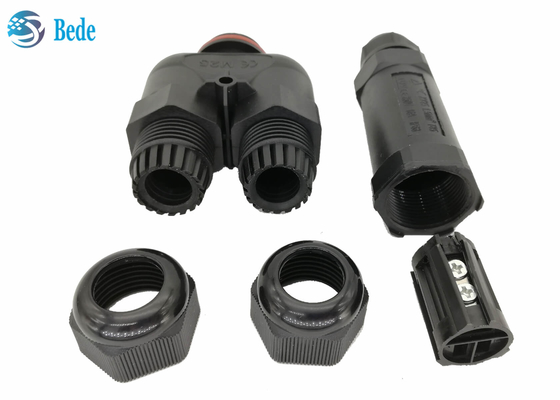

6.Item Style:2/3/4/5/6 pins: 5 kinds of terminals can be selected, suitable for 2 pins, 3 pins, 4 pins, 5 pins cable; about 2 and 3pins, screwless terminal blocks are recommended for faster replacement



Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a 1
7. Item Size:160*60*30mm

8.Application range:Mainly used for outdoor waterproof equipment, street lamps, buried lights, underwater lights, tunnel lights, outdoor flood lights, etc.

Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a 2



Quick Details:



Waterroof Level Working temperature Rated voltage Rated current Wiring range
IP 68 -40 ~ +105 ℃ 250V  16~24A 0.5~2.5mm2





How to use

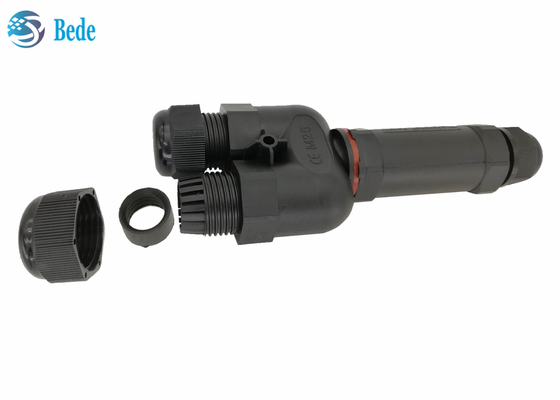

  1. Unscrew the nut and take out the terminal
  2. Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
  3. Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
  4. Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
  5. Tighten the waterproof nut to complete
  6. learn how to wiring from our YouTube:  https://youtu.be/cJ9dcrRI74c

Y Type 3 Channel 2 3 4 5 Pin Waterproof Electrical Connectors Ip68 250v 16~24a 3
