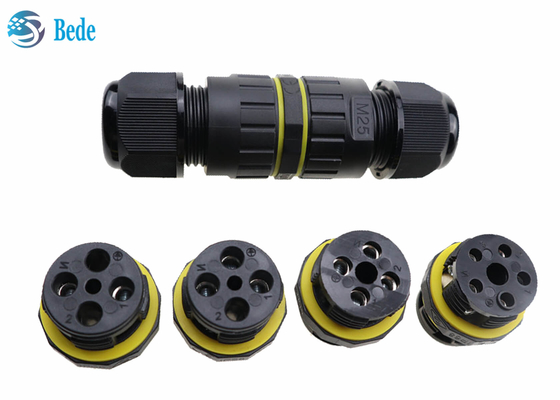

Outdoor IP 68 450V Waterproof Cable Connectors M25 2 3 4 5 Pins 2 Channel

Large Image : Outdoor IP 68 450V Waterproof Cable Connectors M25 2 3 4 5 Pins 2 Channel

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	RoHS
Model Number:	EW-M25-2~5P

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiation
Packaging Details:	packing with PE bag, 100 pcs per carton
Delivery Time:	Within 3 days after payment
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	8000 pcs per day

Contact Now

Detailed Product Description

Shell Material:	PA 66	Contact Material:	Nickel Plated Copper
Poles:	2~5pin	Rated Voltage:	450V
Rated Current:	2 3 4 Pin 40A，5 6 Pin 24A	Applicable Temperature:	-40 ~ +105℃
Highlight:	Waterproof Cable Connectors M25 , IP68 Waterproof Cable Connectors , M25 waterproof ip68 connector

M25 Outdoor Waterproof Cable Connector 2 3 4 5 Pins 2 Channel IP 68 450V

Description

2 ~ 5 pin plug connector ,4 kinds of terminals for your option
Cable range: 5-9mm or 9-12mm, 10~14mm, 3 kinds sealing rings for your option.
IP68 waterproof, Suitable for connection to the outdoor lighting, underfloor heating, solar photovoltaic, etc, its also a DIY tool for repairing and delaying electrical wiring indoors
Cold zone, tropical zone, winter, summer are applicable, working temperature -40 ~ +105 ℃

Electrical Data

Rated voltage	Rated current		Wire Section		cable OD
450V	2 3 4 pin 40A	5 6 pins 24A	2 3 4 pin 0.5~6mm²	5 pins 0.5~2.5mm²	5~9/9~12/10~14mm

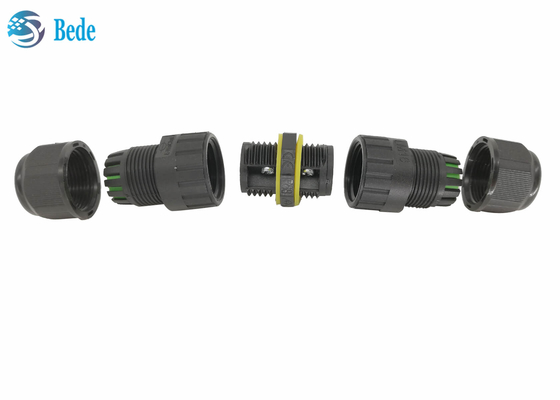

How to use

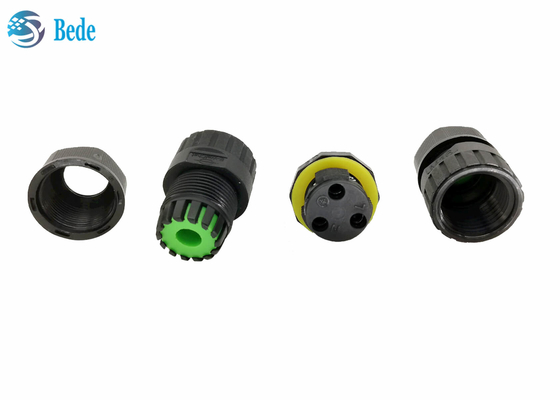

Family portrait

All products of M25 2 channels are as follows. M16, M20, M25 screwless quick installation type are also in stock, contact us or return to the catalog to know more.

Outdoor IP 68 450V Waterproof Cable Connectors M25 2 3 4 5 Pins 2 Channel 4
