Panel mounting IP68 Waterproof Cable Connectors M21 Aviation 2 3 4 5 5C 7 9 12 Pin

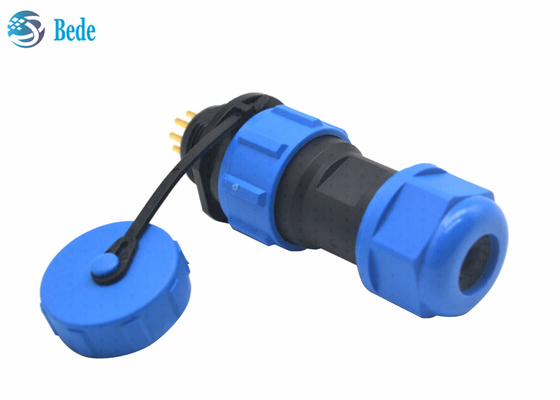

Large Image : Panel mounting IP68 Waterproof Cable Connectors M21 Aviation 2 3 4 5 5C 7 9 12 Pin

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	2110P-2112S / 2011S

Payment & Shipping Terms:

Minimum Order Quantity:	160 sets
Price:	negotiation
Packaging Details:	80sets per carton
Delivery Time:	5 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000 sets per day

Contact Now

Detailed Product Description

Style:

Cable To Panel / Cable To Cable

Pins:

2 3 4 5 5C 7 9 12

Waterproof:

Applicable Wire:

4.5~7mm / 7~12mm

Highlight:

IP68 Waterproof Cable Connectors M21

M21 Aviation Waterproof Cable Connectors

IP68 9 pin waterproof connector

M21 Aviation Connector Panel Mounting Connector IP68 Waterproof 2 3 4 5 5C 7 9 12 Pin

Description

1. Cable to cable docking connetors and cable to panle connectors, male and female sets,

2. shells material is PA66, flame retardant UL94V-0

3. insulator meterial is PBT, temperature resistance up to 260°C and high insulation resistance

4. pins: 2 3 4 5 5C 7 9 12

5. suitable cable diameter: Φ5~7mm or 7~12mm,

6. applicable temperatrue: -25~+85℃

7. waterproof: IP68

8. Withstand voltage:2 3 4 5 5C 7 9 pin 1500V, 12 pin 1200V

9. factory outlet, welcome to customize,not retail

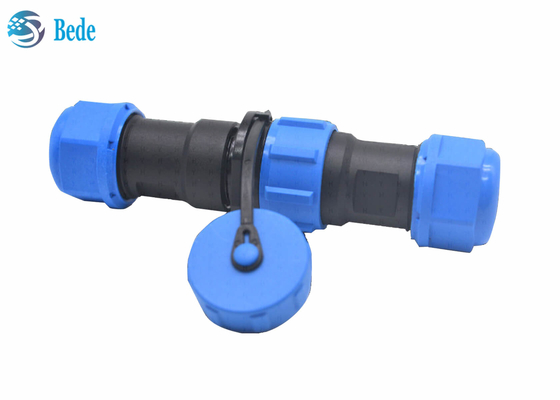

Panel mounting IP68 Waterproof Cable Connectors M21 Aviation 2 3 4 5 5C 7 9 12 Pin 0

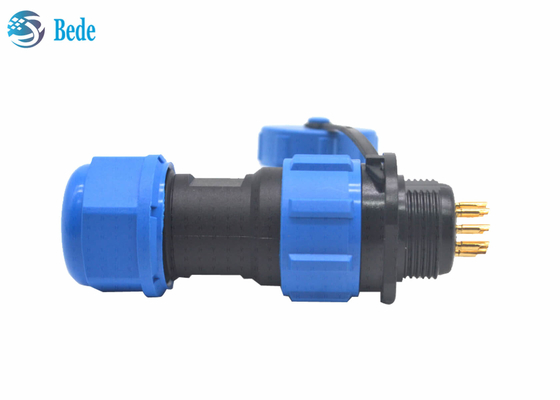

Panel mounting IP68 Waterproof Cable Connectors M21 Aviation 2 3 4 5 5C 7 9 12 Pin 1

Notice:

1.pins location as following pictrue, there are 2 styles of 5 pin, please choose the one you need and let us know

2.both panel mounting and cable docking moudels in stock

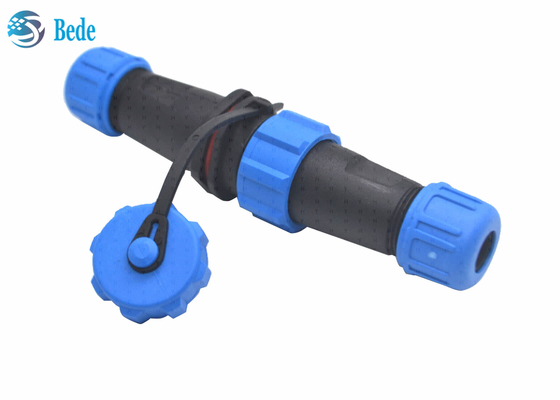

Panel mounting IP68 Waterproof Cable Connectors M21 Aviation 2 3 4 5 5C 7 9 12 Pin 2

Electrical data

pins	2	3	4	5	5C	7	9	12
Rated current	30A	30A	30A	30A	15A	15A	5A	5A
contact hole size	Φ3x2	Φ3x3	Φ3x4	Φ3x5	Φ2x6	Φ2x7	Φ1x9	Φ1x12
working voltage	500V	500V	500V	500V	500V	500V	500V	400V
wire gauge	11AWG	11AWG	11AWG	11AWG	14AWG	14AWG	18AWG	18AWG

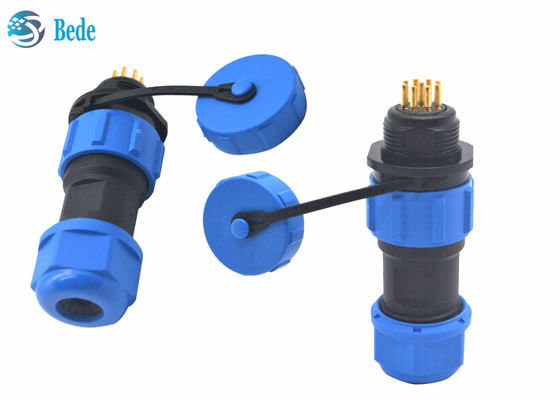

Panel mounting IP68 Waterproof Cable Connectors M21 Aviation 2 3 4 5 5C 7 9 12 Pin 3
