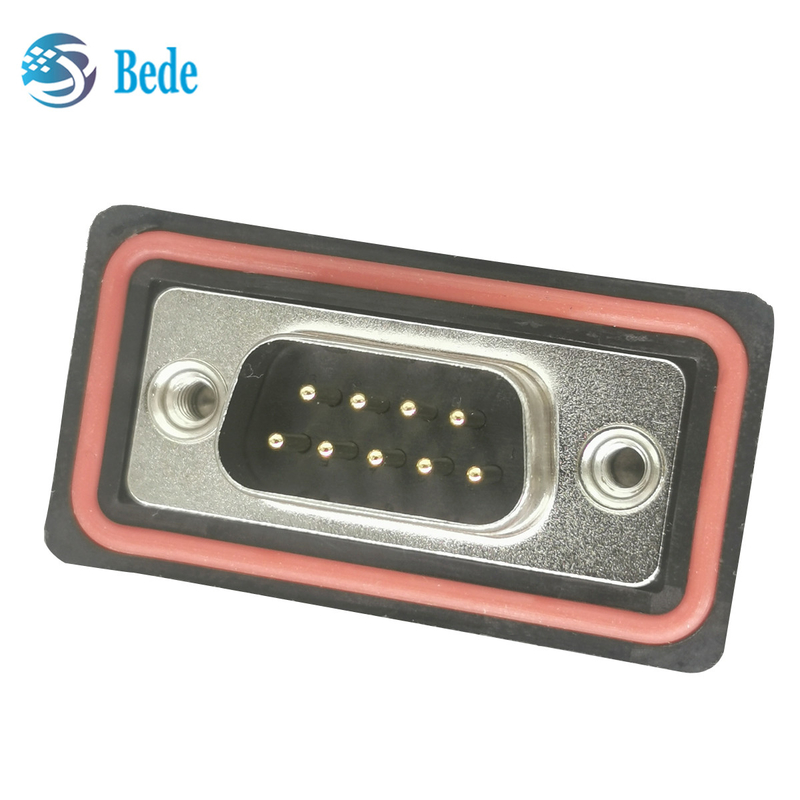

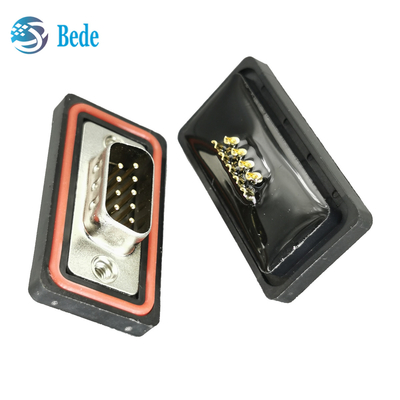

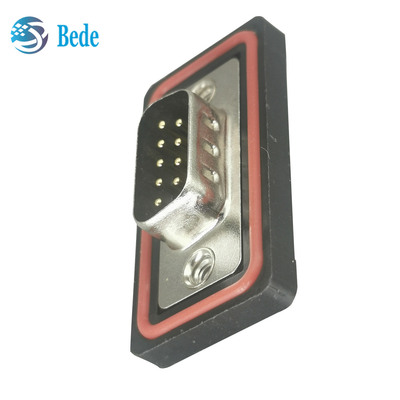

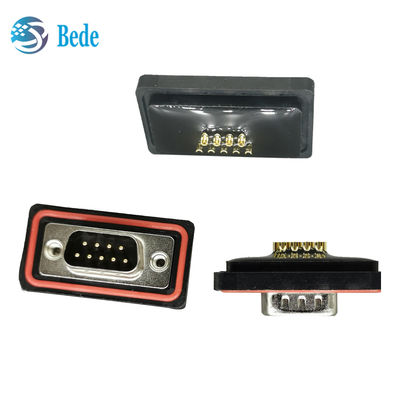

Extreme Temperature Resistance D Sub 9 Male Connectors for Harsh Environments
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Model Number | DB9M001 |
| Minimum Order Quantity | 100pcs |
| Supply Ability | 5000pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperatrue | -55~+105℃ | Connector Style | D Subminiature |
|---|---|---|---|
| Shell Size | A, B, C, D, E, F | Waterproof | IP68 |
| Pins Material | Brass + Tin Plated +gold Plated | Rated Current | 5A |
| Mating Cycles | 500 | Gender | Male, |
Product Description
Product Description:
One of the key features of the D-Sub 9 waterproof connector is its waterproof rating of IP68. This means that it is completely protected against dust and can withstand continuous immersion in water under specified conditions. This makes it ideal for use in outdoor applications where exposure to water and other liquids is a concern.
In addition to its waterproof rating, the D-Sub 9 waterproof connector also boasts a high insulation resistance of 5000 Megohms (Min). This ensures that the connector maintains its electrical integrity even in the presence of moisture and other contaminants, making it highly reliable and durable.
The D-Sub 9 waterproof connector has a current rating of 5A, which makes it suitable for a wide range of applications. It also has a high mating cycle of 500, which means that it can be connected and disconnected multiple times without losing its functionality.
The D-Sub 9 waterproof connector comes in a variety of shell sizes, including A, B, C, D, E, and F. This allows it to be used in a wide range of applications, from small handheld devices to large industrial machinery.
Technical Parameters:
| D Sub Standard Connectors | Technical Parameters |
|---|---|
| Pins Material | Brass + Tin Plated + Gold Plated |
| Insulation Resistance | 5000 Megohms (Min) |
| Voltage Rating | 500V |
| Material | PA66 / Silicone / Brass |
| Termination Style | Solder Cup |
| Mating Cycles | 500 |
| Operating Temperature | -55°C To +125°C |
| Shell Size | 21*40 |
| Connector Style | D Subminiature |
| Waterproof | IP68 |
Maerials:
1. Seal, Silicone
2.Housing and insulator: PBT + 30% GF
3.pins: Brass + Tin Plated + Gold Plated
4.shell: steel

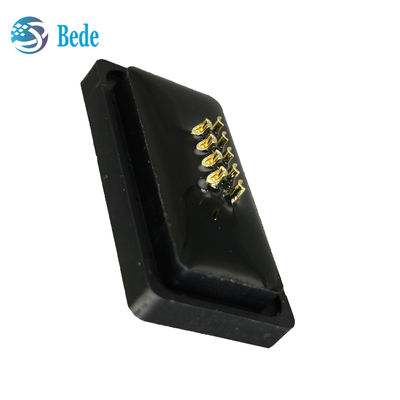

5.Sealant: epoxy resin
Applications:
These connectors are suitable for a variety of applications, including telecommunications, industrial automation, and medical equipment. The waterproof design of this product ensures that it can be used in harsh environments, making it ideal for outdoor applications. The IP68 rating ensures that it is resistant to dust and water, making it suitable for use in areas where water and dust are present.
The BEDE DB9M001 is built to last, with an insulation resistance of 5000 Megohms (Min) and a rated current of 5A. This makes it a reliable choice for use in electronic connectors that require high-quality, stable connections. The gender of the connectors is male, which means that they can be used to establish connections with female connectors.
Overall, the BEDE DB9M001 D-Sub 9 waterproof connector is a versatile and reliable product that can be used in a variety of applications. Its waterproof design, high insulation resistance, and rated current make it a popular choice for users who require high-quality electronic connectors. Whether you are in the telecommunications, industrial automation, or medical equipment industry, this product is an ideal choice for your connectivity needs.
FAQ:
Q: What is the brand name of the D Sub Connectors?
A: The brand name of the D Sub Connectors is BEDE.
Q: What is the model number of the D Sub Connectors?
A: The model number of the D Sub Connectors is DB9M001.
Q: Where is the D Sub Connectors manufactured?
A: The D Sub Connectors are manufactured in China.
Q: What is the supply ability of the D Sub Connectors?
A: The supply ability of the D Sub Connectors is 5000pcs per week.
Q: Are the D Sub Connectors compatible with both male and female connectors?
A: No, the DB9M001 model is only compatible with male connectors.
