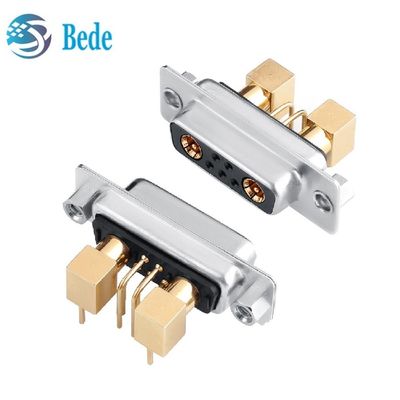

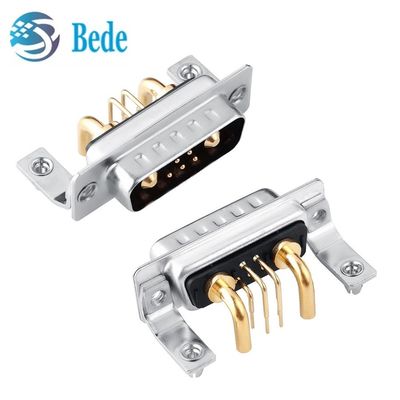

7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB

7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB Connector

Description

This page for a right angle combo high power d-sub connector male and female sets, used for applications that require power, and signal running in one connector, widly uesd in Communication, Military, Robotics, Automation, and Transportation fields.
  The 7w2 D-Sub connector have 2pcs power contacts and and 5pcs signal contacts, the Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different, the impedance for the coaxial contacts are 50Ω or 75Ω. All of the contact pins are machined processing, phosphor copper material, gold full plated to guarantee its performance and service life.

Electrical Characteristics

1. High Power Contact Ratings: 10, 20, 30 or 40 Amps optional, check the follwing drawing and table for details
2. Connector Rating with Signal Contact: 3.0 Amps
3. Operating Voltage: 300V
4. High Power Contact Resistance: 2.7 Milliohms Max
5. Withstand Voltage: 1000V AC for 1 Minute
6. Insulation Resistance: 2000 Megohms Min.
7. Temperature Rating: -55°C to +125°C

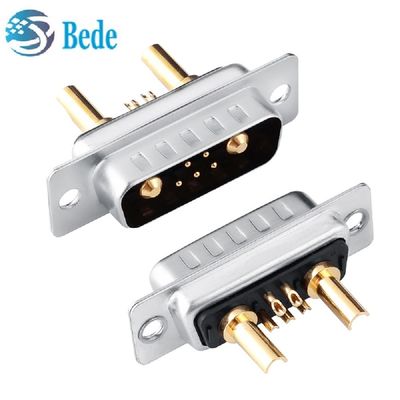

Following drawing if for straight pins 7W2 DB Combo connectors,
