25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission

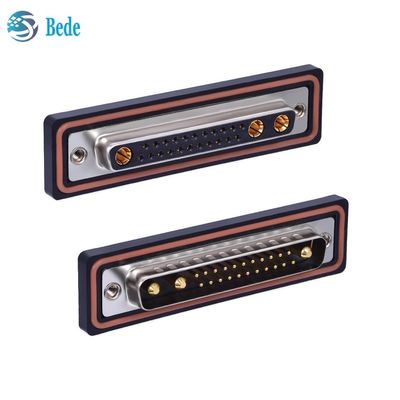

Large Image : 25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE
Model Number:	25W3

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	negotiation
Packaging Details:	PE bag and carton
Delivery Time:	base on quantities
Payment Terms:	T/T, Western Union
Supply Ability:	4000Pcs per day

Contact Now

Detailed Product Description

Applicable Temperature:	-55~+125℃	Gender:	Male And Female
Connector Type:	D Sub	Working Voltage:	300V
Rated Current:	10A / 20A / 30A / 40A	Connector Style:	D-SUB 25W3
Contact Material:	Copper Alloy Gold Plated	Connector With Signal Contact Material:	Phosphor Copper Gold Plated
Signal Contacts Current Rating:	3A	Insulator Material:	PBT+30%GF
Sealing Material:	Epoxy Resin	Shell Material:	PA66

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission

Description

Bede’s 25W3 D-Sub series pioneers hermetic hybrid connectivity with military-grade IP67 sealing, integrating 25 contacts (3 coaxial + 22 power) in a standard D-Sub configuration. Designed for harsh-environment systems demanding uncompromised signal integrity alongside dust/fluid resistance.

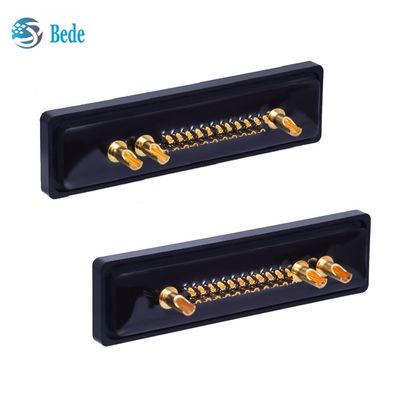

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission 0

Applications:

▣ Outdoor Robotics: Agricultural drone powertrain control in dust/moisture
▣ Marine Electronics: SONAR array pressure-equalized interfaces
▣ EV Charging: DC fast charger outdoor plug-in modules
▣ Oil & Gas: Downhole sensor telemetry junctions

Performance Profile

Configuration 25-pin (3 RF + 22 power)
RF Impedance: 80Ω ±5%
Power Contact Material: machined brass
Waterproof : IP 67
Mating Cycles: 500 Cycles
Flammability Rating: UL94 V-0

Rated current

Four rated currents are available, refer to the figure below

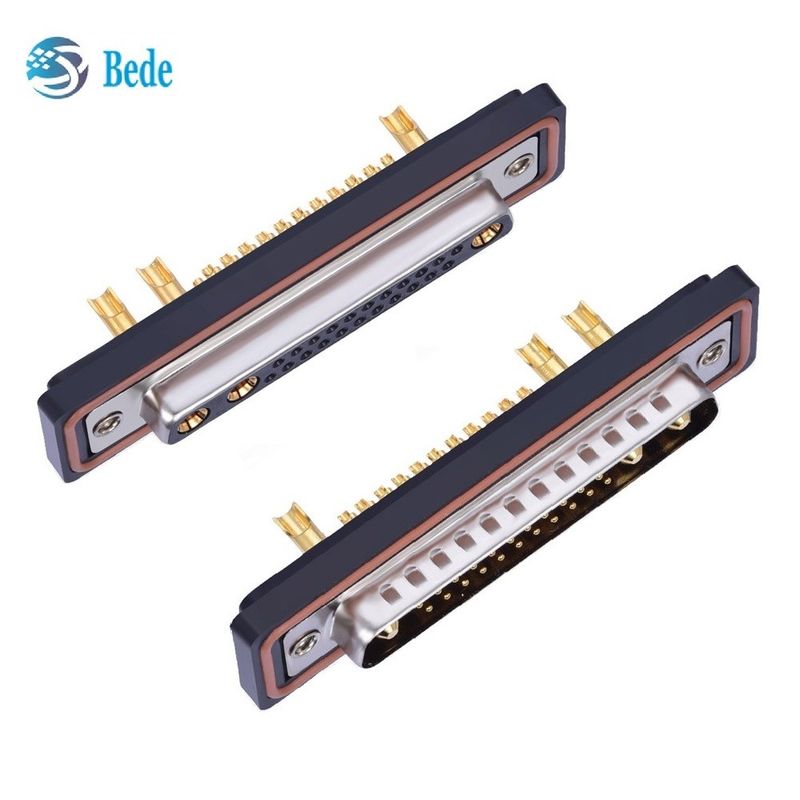

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission 1

Part number	A/mm	B/mm	Rated current
DBA25W3-1	2.5	4.5	10 Amp
DBA25W3-2	3.6	5.0	20 Amp
DBA25W3-3	4.4	5.5	30 Amp
DBA25W3-4	5.5	5.5	40 Amp
