Brief introduction of the FQ connectors
     FQ series waterproof circular electrical connectors comply with DZ4Q/RE008-84 standard, adopting high reliability squirrel cage type, advanced structure and high reliability.
    Products with low contact resistance, anti-vibration, anti-shock, strong sealing, plug seat connection fast, etc., simple to use, easy to operate, widely used in a variety of electronic equipment between the electrical connection.

Materials of FQ 14 Cricular Connetors

1. Contact pins : Gold plated brass       2. Shell: Zinc Alloy with color painting

3. Wire Cage: Stainless Steel Spring     4. Sealing Rings: Silicone Rubber

Pins Distribution and Rating Current

FQ 14 series connectors are available in 2~9pin, you can check their current ratings according to the following figure

Plugs and sockets used in conjunction

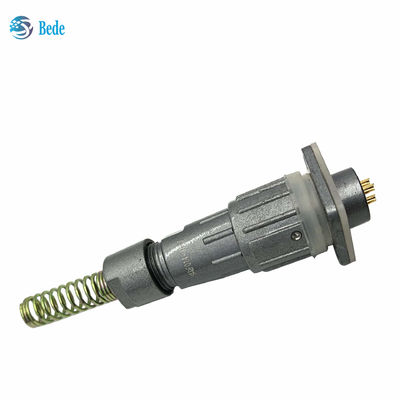

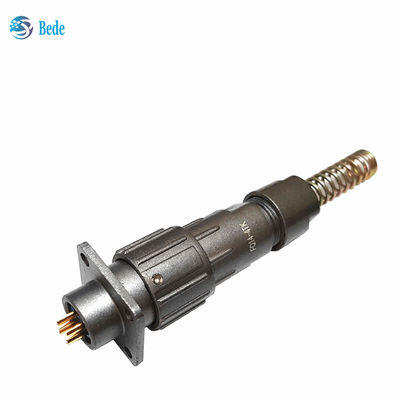

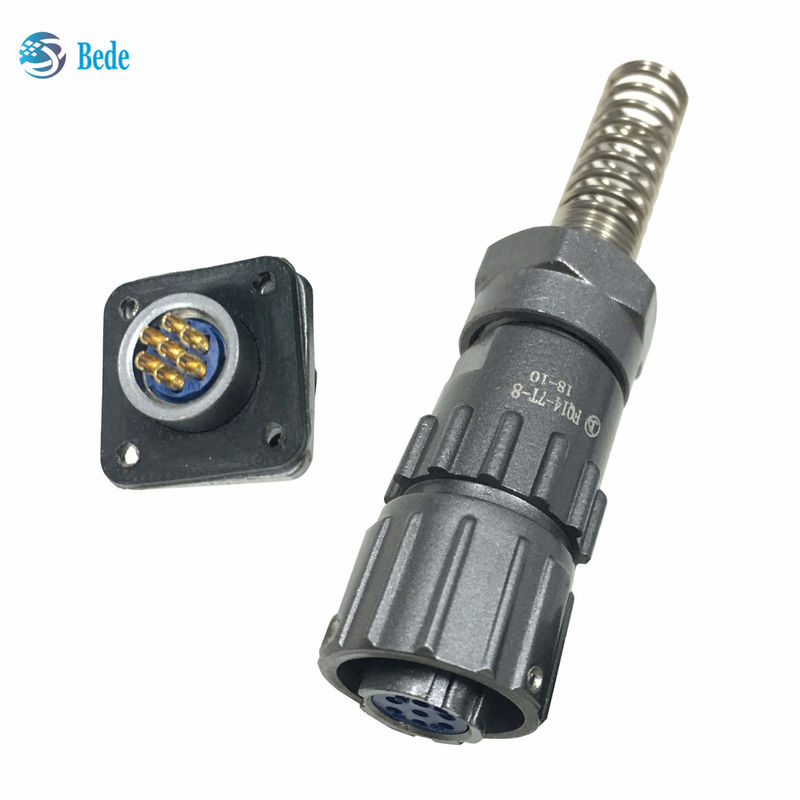

  1. FQ14 Straight wire spring plug

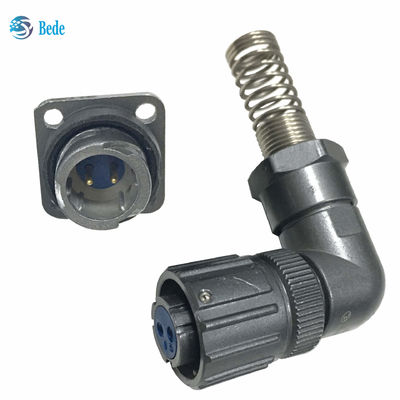

  2. FQ14 Right Angle wire spring plug

  3. Circular Receptacle With Circular

  4.Cable Receptacle With Square Flange

  5. Square Flange Receptacle

How to inquiry and buy

Please tell us the code and quantity as shown in the picture below and we will offer you the best price and services.
