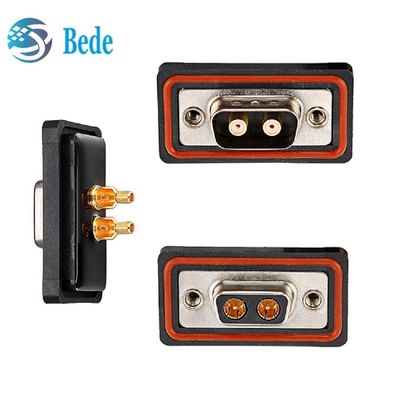

Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68

Large Image : Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE
Model Number:	3W3

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	negotiation
Packaging Details:	PE bag and carton
Delivery Time:	base on quantities
Payment Terms:	T/T, Western Union
Supply Ability:	3000Pcs per day

Contact Now

Detailed Product Description

Connector Style:	D Subminiature	Pins Material:	Brass + Tin Plated +gold Plated
Material:	PA66 / Silicone / Brass	Number Of Rows:	1
Operating Temperatrue:	-55~+125℃	Contact Type:	Solder
Product Type:	RF Connector	Rated Current:	10A 20A 30A 40A Optional
Contact Material:	Copper Alloy	Sealant:	Epoxy Resin
Waterproof:	IP68	Insulator:	PBT With 15% GF
Working Voltage:	300V	High Power Contact Resistance:	2.7 Million Ohms Max.
Dielectric Withstand Voltage:	1000V AC For 1 Minute	Insulation Resistance:	2000 Megohms Min.

Male And Female D Sub 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68

Description

2W2 d sub coaxial cable female and male connector, which made of copper shell, PBT+15%GF insulator, and epoxy resin as sealling material, have a solid body to meet the IP67 protection, with the option of corrosion protection or corrosion resistance, is well suited for outdoor harsh environment applications.

Please refer to the following drawings for dimensions. If more details are needed, please feel free to contact us

Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68 0

How to Buy

We provide this product with different rated currents for different usage scenarios. Please let us know the part number and quantity. We will wholeheartedly provide you with the best products and services.

We offer this connectors with sealed cable and sealed panel mounting options, and both of them can be straight type and right angle type. Please feel free to contact us for more details.

Part number	A	B	Wire Gauge/AWG	Rated current/A
DB3W3-1	2.5	4.5	14~16	10
DB3W3-2	3.6	5.0	10~12	20
DB3W3-3	4.4	5.5	8~10	30
DB3W3-4	5.5	5.5	6~8	40
