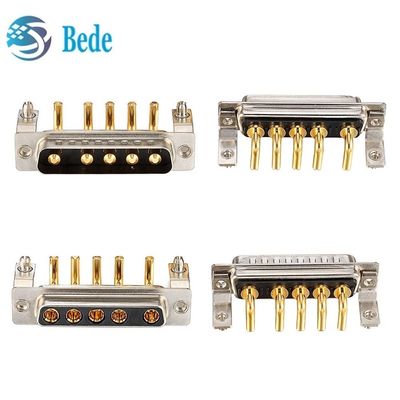

5W5 Male And Female High Current D-Sub Right Angle Connectors for PCB

 5W5 Male And Female High Current D-Sub Right Angle Connectors for PCB

Description

  5W5 male and female high current D-Sub right angle connectors provide a high power connection interface between two devices. Its important functions rely on durable and reliable materials, manufacturing and design. The connector uses nickel-plated brackets, insulators, gold-plated nickel-plated machined brass pins, and is encapsulated in a tin-plated steel housing to ensure the highest operating efficiency in high-intensity and mission-critical applications. It is widely used in Energy, Machine Manufacturing, Medical, Military fields. We also provide 5W5 male and female high current D-Sub connectors with straight pins, please feel free to contact us for more information.

Electrical Characteristics

1. High Power Contact Current Rating: 10, 20, 30, or 40 Amps
2. Working Voltage: 300V
3. High Power Contact Resistance: 10 milliohms maximum
4. Dielectric Withstanding Voltage: 1000 VAC for 1 minute
5. Insulation Resistance: 2000 kOhms minimum
6. Temperature Rating: -55°C to +125°C

How to Buy

  Different power devices may require these connectors with different rated currents. Please select the one that suits your device according to the table below and let us know the part number and quantity. We will contact you as soon as possible. Please note that we do not do retail business. If you need a small quantity, we recommend that you purchase it locally to save on international shipping costs.
