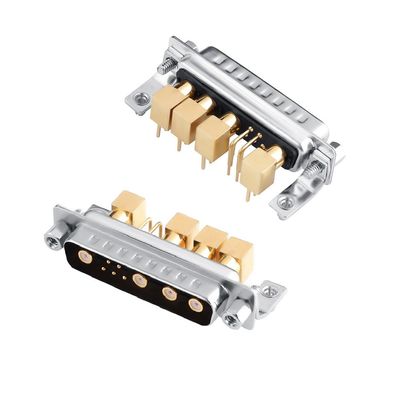

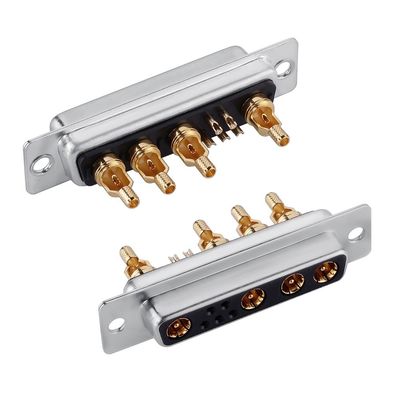

D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB

D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 For PCB

Function and use


   This 9W4 mixed DB connector have 5 power pins and 4 signal pins, used in military, automation, robotics, and other fields

Material and performance

1. All contact pins are machined brass and fully gold-plated, with good conductivity and very low contact resistance
2. Insulator is made of black PBT plastic with 30% glass fiber, fire rating meets UL -94 -V0
3. Shell is made of brass, nickel-plated to provide rust-proof effect and beautiful appearance

Electrical and Mechanical Characteristics

1. High Power Contact Current Rating: 10, 20, 30, or 40 Amps
2. Working Voltage: 300V
3. High Power Contact Resistance: 10 milliohms maximum
4. Dielectric Withstanding Voltage: 1000 VAC for 1 minute
5. Insulation Resistance: 2000 kOhms minimum
6. Temperature Rating: -55°C to +125°C
7. The radio frequency: 0~3GHz
8. Insertion force: 0.2~2 N/pins for the power pins, and 2~7 N/pin for the Radio Frequency Pins
9. Extraction force:  0.2N/pins for the power pins, and 0.5 N/pin for the Radio Frequency Pins
10. Durability:500 cycles

Product size details and PCB hole layout are as shown below
