24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

Large Image : 24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE
Model Number:	7W2 right angle pins

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	negotiation
Packaging Details:	PE bag and carton
Delivery Time:	base on quantities
Payment Terms:	T/T, Western Union
Supply Ability:	4000Pcs per day

Contact Now

Detailed Product Description

Applicable Temperature:	-55~+125℃	Gender:	Male And Female
Connector Type:	D Sub	Working Voltage:	300V
Rated Current:	10A / 20A / 30A / 40A	Connector Style:	D-SUB 7W2
Contact Material:	Copper Alloy Gold Plated	Connector With Signal Contact Material:	Brass Gold Plated
Signal Contacts Current Rating:	3A	Insulator Material:	PBT+30%GF

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

Description

Bede's 24W7 D-Sub connectors redefine space-constrained interconnect solutions through optimized 24-pin hybrid configuration (7 RF coaxial + 17 power contacts). Engineered for mission-critical systems requiring concurrent high-voltage power delivery and precision signal transmission in compact footprints.

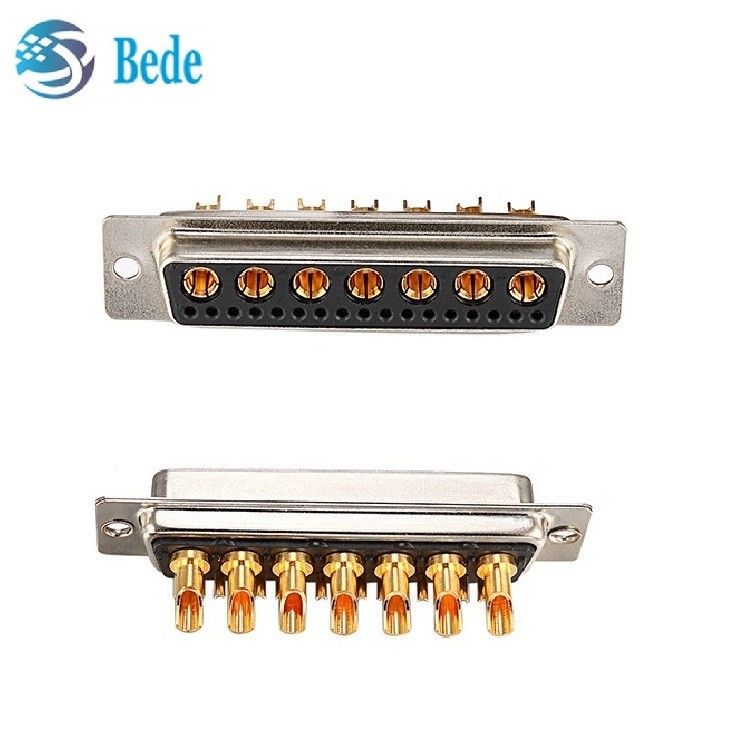

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins 0

Applications:

Telecom Infrastructure: Massive MIMO antenna array power/signal consolidation
Robotics: Cobot servo motor power & feedback signal unification
Energy Storage: BMS multi-cell voltage monitoring interfaces
Aerospace: Avionics LRU module hot-swap connectivity

Technical Specifications

Contact Layout: 24-position (7x coaxial + 17x power)
RF Bandwidth DC - [Insert GHz]
Current Rating: 3A per Single contact,
Current Rating: 10A/ 20A/ 30A/ 40A Optional
Contact resistance:2.7 MΩ Max.
Insulation resistance:2000 megaohms min
Dielectric Withstanding Voltage: 1000V for 1 Min.
Insertion Force: 0.7~2N per single contact
Extraction force: 2N per single contact
Operating Temperature: -55°C to +105°C

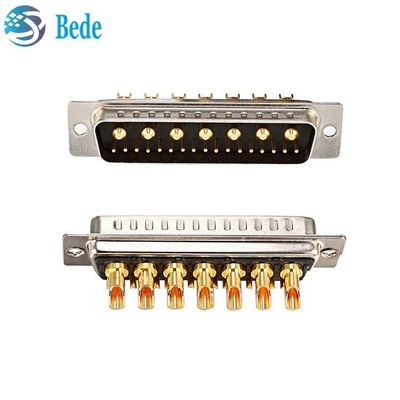

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins 1

Material and finish

Parts	Materials	finish
shell	SPCC-SD	nickel or tin plated
contact pins	Phosphor copper	Gold finish over nickel
Insulator	PBT + 30% GF	UL94V-O)
