1834356 Phoenix Contact 3 Position Cable Housing

Large Image : 1834356 Phoenix Contact 3 Position Cable Housing

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	RoHS
Model Number:	1834356
Document:	18343456.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	negotiation
Delivery Time:	base on quantities
Payment Terms:	T/T,Western Union
Supply Ability:	3000Pcs per day

Contact Now

Detailed Product Description

Series:	MINI COMBICON	Design Type:	Split Shell, Two-piece Snap-together Assembly
Shell Material:	ABS	Temperature Range:	-40°C To +100°C
Number Of Contacts:	3	Color:	Green

1834356 Phoenix Contact 3 Position Cable Housing

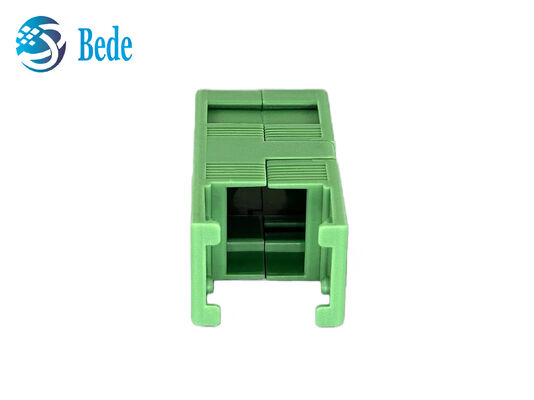

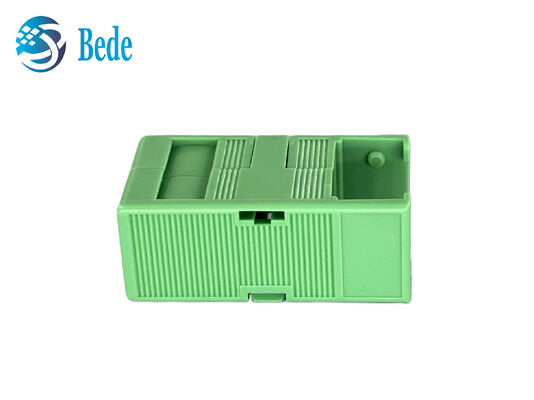

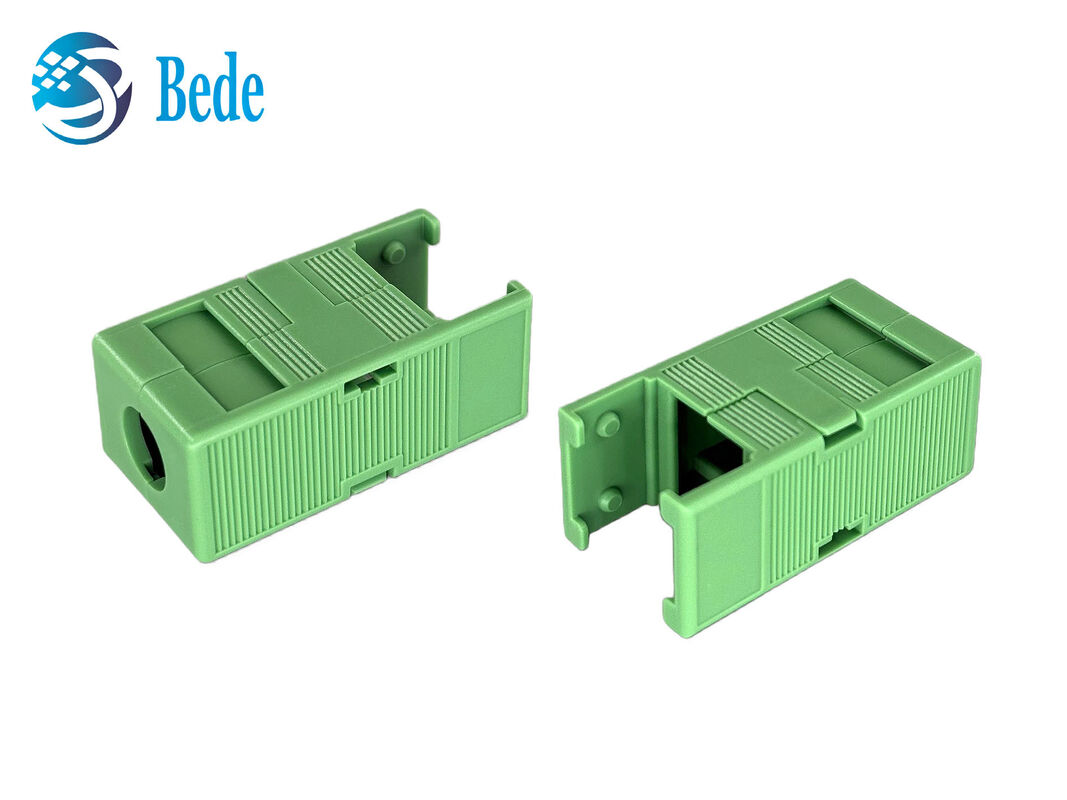

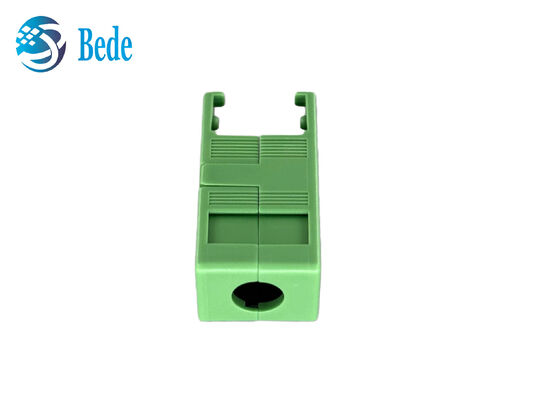

The Phoenix Contact 1834356 (Model: KGG-MC 1,5/ 3) is a 3-position green ABS plastic cable housing designed for the MINI COMBICON series. It serves as a protective shell and strain relief mechanism for 3-pin plugs with a 3.81 mm pitch, delivering robust mechanical protection and highly reliable strain relief for wired connections.

Specifications

Specification	1834356
Product Type	Cable housing
Number of Positions	3
Pitch Spacing	3.81 mm
Cable Outlet Direction	Straight (180° orientation relative to insertion)

Product Features

Full-Enclosure Shielding: Completely wraps around the wire-to-plug connection points, blocking external debris, dust, and accidental finger or tool contact.
Vibration Resistance: Securely anchors incoming cables up to 8.5 mm thick, preventing vibrations or accidental pulling forces from straining the screw terminals or pulling wires loose.

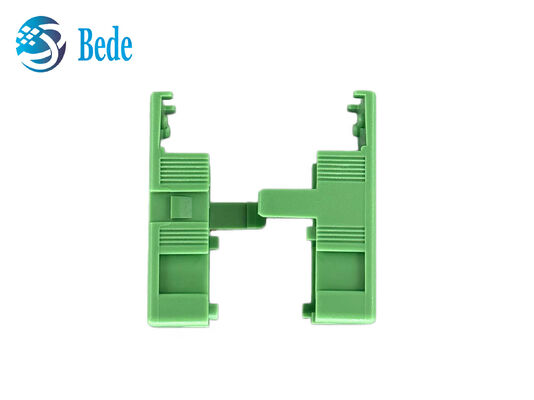

Two-Piece Snap-Lock System: The housing splits symmetrically into two halves. Technicians fully wire and test the connector plug first, then simply snap the housing shut around it—no screws or special tools required.
Impact-Resistant ABS: Constructed from high-grade ABS plastic, which absorbs minor shocks and vibrations typical in demanding industrial environments.

Applications

Industrial Automation & PLC Modules
Material Handling & Conveyor Systems
Fieldbus & Serial Communications

Customization Services

Custom connector plastic parts, such as insulator, nut, housing etc.
Custom connector internal conductors, male and female pins, with silver or gold plating
Custom connector accessories, such as silicone rings and dust covers
