Ip68 M20 2 Pin Waterproof Wire Connectors 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use

Ip68 M20 2 Pin Waterproof Wire Connectors 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use

Brand Name: BEDE
Model Number: EW-M20-2~6P
MOQ: 100pcs
Price: negotiation
Packaging Details: packing with PE bag, 100 pcs per carton
Payment Terms: T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
RoHS
Shell Material:
PA 66
Contact Material:
Nickel Plated Copper
Poles:
2~6 Pin
Rated Voltage:
450V
Rated Current:
2 3 4 Pin 24A,5 6 Pin 16A
Applicable Temperature:
-40 ~ +105℃
Supply Ability:
8000 pcs per day
Highlight:

M20 2 pin waterproof wire connectors

,

M20 ip68 2 pin connector

,

M20 two pin waterproof connector

Product Description

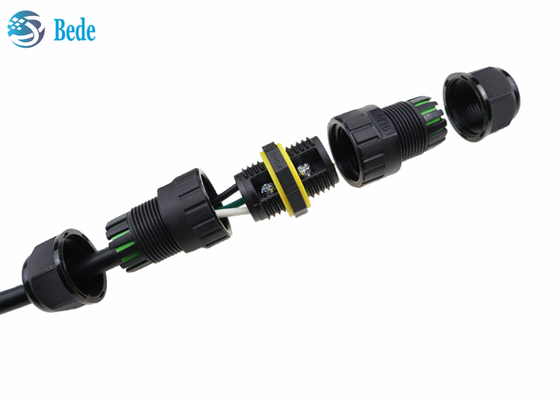

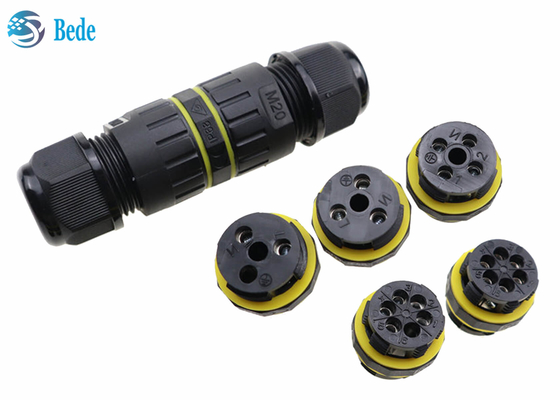

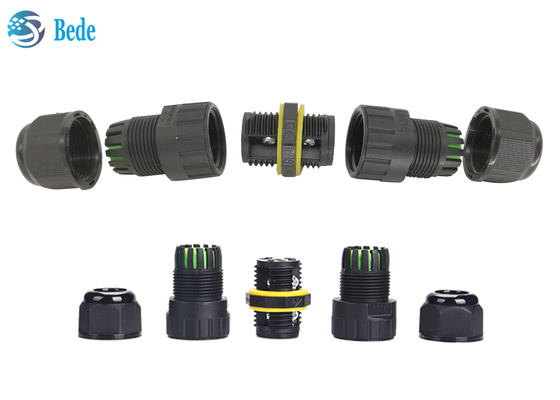

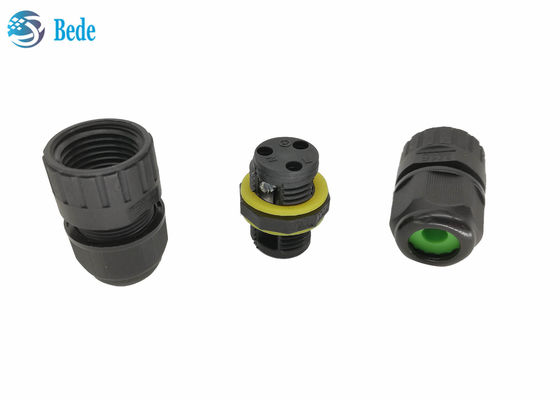

M20 Waterproof Cable Connectors 2 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use



Description

  1. 2 ~ 6 pin plug connector ,5 kinds of terminals or your option
  2. Cable range: 5-9mm or 9-12mm, 2 kinds sealing rings for your option.Ip68 M20 2 Pin Waterproof Wire Connectors 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use 0Ip68 M20 2 Pin Waterproof Wire Connectors 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use 1
  3. Outdoor, underwater, underground suitable, IP68 waterproof
  4. Cold zone, tropical zone, winter, summer are applicable, working temperature -40 ~ +105 ℃Ip68 M20 2 Pin Waterproof Wire Connectors 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use 2

Electrical Data

Rated voltage Rated current Wire Section cable OD
450V 2 3 4 pin 24A 5 6 pins 16A 2 3 4 pin 0.5~2.5mm2 5 6 pins 0.5~1.5mm2 5~9/9~12mm



Ip68 M20 2 Pin Waterproof Wire Connectors 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use 3

Family portrait



All products of M12 2 channels are as follows. M16, M20 are also in stock, contact us or return to the catalog to know more.

Ip68 M20 2 Pin Waterproof Wire Connectors 3 4 5 6 Pins 2 Poles For Outdoor And Underwater Use 4
