IP 68 Waterproof Cable Connectors 3 Pins Output 2~4 Wires Withstand High Voltage And High Current

Brand Name:	BEDE
Model Number:	EW-M25-3T
MOQ:	100pcs
Price:	negotiation
Packaging Details:	packing with PE bag, 100pcs per carton
Payment Terms:	T/T, Western Union, MoneyGram, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS

Supply Ability:

8000pcs per day

Highlight:

CE IP 68 Waterproof Cable Connectors

Waterproof Cable Connectors 3Pins

CE ip68 connector 3 pin

Product Description

Waterproof Cable Connector For Outdoor Use IP68 5 Pins Output 2~4 Wires

Application:

Suitable for outdoor lighting, such as garden lighting and decorative lamps, street lamps.

Suitable for outdoor electronic equipment, such as advertising light box, LED display.
Suitable for lighting fixtures in water, such as musical fountains, aquariums.

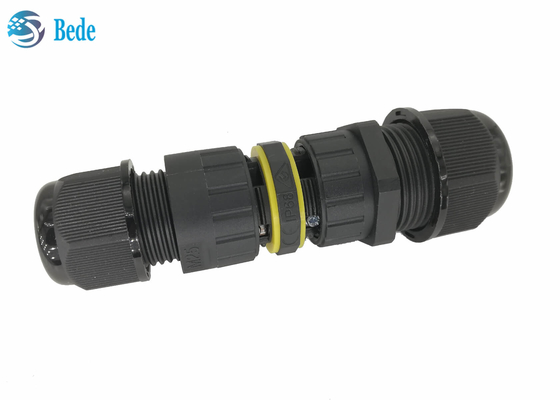

IP 68 Waterproof Cable Connectors 3 Pins Output 2~4 Wires Withstand High Voltage And High Current 0

Material and Electrical data:

housing	crimping post	Sealing ring	screws
PA66, UL 94-V0	brass (Nickel plated)	silicone rubber	Stainless steel

input wire	output wire number	pins	rated voltage	Rated current	terminal wire
5~9, 9~12,10~14mm	1,2,3,4	4	400V	40A	0.5~6.0mm²

IP 68 Waterproof Cable Connectors 3 Pins Output 2~4 Wires Withstand High Voltage And High Current 1

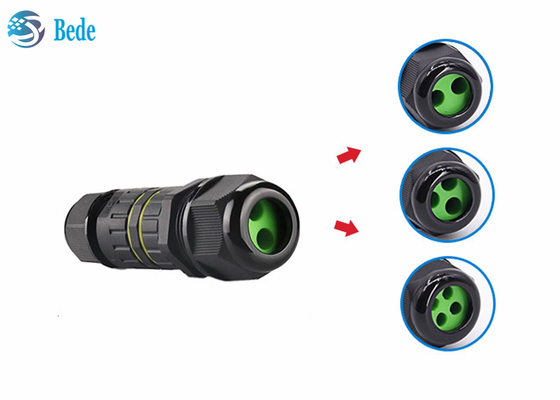

Advantage of this waterproof connectors

3 kinds of sealing rings at the input end to choose from, various diameters of wire can be used
4 kinds of sealing rings at the output end to choose from, corresponding to the output of one wire to 4 wires,
Applicable temperature -40~105 ℃, no matter tropical, frigid, winter, summer, can be used all

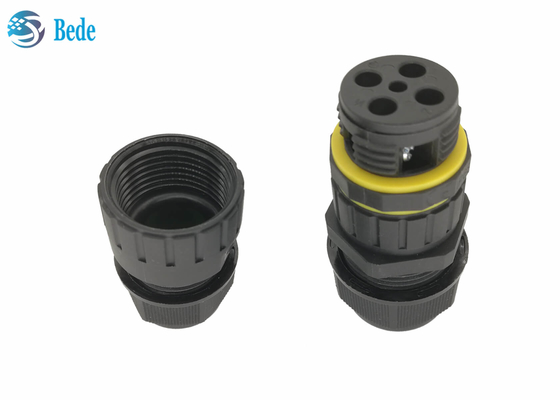

IP 68 Waterproof Cable Connectors 3 Pins Output 2~4 Wires Withstand High Voltage And High Current 2

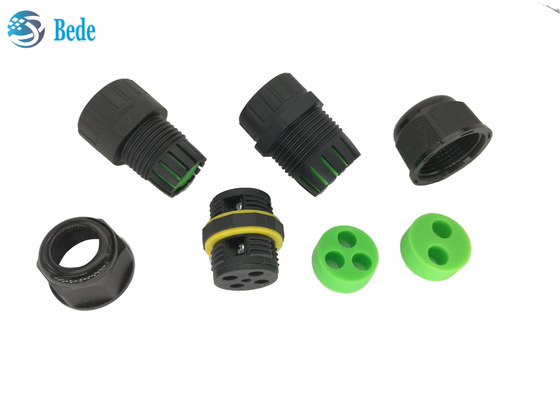

How to use

Unscrew the nut and take out the terminal
Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
Tighten the waterproof nut to complete

IP 68 Waterproof Cable Connectors 3 Pins Output 2~4 Wires Withstand High Voltage And High Current 3
