Waterproof Cable Connectors
>
Y Type Underground Junction Box For 2 Or 3 Or 4 Pin Cables Waterproof And Moisture Proof

Y Type Underground Junction Box For 2 Or 3 Or 4 Pin Cables Waterproof And Moisture Proof

Brand Name: BEDE
Model Number: EW-M25-Y1
MOQ: 100pcs
Price: negotiation
Packaging Details: packing with PE bag, 50pcs per carton
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Supply Ability:
8000pcs per day
Highlight:

Y Type Underground Junction Box

,

4Pin Cables Underground Junction Box

Product Description

Y Type Underground Junction Box For 2 or 3 or 4-Pin Cables Waterproof and Moisture Proof



Description

  1.  This Y Type waterproof connector is a outdoor junction box, can be used to repair and extend power cables, 3 Channels, 1 input and 2 outputs

  2.  Specification: Voltages of 450V, Rated current 16A, Work temperature: -40℃ ± 105℃

  3.  Choose from different sizes of silicone rings, suitable for different wires: 4-8mm /5-9mm /9-12mm,

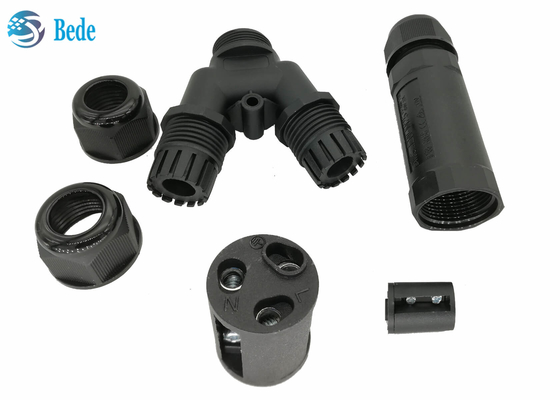

   Y Type Underground Junction Box For 2 Or 3 Or 4 Pin Cables Waterproof And Moisture Proof 0

  4. 5 kinds of terminals can be selected, suitable for 2 pins, 3 pins, 4 pins, 5 pins cable; about 2 and 3pins, screwless terminal blocks are recommended for faster replacement

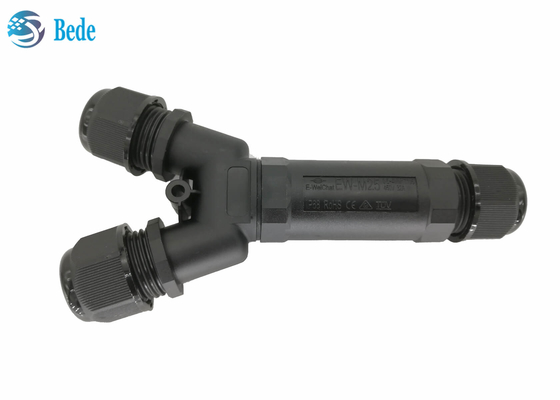

Y Type Underground Junction Box For 2 Or 3 Or 4 Pin Cables Waterproof And Moisture Proof 1



  5.Wide Usability :Suitable for fast connection to the outdoor lighting, underfloor heating, beacon, watering cart, solar photovaltaic, cruise, etc. Can be used to repair and extend power cables. Further applications in coastal, river, sea or underwater engineering, underground engineering, mining engineering, solar-wind power, solar water heaters, various machinery and equipment

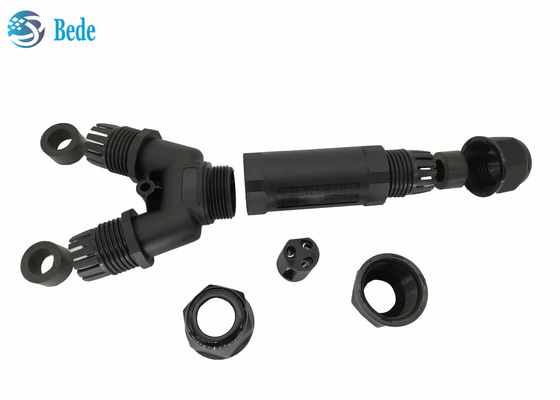

Y Type Underground Junction Box For 2 Or 3 Or 4 Pin Cables Waterproof And Moisture Proof 2



Material

  1. The casing is made of nylon PA66 and flame retardant rating UL94-V0
  2. The inner conductor is cooper core, filling for better abrasion resistance and electronic conductivity;
  3. The sealing ring material is nitrile rubber

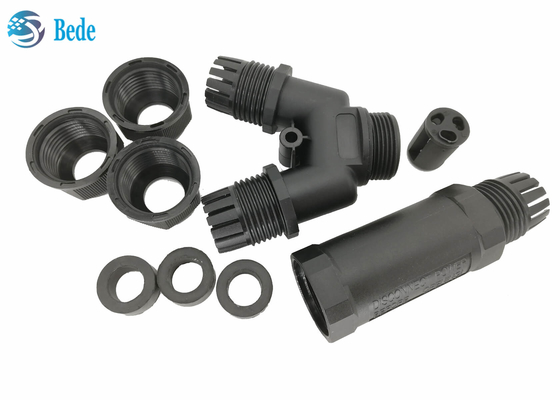

Y Type Underground Junction Box For 2 Or 3 Or 4 Pin Cables Waterproof And Moisture Proof 3







How to use



  1. Unscrew the nut and take out the terminal
  2. Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
  3. Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
  4. Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
  5. Tighten the waterproof nut to complete
  6. learn how to wiring from our YouTube:  https://youtu.be/cJ9dcrRI74cY Type Underground Junction Box For 2 Or 3 Or 4 Pin Cables Waterproof And Moisture Proof 4
