lever, PA66 materials, flame retardant UL94-v2
main bady, PC polycarbonate materials, flame retardant UL94-v2
Fixing hole for screw M3
Wiring hole for 0.2~4.0mm² / 20~12AWG
conductor, zinc-plated copper for good electrical conductivity and rust resistance

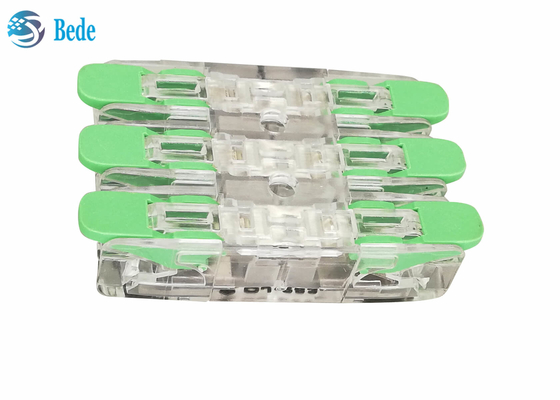

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V 0

Description

Quick wiring, replacing traditional insulating tape, no screws, no screwdriver,
3 input and 3 output , easy to use
Both soft and hard wires can be used, applicable for 20~12AWG
Flame retardant material, safe, prevent high temperature short circuit
Easy to replace and save time in modifying the circuit
Rated Voltage : 450V; Rated current: 32A
Size: 45*28*10mm
Weight: 9.7 gram each,

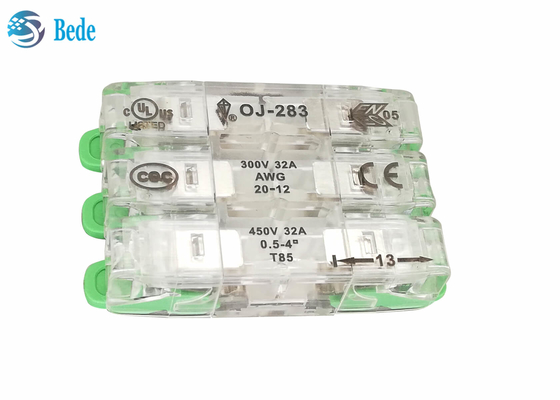

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V 1

How to Use

Strip the sheath of the wire 13mm
Lift the lever up and insert the wire into the corresponding hole
Press the lever down
Follow above steps insert the wires one by one, done

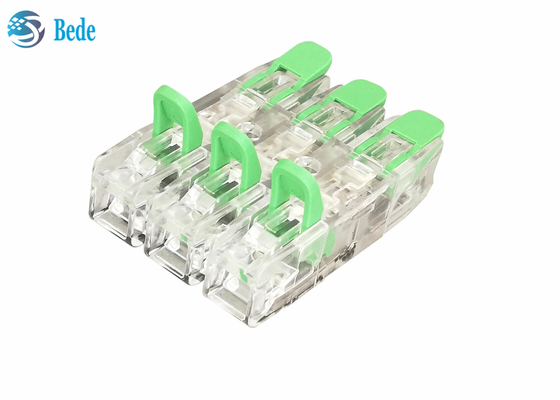

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V 2

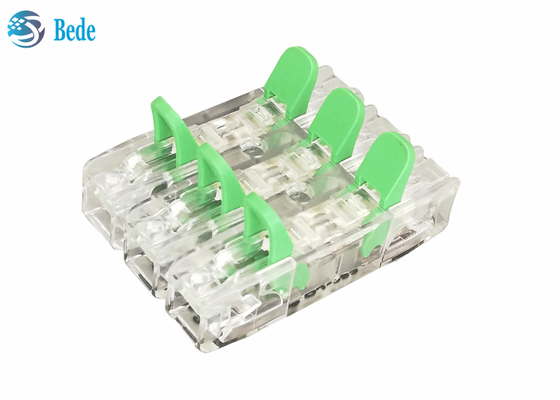

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V 3

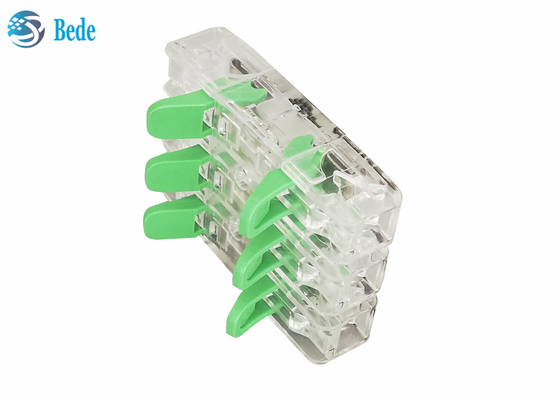

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V 4

family members

1 way , 1 way in stock also, please contact us directly or back to catalog to know more

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V 6

Tags:

quick connection terminal

Push In Quick Terminal Block

push in terminal block wire connector

Products Details

Home > Products >

Quick Terminal Block

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V

All Category

Gx12 Aviation Connector

Gx16 Aviation Connector

Industrial Plug Socket

AISG Cables

RET Cables

Waterproof Cable Connectors

Waterproof Junction Box

Gx20 Connector

Aviation Connector Plug

Quick Terminal Block

D Sub Connectors

HDMI Coupler

Circular Connectors

Universal Wire And Cable Quick Wire Connector PA66 3 Input 3 Output 450V

Brand Name:	BEDE
Model Number:	OJ283
MOQ:	800pcs
Price:	negotistion
Packaging Details:	PE bag
Payment Terms:	T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

BEDE

Certification:

CE RoHS

Model Number:

OJ283

Voltage:

450V

Current:

32A

Size:

45*28*10mm

Weight:

9.7 Gram

Minimum Order Quantity:

800pcs

Price:

negotistion

Packaging Details:

PE bag

Delivery Time:

3 days after payment

Payment Terms:

T/T, Western Union, MoneyGram,Paypal

Supply Ability:

20000 pcs per day

Highlight:

quick wire connector 3 output 450V

quick wire connector PA66

quick connect wire connectors PA66
