2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block

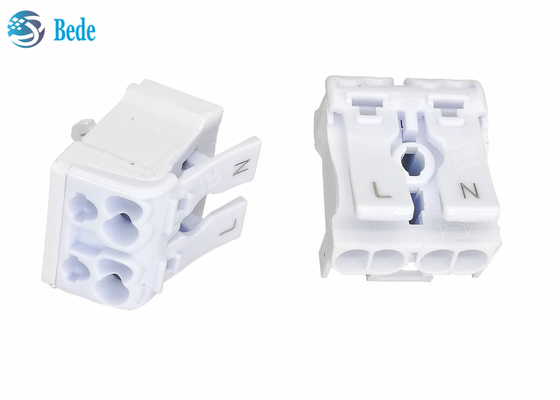

Large Image : 2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	OJ-821

Payment & Shipping Terms:

Minimum Order Quantity:	800pcs
Price:	negotistion
Packaging Details:	PE bag
Delivery Time:	3 days after payment
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	20000 pcs per day

Contact Now

Detailed Product Description

Voltage:

Current:

Size:

24*25.5*18mm

Color:

White

Highlight:

Quick Terminal Block PA66

Quick Terminal Block 24A

450V push in connector block

2 Poles Push-In Wire Connector Quick Terminal Blocks Lever Nuts 450V 24A

Description

Fast wiring and disconnecting,
The main plastic is PA66 with flame retardant grade UL94-V2
Contact material is nickel plated copper, rust-proof and good electrical conductivity

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 0

Quick details

poles number	rated voltage	reted current	wire range	color
2	450V	24A	20~14 AWG	white

How to Use

1. Strip the insulation layer of the cable 8~10mm

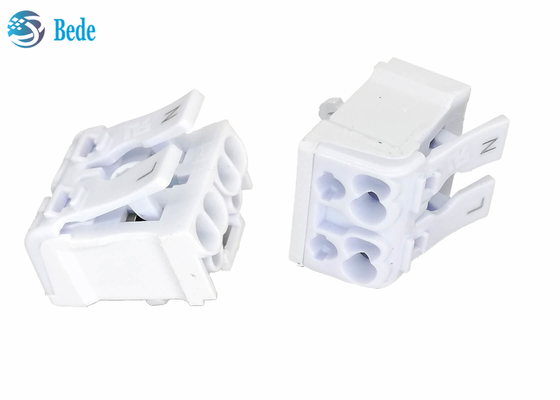

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 1

2.insert the live wire, nature wire and earth wire into the corresponding holes

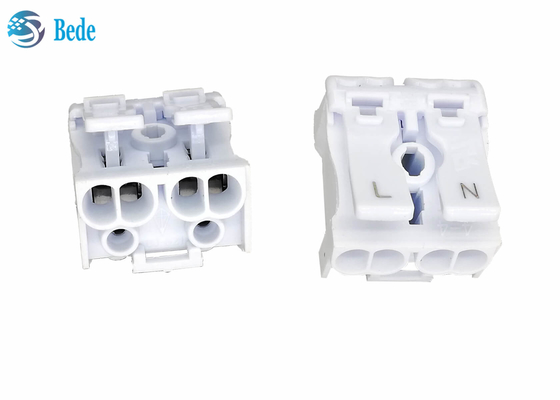

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 2

3. release wire: press the button down and pull the wire off; press the hole on another end with an electrical pen or other tool and pull the wire off

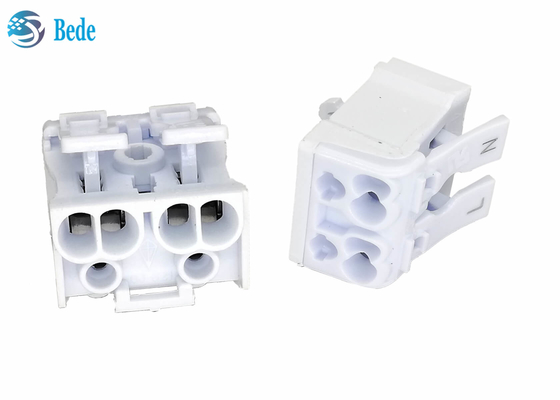

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 3

4. about the wiring hole as follow picture.

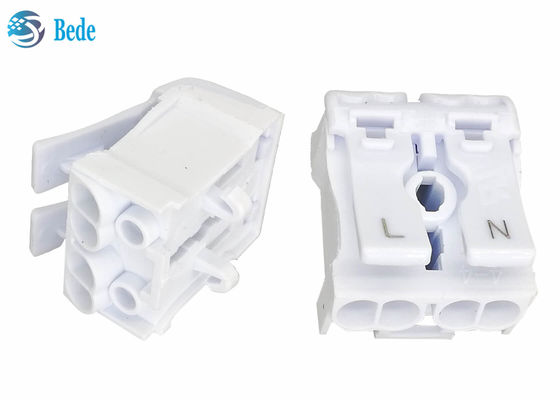

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 4

family members

3 way , 4way and 5 way in stock also, please contact us directly or back to catalog to know more

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 5
