AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU

AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU

Brand Name: BEDE
Model Number: RET-8-M-F-0.5
MOQ: 100
Price: negotiation
Packaging Details: packing with PE bag each, 20pcs pre carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
AISG, RoHS
Color:
Black
Length:
0.5meter
IP Rating:
IP67
Compliant:
AISG C-485
Conductors:
8 Pins
Wire Diameter:
8mm
Supply Ability:
2000 pcs per day
Highlight:

AISG Female ret control cable

,

ret control cable 0.5M

,

MCU To RCU ret control cable

Product Description

RET Control Cables AISG Male To AISG Female 0.5M Length 6 Conductors MCU To RCU



Description:

    Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. This RET Cables provide a direct connect option from the Master Control Unit (MCU) to a RET module, feed data and power from controller to RET System. These cables are offered in a variety of lengths, with the shorter lengths being available to “daisy chain” multiple RET modules together at the top of the antenna base station.

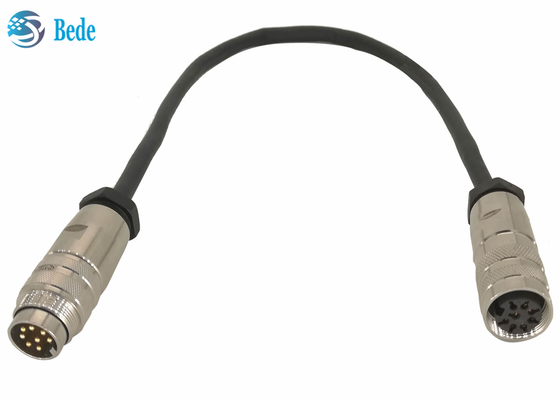

AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU 0



Quick details:

  1. Length: 0.5 meter, customized available,
  2. Protocol: AISG 1.1 | AISG 2.0
  3. AISG Connector: 8-pin DIN Female / Male
  4. AISG Connector Standard: IEC 60130-9
  5. Insulation resistance: ≥5MΩ
  6. Contact resistance: ≤5mΩ
  7. Connector Interfaces:Terminated AISG 8‐pin socket screw lock male and female



About the cable:

  • 4 x 0.75mm2(20 AWG) stranded (power) 2 x 0.25mm2(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
  • 4 x 0.41mm2(21AWG) stranded (power) 2 x 0.21mm2 (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
  • The above two wire sizes for your opinion
  • The outer jacket is available in two materials for your opinion, PU or PVC
  • Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%

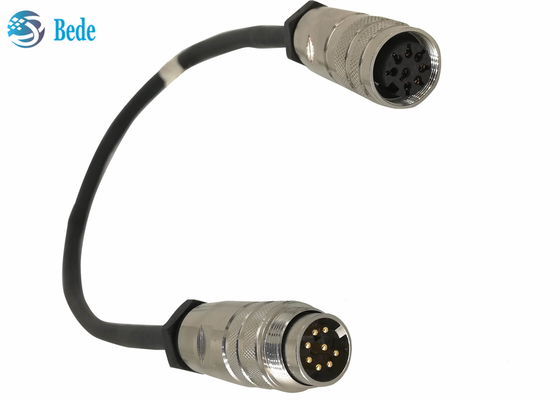

AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU 1



Applications:

  • Remote Electrical Tilt (RET) applications
  • AISG compliant antenna control units
  • Tower mount amplifiers with AISG interface
  • Control Network interfaces with AISG interface

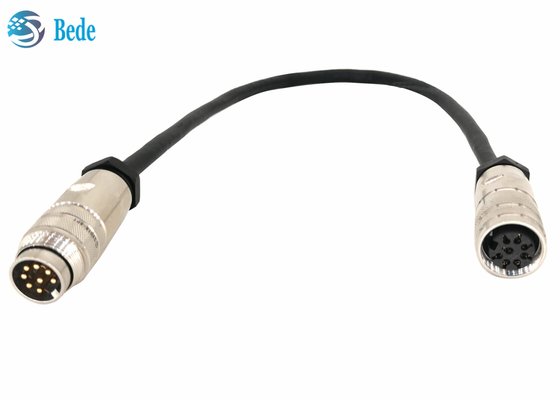

AISG Male To AISG Female Ret Control Cable 0.5M Length 8 Conductors MCU To RCU 2
