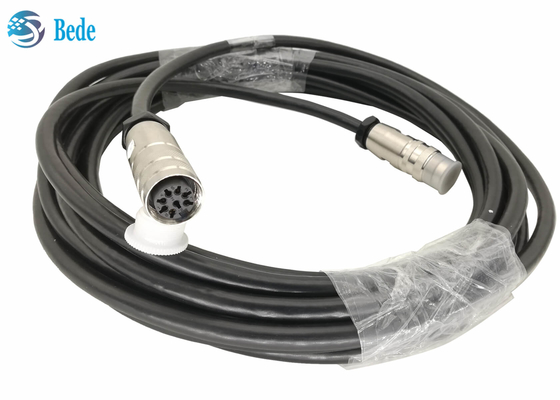

Male To Female RET Cables 10 Meter Length 8 Conductors MCU To RCU IP67
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | AISG, RoHS |
| Model Number | RET-8-M-F-10 |
| Minimum Order Quantity | 100 |
| Price | negotiation |
| Packaging Details | packing with PE bag each, 20pcs pre carton |
| Delivery Time | within 48 hours after payment |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 2000 pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Black | Length | 10 Meter, Customized Available, |
|---|---|---|---|
| IP Rating | IP67 | Compliant | AISG C-485 |
| Conductors | 8 Pins | Cable Diameter | 7mm |
| Rated Voltage | 300V | Operating Temperature | -40℃ ~ +85℃ |
| High Light | MCU To RCU RET Cables,RET Cables IP 67,RET Cable IP67 |
||
Product Description
Male To Female RET Cables 10 Meter Length 8 Conductors MCU To RCU
Description:
Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. This RET Cables are manufactured according to the AISG Standard (AISG C 485), used for feeding signal and power from the controller to the Remote Control Unit (RCU). The fully integrated cable assembly has an 8 pin layout, with 4, 5 or 6 loaded contacts.
Quick details:
| AISG Connector | length | Voltage | Insulation resistance | Contact resistance |
| 8 pin, male to female | 10m | 300V | ≥5MΩ | ≤0.005Ω |
Features:
1. 720 h salt spray resistance
2. IP68 protection without tape
3. EMC with 30 db
4. Extreme temperature resistance -40℃ ~ +80 ℃
5. Vibration resistance
6. AISG C-485 compliant

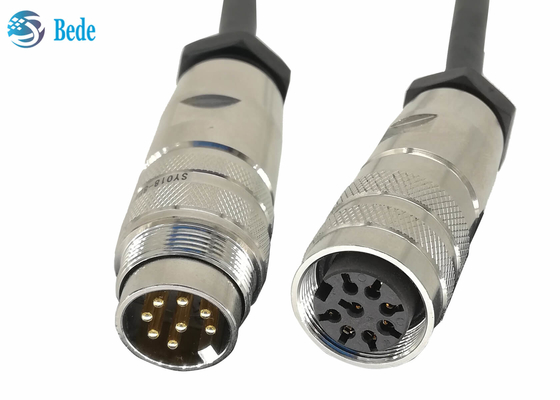

7. 8 pin layout (4, 5 or 6 contacts loaded)

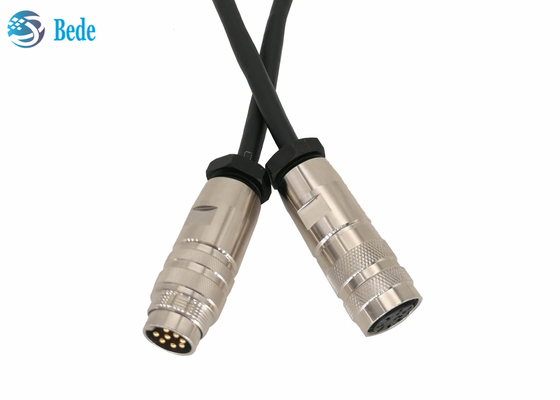

8. Terminated with male / female connectors
9. Socket screw lock coupling system
About the wire:
- 4 x 0.75mm2(20 AWG) stranded (power) 2 x 0.25mm2(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
- 4 x 0.41mm2(21AWG) stranded (power) 2 x 0.21mm2 (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
- The above two cable sizes for your opinion
- The outer jacket is available in two materials for your opinion, PU or PVC
- Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%
Applications:
- Remote Electrical Tilt (RET) System Applications or Remote Control Unit (RCU)
- Antenna Control Unit for AISG Compliant Systems
- Tower Mounted or Masthead Amplifiers with AISG Interface (TMA)
- Network Control with Integrated AISG Interface
- Antenna Base Stations
