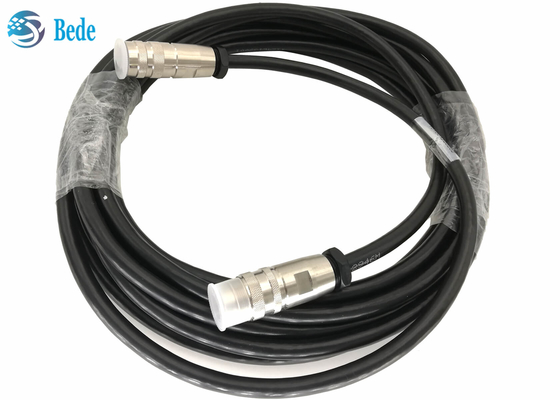

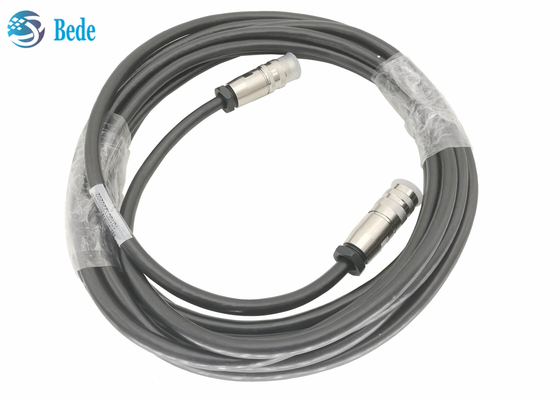

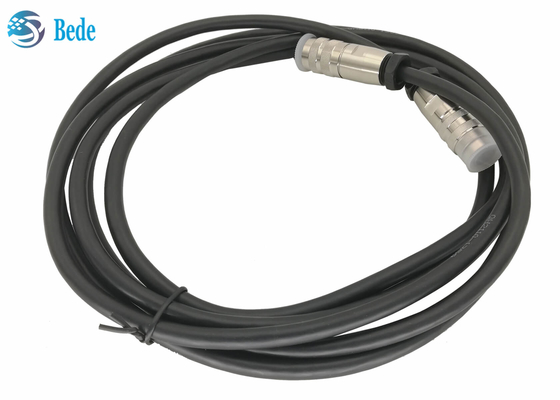

RET Cable Assembly 6 Meter 8 Pins AISG Male To Female For Antenna Base Stations
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | AISG, RoHS |
| Model Number | RET-8-M-F-6 |
| Minimum Order Quantity | 50 pcs |
| Price | negotiation |
| Packaging Details | packing with PE bag each, 20pcs pre carton |
| Delivery Time | within 48 hours after payment |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 1500 pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Style | AISG C091 | Color | Black |
|---|---|---|---|
| Length | 6 Meter, Customized Available, | Compliant | AISG C-485 |
| Conductors | 8 Pins | Cable Diameter | 6.7mm |
| Rated Voltage | 300V | Operating Temperature | -40℃ ~ +85℃ |
| High Light | RET Cable Assembly,RET Cable 6Meter,8Pins aisg ret cable |
||
Product Description
RET Cable Assembly 6 Meter 8 Pins AISG Male To Female For Antenna Base Stations
Description:
Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. The RET Cables is generally used on the base station antenna, making remote adjustments to the angle of the antenna. It consists of two AISG connectors with IP67 degree, one type of male end and another type of female end, connected by an RVVP cable. The regular type of the two connectors is 5pin 6pin and 8 pins, the cable length can be decided by requests.
This RET control cable is 8 pins 6 meters length. Of course, the length can be customized, it is also feasible to buy only connectors or cables, please do not hesitate to contact our sales staff.
Applications:
- Remote Electrical Tilt (RET) System Applications or Remote Control Unit (RCU)
- Antenna Control Unit for AISG Compliant Systems
- Tower Mounted or Masthead Amplifiers with AISG Interface (TMA)
- Network Control with Integrated AISG Interface
- Antenna Base Stations
Quick details:
| AISG Connector | length | Voltage | Insulation resistance | Contact resistance |
| 8 pin, AISG female to male | 6m | 300V | ≥5MΩ | ≤5mΩ |
Features:
1. 720 h salt spray resistance
2. IP68 protection without tape
3. EMC with 30 db
4. Extreme temperature resistance -40℃ ~ +80 ℃
5. Vibration resistance
6. AISG C-485 compliant
7. 8 pin layout (4, 5 or 6 contacts loaded)
8. Terminated with male / female connectors
9. Socket screw lock coupling system
About the wire:
- 4 x 0.75mm2(20 AWG) stranded (power) 2 x 0.25mm2(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
- 4 x 0.41mm2(21AWG) stranded (power) 2 x 0.21mm2 (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
- The above two cable sizes for your opinion
- The outer jacket is available in two materials for your opinion, PU or PVC
- Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%
