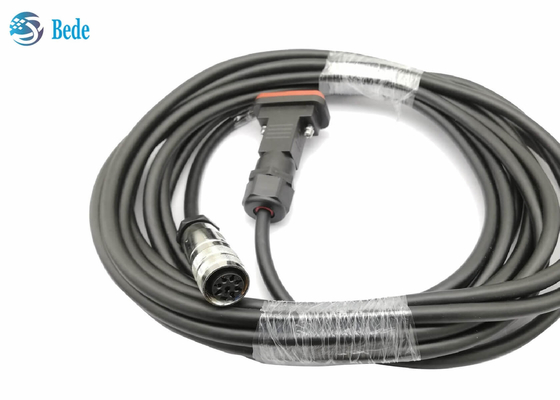

DB-9 Male And AISG Cables 8 Pin Female Connectors 50 Meter Or Customize Length

Large Image : DB-9 Male And AISG Cables 8 Pin Female Connectors 50 Meter Or Customize Length

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	DB9-8-50

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiate
Packaging Details:	packing with PE bag, 30pcs per carton, 15kgs per carton
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	8000 pcs per week

Contact Now

Detailed Product Description

Length:	50 Meters	Standard Resistance:	≤0.005Ω
Insulation Resistance:	≥5MΩ	Operating Voltage:	AC 250V
Operating Temperature:	-40℃ +85℃	Water Proof:	IP68
Highlight:	DB-9 AISG Cables Connectors , AISG Cables 50 Meter , 8 Pin Female aisg connectors

AISG Cables With DB-9 Male And AISG 8 Pin Female Connectors 50 Meter Or Customize Length

Description

Directly connects RCU (Remote Control Unit) with RRU (Remote Radio Units) with this AISG cables, feeds data and power to RET(Remote Electrical Tilt) system components. Its widely used in 3G,4G and 5G networks, especially suitable for 3G,4G and 5G ESC antennas, tower amplifiers and base station equipment.

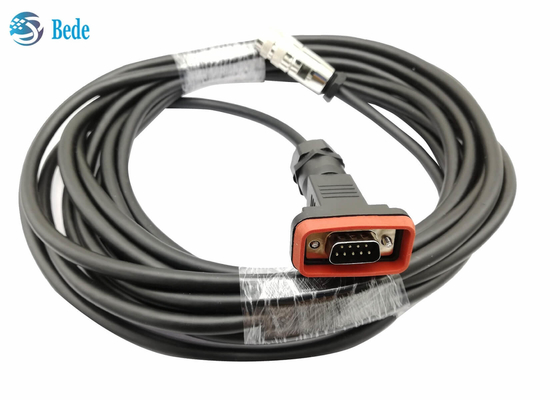

DB-9 Male And AISG Cables 8 Pin Female Connectors 50 Meter Or Customize Length 0

Advantages

Suitable for complex environments with antenna base stations, -40°C ~ +85°C
UV resistant, suitable for long-term outdoor environments
Fireproof, flame retardant grade conforms to UL94-V0
High-quality connectors, mating life is more than 500 times
No abnormal phenomenon in the salt spray test 168H
The length can be customized to meet the different requirements of buyers

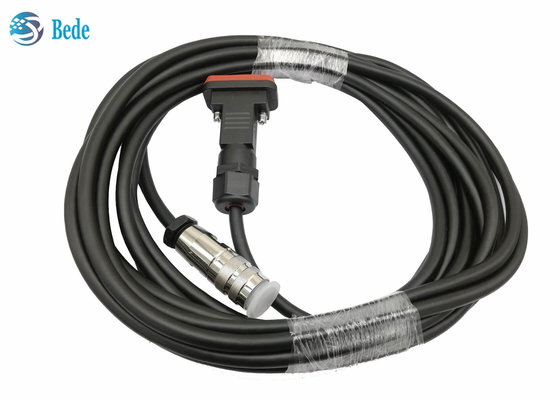

DB-9 Male And AISG Cables 8 Pin Female Connectors 50 Meter Or Customize Length 1

Electrical Characteristics

Withstand voltage: 850V
Contact impedance: <5mΩ
Insulation resistance: 500MΩ
Rated voltage: 300V

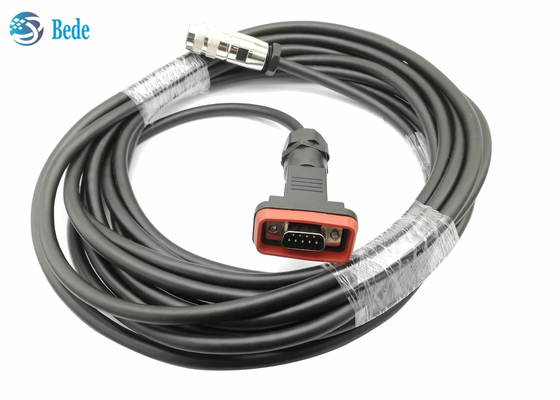

DB-9 Male And AISG Cables 8 Pin Female Connectors 50 Meter Or Customize Length 2
