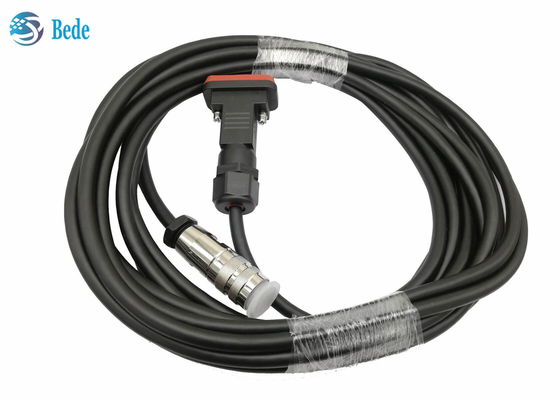

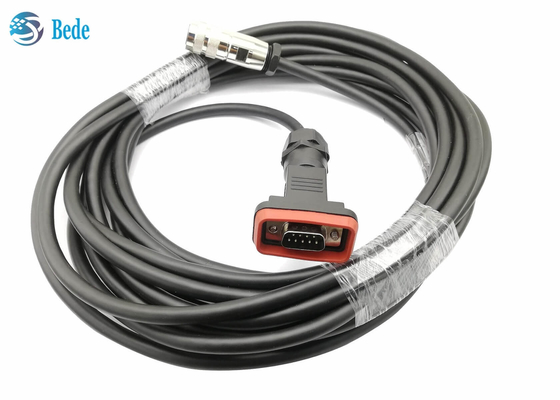

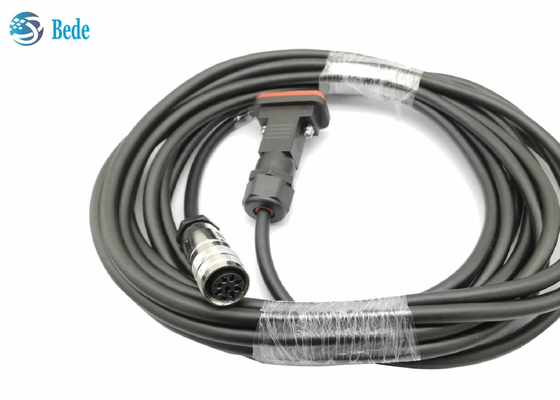

RRU To RCU AISG Cables DB-9 Male To AISG 8 Pin Female 20M / Customized Length

RRU To RCU AISG Cables D-Sub 9 Pin Male To AISG 8 Pin Female 20M / Customized Length

Description

   Directly connects RCU (Remote Control Unit) with RRU (Remote Radio Units) with this AISG cables, feeds data and power to RET(Remote Electrical Tilt) system components.  Its widely used in 3G,4G and 5G networks, especially suitable for 3G,4G and 5G ESC antennas, tower amplifiers and base station equipment.

Advantages

• Suitable for complex environments with antenna base stations, -40°C ~ +85°C
• UV resistant, suitable for long-term outdoor environments
• Flame retardant grade conforms to UL94-V0
• High-quality connectors, mating life is more than 500 times
• No abnormal phenomenon in the salt spray test 168H
• The length can be customized to meet the different requirements of buyers

About the cable:

1. The general cable parameters are as shown in the picture below, it is 3 x 0.75mm2(20 AWG) stranded (power) 2 x 0.25mm2(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
2. we also provide another low-standard cable to reduce the cost: 3 x 0.41mm2(21AWG) stranded (power) 2 x 0.21mm2 (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
3. about the outer jecket of the cable, there are PU or PVC materials for your opinion, the performance of PU is better and the price of PVC is lower

Electrical Characteristics

1. Withstand voltage: 850V
2. Contact impedance: <5mΩ
3. Insulation resistance: 500MΩ
4. Rated voltage: 300V
