AISG C485 Style A1 Connector Assembly Male End 5 Pins M16

AISG C485 Style A1 Connector Assembly Male End 5 Pins M16

Brand Name: BEDE
Model Number: C485 Style A1
MOQ: 1000
Price: Negotiate
Packaging Details: packing with PE bag, 10pcs per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Housing:
Brass, Nickel Plated
Insulator:
PBT Plastic
O-ring:
Silicone
Gauges:
Brass, Gold Plated, Welding Type
Supply Ability:
1500 pcs per day
Highlight:

AISG connector 5Pins

,

C485 AISG Cables connector

Product Description

AISG C485 Style A1 Connector Assembly Male End 5 Pins M16 Circular Connectors



Description

  • Connector assemblies for AISG cable, RET cable, AISG jumper cable, AISG control cable
  • Produced according to AISG C485, style A1 connector assembly,
  • male end, 5 pins,
  • mounting thread: M16
  • Pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a.

AISG C485 Style A1 Connector Assembly Male End 5 Pins M16 0

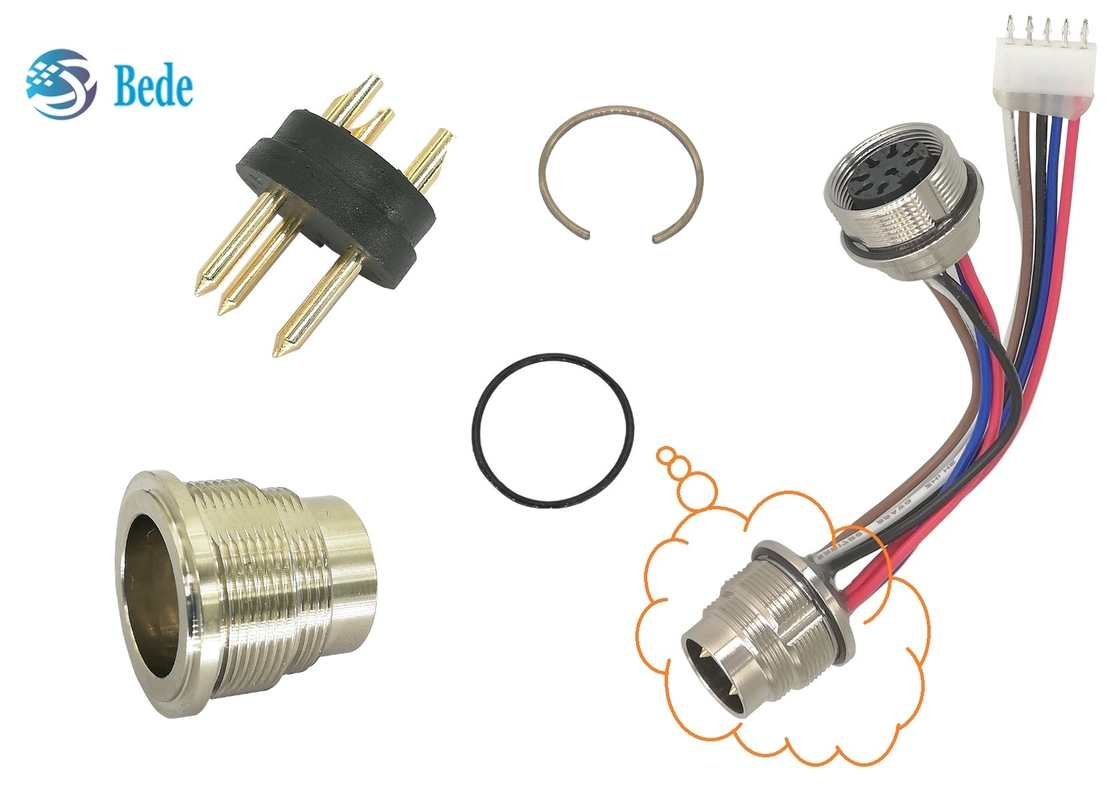

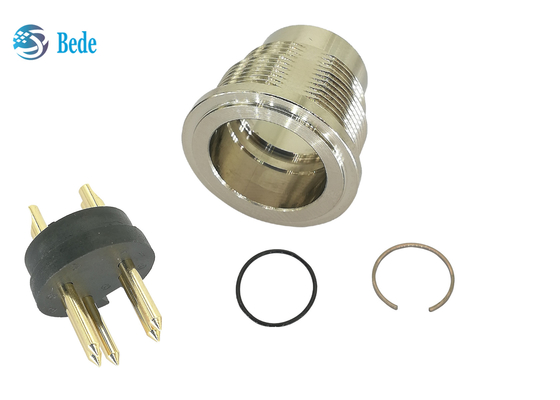

All components

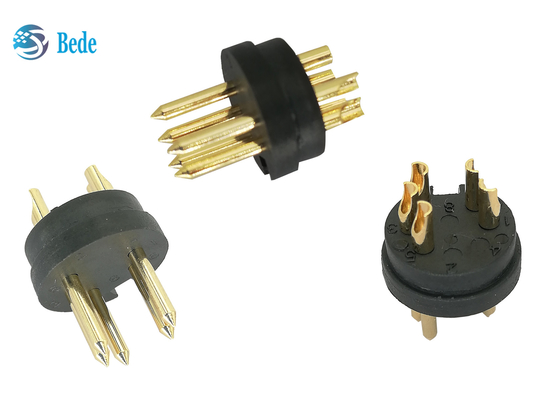

1. Insulator, PBT plastic, housing of gauges

2. Gauges / Contactor, copper materials, gold plated, good electrical conductivity and low contact resistance

3.Spring ring, used for fixing the insulator

4.O-rings, Silicone material, for waterproof sealing,

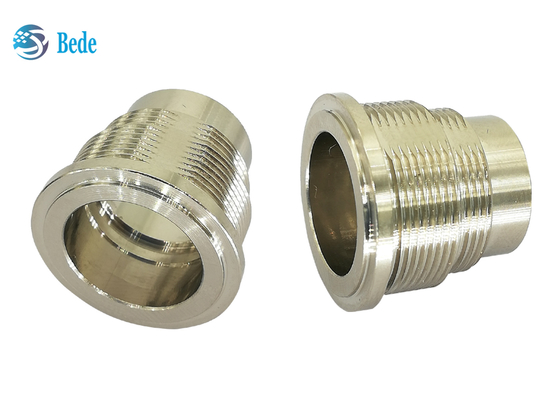

5.Housing, material copper, nickel plated







AISG C485 Style A1 Connector Assembly Male End 5 Pins M16 1
