C485 Style A3 AISG Connector Assembly Female End 8 Pins 5 Gold Plated Connector

Large Image : C485 Style A3 AISG Connector Assembly Female End 8 Pins 5 Gold Plated Connector

Product Details:

Place of Origin:	China
Brand Name:	BEDE
Certification:	CE RoHS
Model Number:	C485 Style A3

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiate
Packaging Details:	packing with PE bag, 10pcs per carton
Delivery Time:	within 3 days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1500 pcs per day

Contact Now

Detailed Product Description

Housing:	Brass, Nickel Plated	Insulator:	PBT Resin
O-ring:	Silicone Rubber	Gauges:	Phosphor Bronze, Gold Plated,
Applicable Temperature:	-40℃ ~ 80 ℃	Insulation Resistance:	≥5MΩ
Highlight:	C485 aisg connector , A3 aisg connector , C485 Style aisg connector

C485 Style A3 AISG Connector Assembly Female End 8 Pins 5 Gold Plated Connector

Description

Connector assemblies for AISG cable, RET cable, AISG jumper cable, AISG control cable,or other industrial control equipment
Produced according to AISG C485, style A3 connector assembly,
Female end, 5 pins. Female pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a. The female pins 2, 4 and 8 are not in use for AISG applications, but it must be ensured that fully loaded male connectors according DIN EN 61076-2-106:2012-04 variant 08-a are pluggable.
mounting thread: M18
waterproof: IP68
Insulation resistance: ≥5MΩ

C485 Style A3 AISG Connector Assembly Female End 8 Pins 5 Gold Plated Connector 0

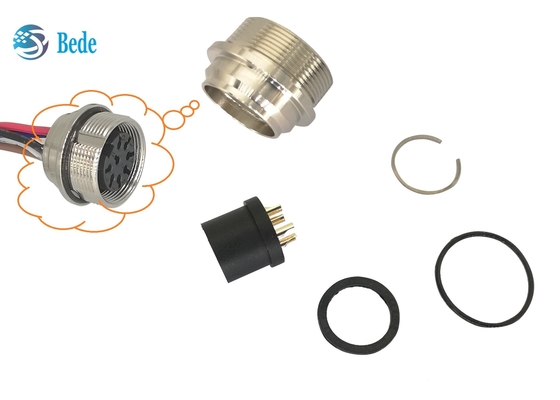

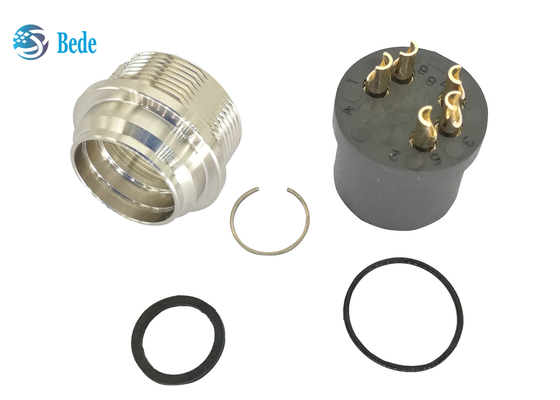

All components

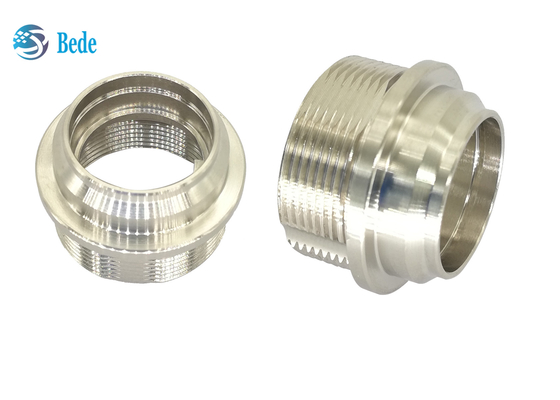

1.Housing, material copper, nickel plated

2.Spring-ring, for fixing insulators

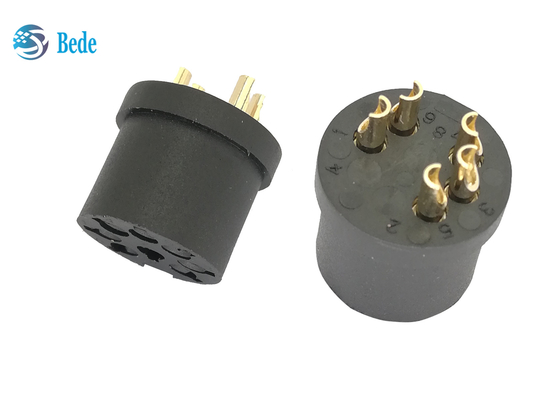

3. Insulator, PBT plastic, housing of gauges

4. Gauges, Phosphor Bronze materials, gold plated, good electrical conductivity and low contact resistance

5.O-rings, Silicone material, for waterproof sealing,

C485 Style A3 AISG Connector Assembly Female End 8 Pins 5 Gold Plated Connector 1
